12 - Ducts, Vents & Floors - 12.3 - Rear Ducts & Vents

McLaren 570S Coupe

Find Your Part

McLaren 570S Coupe - 12 - DUCTS, VENTS & FLOORS - 12.3 - REAR DUCTS & VENTS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13A5483CP GRILLE - WHEEL ARCH LINER - REAR - LH $221.54 To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RB104 Spire Clip - M6 - Raymond - 203909 Enquire To Order
Photo Part No Description Price (each) Stock
13A5485CP GRILLE - WHEEL ARCH LINER - REAR - RH $221.54 To Order
Photo Part No Description Price (each) Stock
13A6977CP DUCT - WHEEL ARCH - REAR - LH $261.81 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
13A6979CP DUCT - WHEEL ARCH - REAR - RH $261.81 To Order

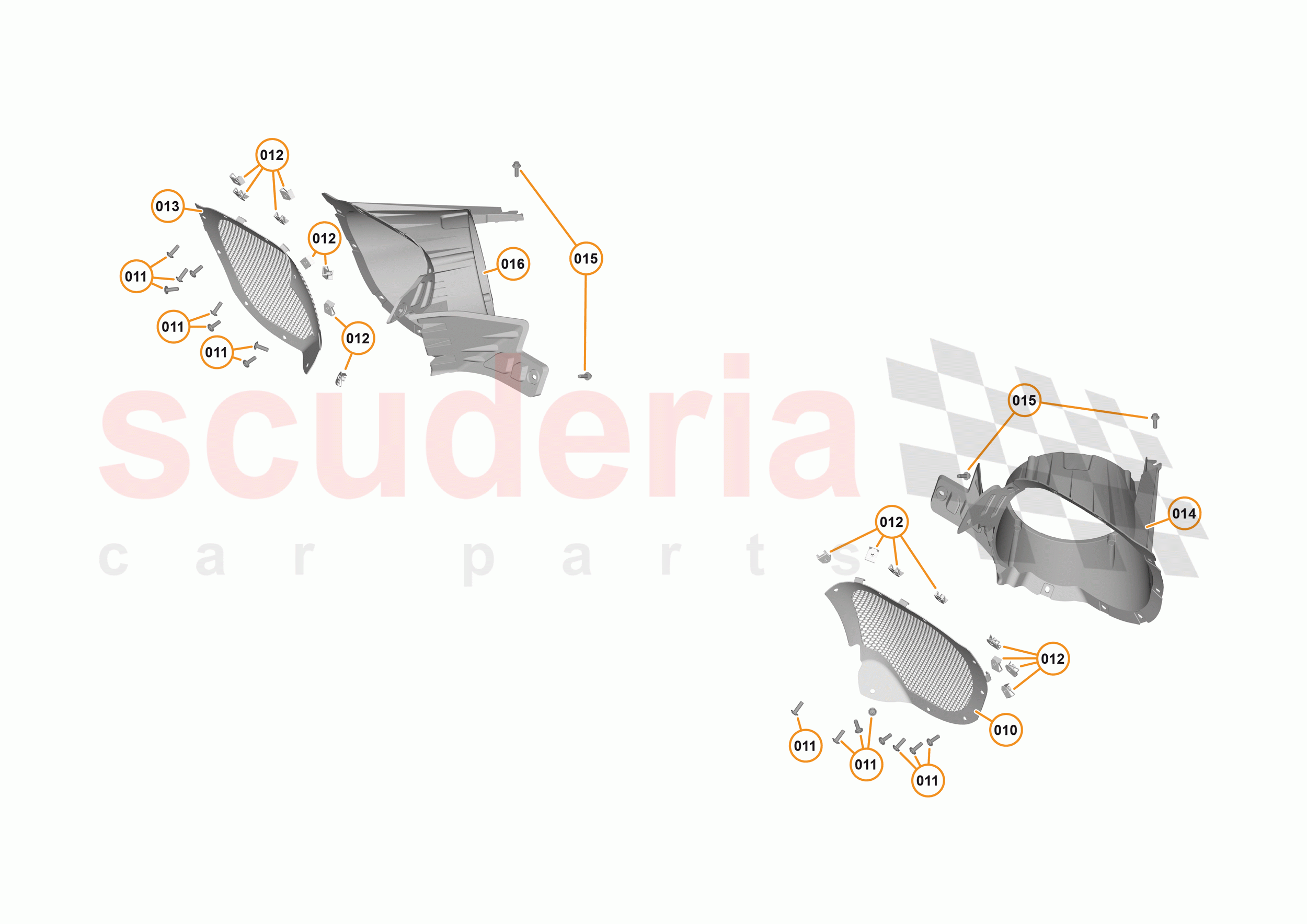

12 - DUCTS, VENTS & FLOORS - 12.3 - REAR DUCTS & VENTS of McLaren McLaren 570S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13A5483CP
GRILLE - WHEEL ARCH LINER - REAR - LH 		$221.54 1
TO
011 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 16
PE
 Enquire
012 00RB104
Spire Clip - M6 - Raymond - 203909 		- 16
PE
 Enquire
013 13A5485CP
GRILLE - WHEEL ARCH LINER - REAR - RH 		$221.54 1
TO
014 13A6977CP
DUCT - WHEEL ARCH - REAR - LH
Superseded parts: 13A5290CP; 		$261.81 1
TO
015 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4
PE
 Enquire
016 13A6979CP
DUCT - WHEEL ARCH - REAR - RH
Superseded parts: 13A5291CP; 		$261.81 1
TO
