McLaren 540C Coupe - 38 - TRANSMISSION - 38.1 - TRANSMISSION

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RX033 Bolt - M10x120 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11G0171CP Breather - Transmission $40.60 To Order
Photo Part No Description Price (each) Stock
11G0160CP O-ring - Differential Cover $65.98 To Order
Photo Part No Description Price (each) Stock
11G0165CP Seal - Input Shaft - Transmission $76.15 To Order
Photo Part No Description Price (each) Stock
00RA269 NUT - M10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11G0162CP O-ring - Differential Cover - Lubrication Channel $9.33 To Order
Photo Part No Description Price (each) Stock
11G0164CP Seal - Driveshaft Output - RH $76.15 To Order
Photo Part No Description Price (each) Stock
13GA002CP Mount - Transmission - Rubber - 675LT Enquire To Order
Photo Part No Description Price (each) Stock
13G0060CP OIL COOLER-TRANSMI24ION $385.87 To Order
Photo Part No Description Price (each) Stock
11G0158CP O-ring - Cooler - Trans/Clutch $17.25 To Order
Photo Part No Description Price (each) Stock
11G0234CP O-ring - Clutch Cooler $12.89 To Order
Photo Part No Description Price (each) Stock
11G0295CP TRANSMISISON SPEED SENSOR $619.78 IN STOCK
Photo Part No Description Price (each) Stock
11G0122CP BEARING COVER-SECO24ARY SHAFT $223.40 To Order
Photo Part No Description Price (each) Stock
11G0173CP O-ring - Transmission - Secondary Shaft Cover $8.91 To Order
Photo Part No Description Price (each) Stock
11G0113CP BEARING COVER-PRIM24Y SHAFT $223.40 To Order
Photo Part No Description Price (each) Stock
11G0172CP O-ring - Transmission - Primary Shaft Cover $17.25 To Order
Photo Part No Description Price (each) Stock
11G0156CP Fill-Drain Plug - Trans/Clutch - inc. Washer $40.60 To Order
Photo Part No Description Price (each) Stock
11G0168CP Sensor - Temperature - Transmission - inc. Washer $81.23 To Order
Photo Part No Description Price (each) Stock
11G0018CP FILTER-TRANSMISSION OIL $172.62 IN STOCK
Photo Part No Description Price (each) Stock
11G0163CP OUTPUT SHAFT SEAL-LH $76.15 IN STOCK
Photo Part No Description Price (each) Stock
11G0017CP FILTER-CLUTCH FLUID $98.61 IN STOCK
Photo Part No Description Price (each) Stock
11G0166CP CLUTCH FILTER ACCESS COVER O-RING $4.44 IN STOCK
Photo Part No Description Price (each) Stock
11G0019CP Access Cover - Filter - Clutch Fluid $162.46 To Order
Photo Part No Description Price (each) Stock
13G0055CP Oil Cooler - Clutch $385.87 To Order
Photo Part No Description Price (each) Stock
13GA017CP Dual Clutch Transmission $30,588.74 To Order
Photo Part No Description Price (each) Stock
13M9000CP WIRING HARNESS - TRANSMISSION - EXTERNAL $2,559.16 To Order
Photo Part No Description Price (each) Stock
11G0063CP ASSY - CLUTCH SEALING PLATE $704.93 To Order
Photo Part No Description Price (each) Stock
12G0283CP GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY $385.87 To Order
Photo Part No Description Price (each) Stock
11SA022CP INPUT SHAFT SEAL PRESS TOOL - TRANSMISSION INTERFACE PLATE $124.38 To Order
Photo Part No Description Price (each) Stock
11G0063CP ASSY - CLUTCH SEALING PLATE $704.93 To Order

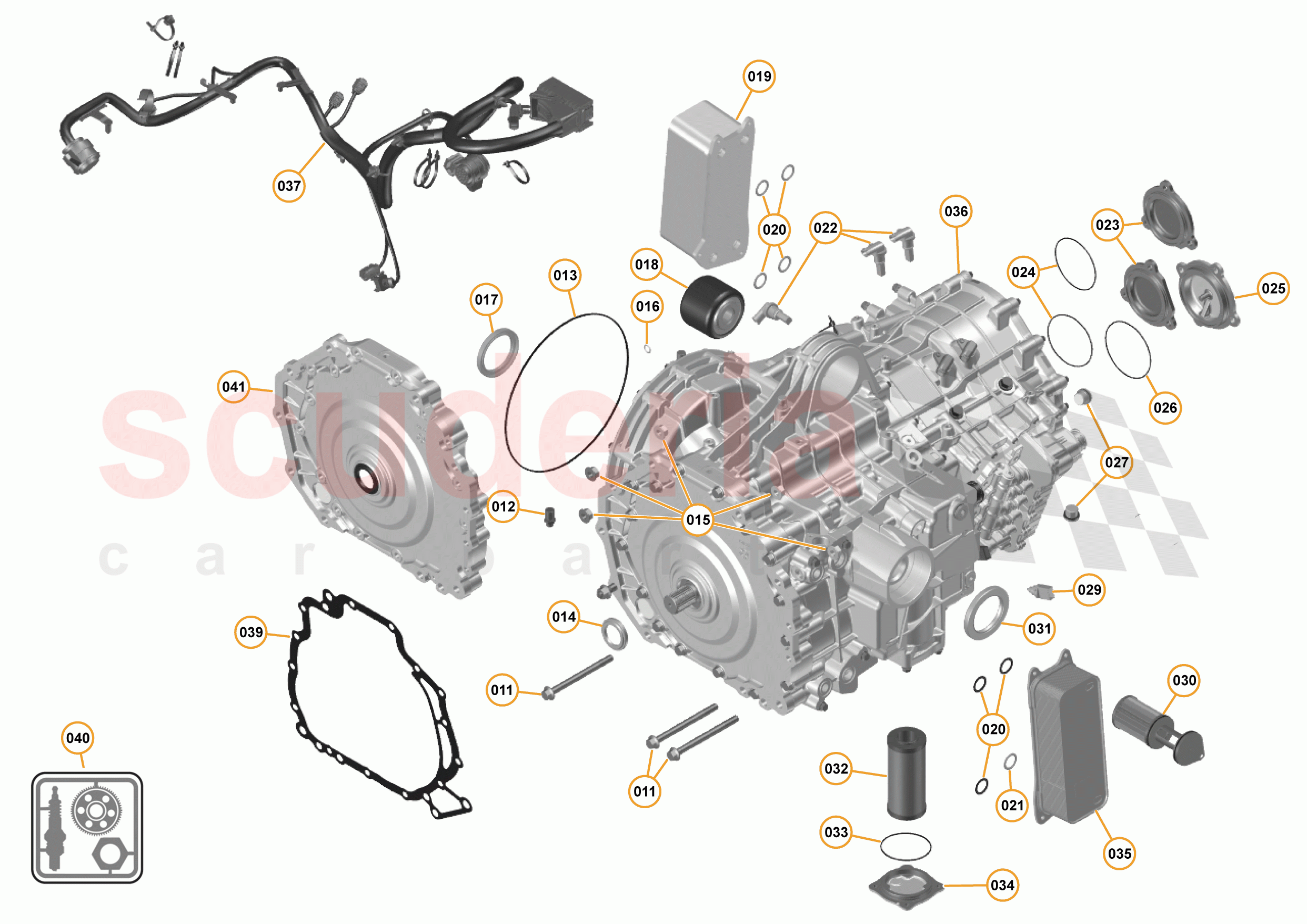

38 - TRANSMISSION - 38.1 - TRANSMISSION of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11GA003CP
PLUG SERVICE KIT - DUAL CLUTCH TRANSMISSION 		$121.84 1
TO
000 13MA300CP
RETAINING CLIP 7047-5255 		$3.03 1
TO
000 11G0225CP
Bolt - M8x20 - Trans 		$11.14 1
TO
000 11G0223CP
Stud - M10 - Trans to Engine 		$71.07 1
TO
000 11G0221CP
Bolt - Transmission - M4x14 		$9.72 3
TO
000 00RB113
Hose Clamp - 22.6-706R 		- 1
PE
 Enquire
000 11G0242CP
Bolt - Transmission - M10x1.25x30 		$10.14 12
TO
000 11G0239CP
Taped Clip - Harness - Transmission - 3193 		$8.31 1
TO
000 11G0241CP
Band Clip - Harness - Transmission - 3223 		$9.72 1
TO
000 11G0240CP
Band Clip - Harness - Transmission - 3233 		$3.43 1
TO
000 11G0238CP
Band Clip - Harness - Transmission - 3183 		$13.18 2
TO
000 11G0237CP
Taped Clip - Harness - Transmission - 3173 		$12.17 2
TO
000 11G0236CP
Band Clip - Harness - Transmission - 3163 		$8.91 8
TO
000 11G0235CP
Band Clip - Harness - Transmission - 3153 		$2.34 3
TO
000 11G0222CP
Bolt - Transmission - M6x18 		$4.44 13
TO
011 00RX033
Bolt - M10x120 - Hex 		- 3
PE
 Enquire
012 11G0171CP
Breather - Transmission 		$40.60 2
TO
013 11G0160CP
O-ring - Differential Cover 		$65.98 1
TO
014 11G0165CP
Seal - Input Shaft - Transmission 		$76.15 1
TO
015 00RA269
NUT - M10 - HEX 		- 6
PE
 Enquire
016 11G0162CP
O-ring - Differential Cover - Lubrication Channel 		$9.33 1
TO
017 11G0164CP
Seal - Driveshaft Output - RH 		$76.15 1
TO
018 13GA002CP
Mount - Transmission - Rubber - 675LT
Superseded parts: 11G0267RP; 		- 1
PE
 Enquire
019 13G0060CP
OIL COOLER-TRANSMI24ION 		$385.87 1
TO
020 11G0158CP
O-ring - Cooler - Trans/Clutch 		$17.25 7
TO
021 11G0234CP
O-ring - Clutch Cooler 		$12.89 1
TO
022 11G0295CP
TRANSMISISON SPEED SENSOR
Superseded parts: 11G0167CP;
IN STOCK 		$619.78 3
IN
023 11G0122CP
BEARING COVER-SECO24ARY SHAFT 		$223.40 2
TO
024 11G0173CP
O-ring - Transmission - Secondary Shaft Cover 		$8.91 2
TO
025 11G0113CP
BEARING COVER-PRIM24Y SHAFT 		$223.40 1
TO
026 11G0172CP
O-ring - Transmission - Primary Shaft Cover 		$17.25 1
TO
027 11G0156CP
Fill-Drain Plug - Trans/Clutch - inc. Washer 		$40.60 3
TO
029 11G0168CP
Sensor - Temperature - Transmission - inc. Washer 		$81.23 1
TO
030 11G0018CP
FILTER-TRANSMISSION OIL
IN STOCK 		$172.62 1
IN
031 11G0163CP
OUTPUT SHAFT SEAL-LH
IN STOCK 		$76.15 1
IN
032 11G0017CP
FILTER-CLUTCH FLUID
IN STOCK 		$98.61 1
IN
033 11G0166CP
CLUTCH FILTER ACCESS COVER O-RING
IN STOCK 		$4.44 1
IN
034 11G0019CP
Access Cover - Filter - Clutch Fluid 		$162.46 1
TO
035 13G0055CP
Oil Cooler - Clutch 		$385.87 1
TO
036 13GA017CP
Dual Clutch Transmission
Superseded parts: 13G0163CP; 		$30,588.74 1
TO
037 13M9000CP
WIRING HARNESS - TRANSMISSION - EXTERNAL 		$2,559.16 1
TO

11G0063CP

ASSY - CLUTCH SEALING PLATE

from $704.93

039 12G0283CP
GASKET - DCT GEARBOX - HYBRID DRIVE ASSEMBLY 		$385.87 1
TO
040 11SA022CP
INPUT SHAFT SEAL PRESS TOOL - TRANSMISSION INTERFACE PLATE 		$124.38 1
TO
