37 - Engine Mounting - 37.1 - Engine Mounting System

McLaren 540C Coupe

Find Your Part

McLaren 540C Coupe - 37 - ENGINE MOUNTING - 37.1 - ENGINE MOUNTING SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA005 NUT - M12 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RX047 BOLT - M12X100 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RX048 BOLT - M12X90 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RX049 BOLT - M8X60 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC061 WASHER - M12X40X2 Enquire To Order
Photo Part No Description Price (each) Stock
11F2680CP SPACER BUSH-ENGINE $111.69 To Order
Photo Part No Description Price (each) Stock
11F0618CP BRACKET - SUPPORT - ENGINE LINK $86.29 To Order
Photo Part No Description Price (each) Stock
11F0619CP ENGINE LINK MOUNT-SUPPORT $45.68 To Order
Photo Part No Description Price (each) Stock
11F2681CP SPACER BUSH LOCATOR $121.84 To Order
Photo Part No Description Price (each) Stock
13FA024CP Mount - Engine Link $426.52 To Order
Photo Part No Description Price (each) Stock
13FA025CP Mount - Engine Link - Lateral $426.52 To Order

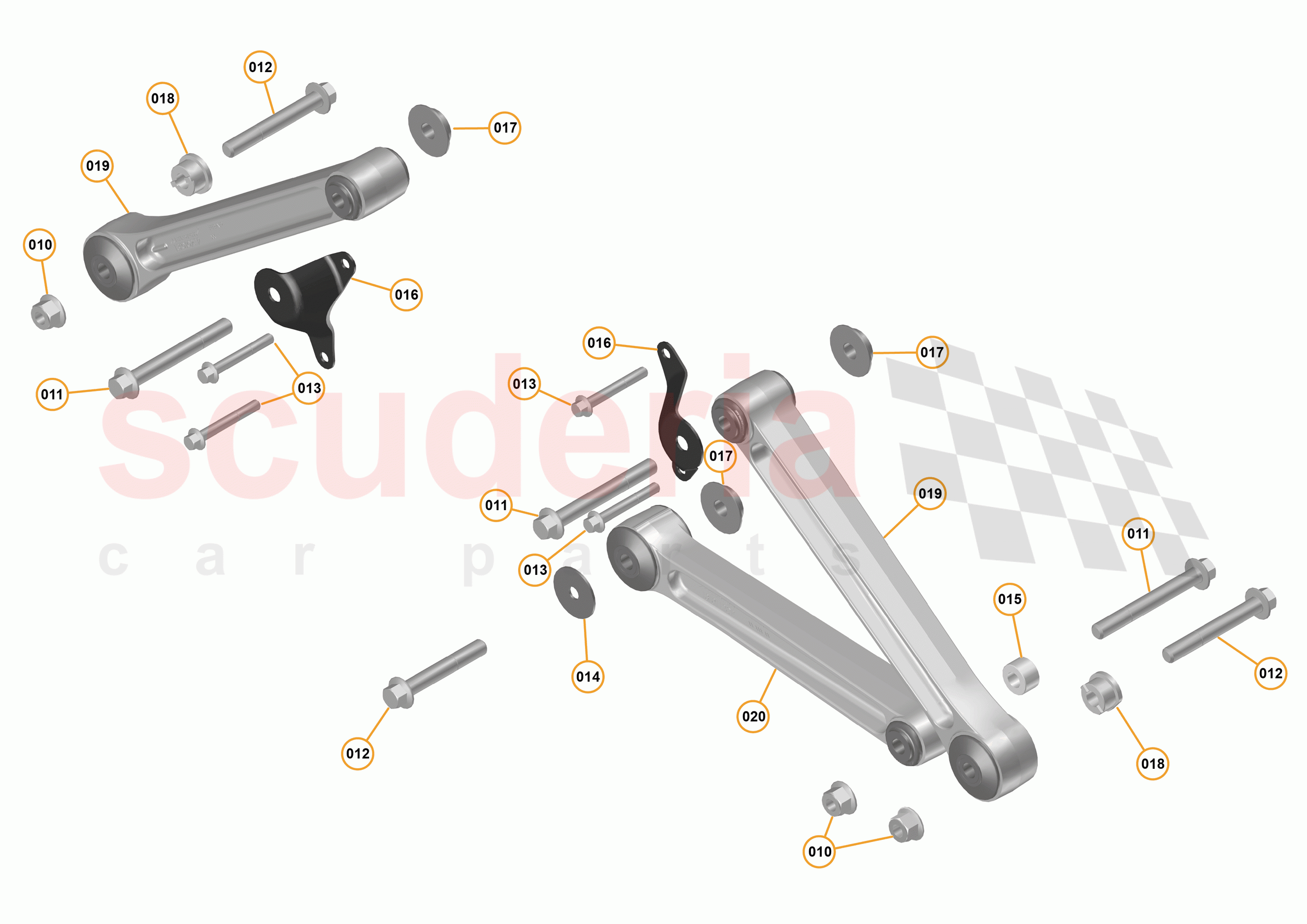

37 - ENGINE MOUNTING - 37.1 - ENGINE MOUNTING SYSTEM of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA005
NUT - M12 - LOCK HEX 		- 3
PE
 Enquire
011 00RX047
BOLT - M12X100 - HEX 		- 3
PE
 Enquire
012 00RX048
BOLT - M12X90 - HEX 		- 3
PE
 Enquire
013 00RX049
BOLT - M8X60 - HEX 		- 4
PE
 Enquire
014 00RC061
WASHER - M12X40X2 		- 1
PE
 Enquire
015 11F2680CP
SPACER BUSH-ENGINE
Superseded parts: 11F0511CP; 		$111.69 1
TO
016 11F0618CP
BRACKET - SUPPORT - ENGINE LINK 		$86.29 2
TO
017 11F0619CP
ENGINE LINK MOUNT-SUPPORT 		$45.68 3
TO
018 11F2681CP
SPACER BUSH LOCATOR 		$121.84 2
TO
019 13FA024CP
Mount - Engine Link
Superseded parts: 13F0296CP; 		$426.52 2
TO
020 13FA025CP
Mount - Engine Link - Lateral
Superseded parts: 13F0297CP; 		$426.52 1
TO
