McLaren 540C Coupe - 34 - ENGINE OIL SYSTEM - 34.2 - ENGINE OIL FEED & RETURN HOSES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F2162CP Pipe - Oil Feed - Oil Tank to Engine $588.99 To Order
Photo Part No Description Price (each) Stock
11F2163CP Pipe - Oil Return - Engine to Oil Tank $406.20 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
11F0919CP O-ring - Hose - Oil Tank $30.44 To Order

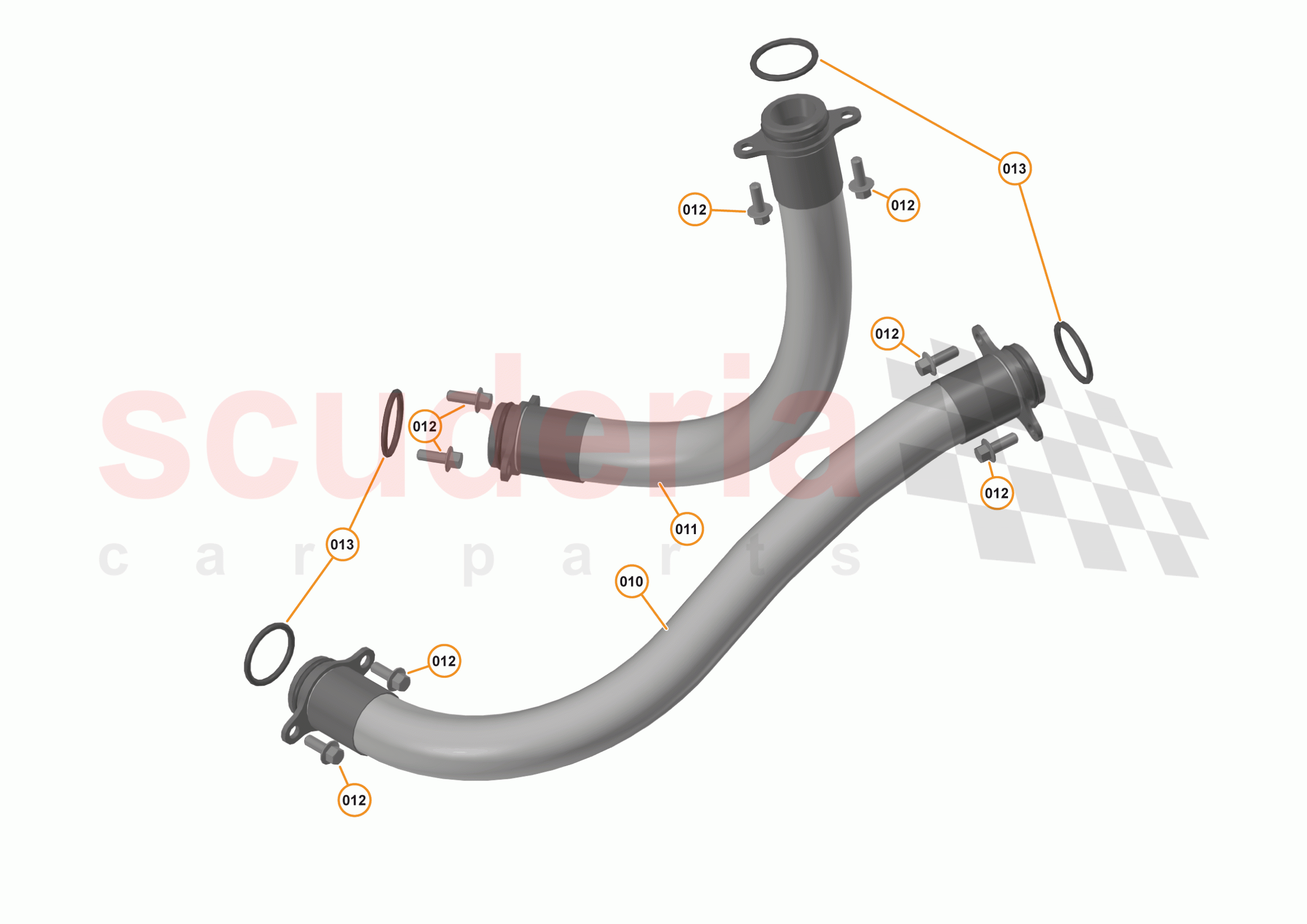

34 - ENGINE OIL SYSTEM - 34.2 - ENGINE OIL FEED & RETURN HOSES of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F2162CP
Pipe - Oil Feed - Oil Tank to Engine
Superseded parts: 11F0214CP; 		$588.99 1
TO
011 11F2163CP
Pipe - Oil Return - Engine to Oil Tank
Superseded parts: 11F0213CP; 		$406.20 1
TO
012 00RA313
SCREW - M6X16 - HEX - SILVER 		- 8
PE
 Enquire
013 11F0919CP
O-ring - Hose - Oil Tank 		$30.44 4
TO
