32 - Engine - 32.7 - Vacuum Assembly - Upto My17

McLaren 540C Coupe

Find Your Part

McLaren 540C Coupe - 32 - ENGINE - 32.7 - VACUUM ASSEMBLY - UPTO MY17

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1084CP Clip - Vacuum Assy - Engine - Raymond - 060696 $17.25 To Order
11F1087CP Clip - Vacuum Assy - Engine - Raymond - 017548 $12.17 To Order
11F1083CP Clip - Vacuum Assy - Engine - Raymond - 012440 $8.31 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0957CP Bracket Set - Vacuum Lines - Engine $499.82 To Order
Photo Part No Description Price (each) Stock
11F0958CP Bolt - Bracket - Vacuum Lines - Engine $25.37 To Order
Photo Part No Description Price (each) Stock
11F0983CP Nut - M6 - Vacuum Bracket - Engine $14.21 To Order
Photo Part No Description Price (each) Stock
13F0861CP Vacuum Assy - Single Solenoid Enquire To Order
Photo Part No Description Price (each) Stock
11F0956CP Connector Hose Set - Turbocharger to Vacuum Lines - Engine $121.84 To Order
Photo Part No Description Price (each) Stock
00RB095 Oetiker Clip - 16.2 Enquire To Order

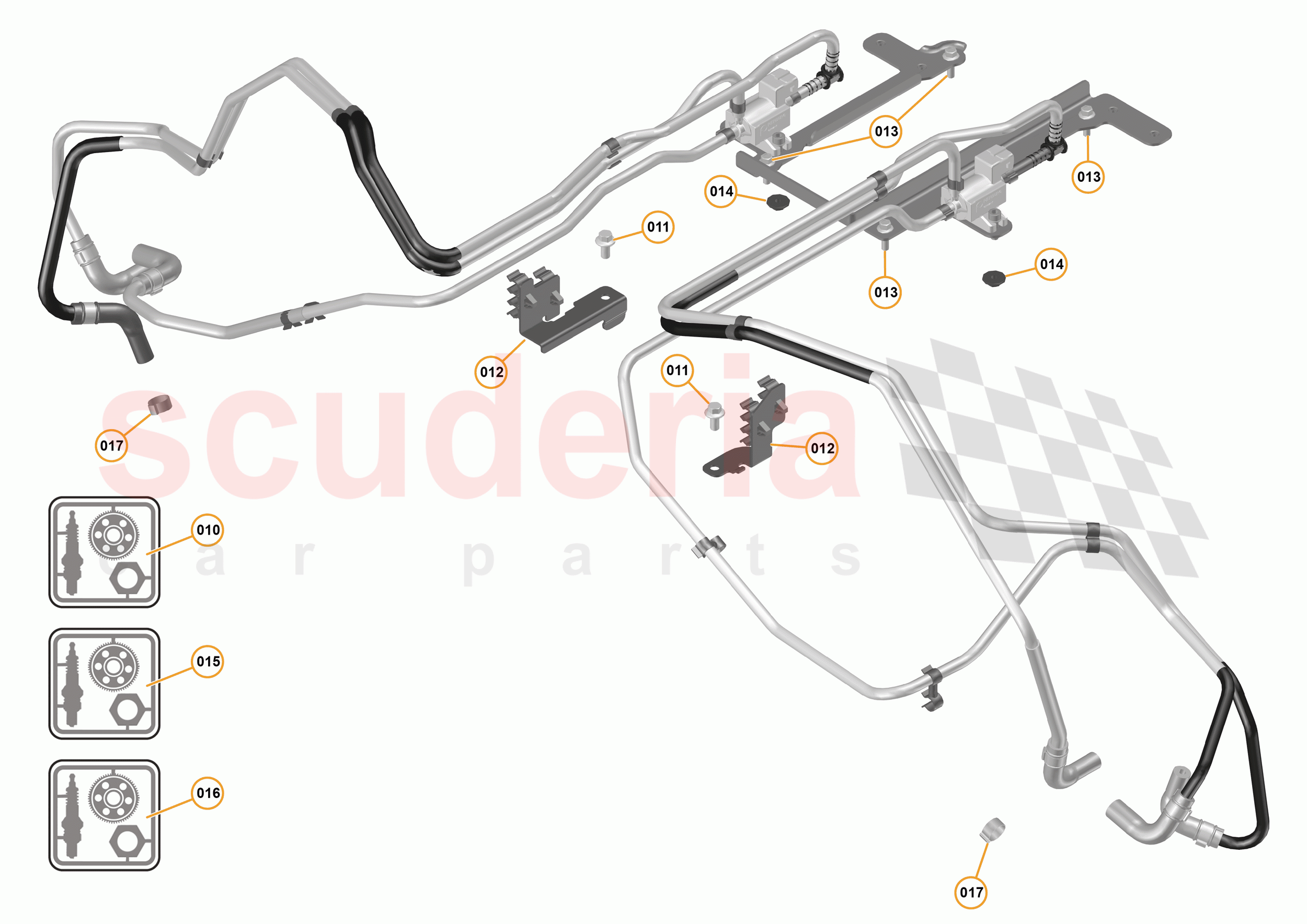

32 - ENGINE - 32.7 - VACUUM ASSEMBLY - UPTO MY17 of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 13F0589CP
90 Degree Connector - Vacuum Hose 		$14.21 1
TO
010 11F1084CP
Clip - Vacuum Assy - Engine - Raymond - 060696 		$17.25 1
TO
010 11F1087CP
Clip - Vacuum Assy - Engine - Raymond - 017548 		$12.17 1
TO
010 11F1083CP
Clip - Vacuum Assy - Engine - Raymond - 012440 		$8.31 1
TO
011 11F0822CP
Bolt - M6x16 - Engine 		- 1
PE
 Enquire
012 11F0957CP
Bracket Set - Vacuum Lines - Engine 		$499.82 1
TO
013 11F0958CP
Bolt - Bracket - Vacuum Lines - Engine 		$25.37 1
TO
014 11F0983CP
Nut - M6 - Vacuum Bracket - Engine 		$14.21 1
TO
015 13F0861CP
Vacuum Assy - Single Solenoid 		- 1
PE
 Enquire
016 11F0956CP
Connector Hose Set - Turbocharger to Vacuum Lines - Engine 		$121.84 1
TO
017 00RB095
Oetiker Clip - 16.2 		- 2
PE
 Enquire
