32 - Engine - 32.3 - Inlet Manifold

McLaren 540C Coupe

Find Your Part

McLaren 540C Coupe - 32 - ENGINE - 32.3 - INLET MANIFOLD

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13F0664CP INLET MANIFOLD - ASSEMBLY $649.93 To Order
Photo Part No Description Price (each) Stock
11F0967CP Seal Set - Inlet Manifold - Engine $192.93 To Order
Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F0407CP Throttle Body - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0969CP Seal - Throttle Body - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0820CP Bolt Set - M6x45 - Engine - Throttle Body Enquire To Order
Photo Part No Description Price (each) Stock
11F0987CP Sensor - TMAP - Inlet Manifold - Engine $143.23 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
11F2298CP INTAKE SOUND GENERATOR - THROTTLE $1,198.32 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F1799CP BOLT - M6X60 - HEX $3.98 To Order
Photo Part No Description Price (each) Stock
13F0862CP TUBE - INTAKE SOUND GENERATOR TO - INTAKE MANIFOLD $55.84 To Order
Photo Part No Description Price (each) Stock
13F0865CP O-RING - ISG TUBE $6.69 To Order
Photo Part No Description Price (each) Stock
11F1798CP SCREW - M5X25 - SELF TAPPING $4.65 To Order
Photo Part No Description Price (each) Stock
13F0791CP BLANKING PLUG - INTAKE SOUND GENERATOR $35.54 To Order
Photo Part No Description Price (each) Stock
13F0729CP BRACKET - ISG THROTTLE $402.81 To Order
Photo Part No Description Price (each) Stock
11F1794CP SCREW - M6X25 HEX $8.10 To Order
Photo Part No Description Price (each) Stock
13F0654CP HOSE - BRAKE VACUUM $241.69 To Order
Photo Part No Description Price (each) Stock
13F0741CP CLIP - BRAKE VACUUM - FEMALE 030252 $2.85 To Order
Photo Part No Description Price (each) Stock
13F0742CP CLIP - BRAKE VACUUM - MALE 030398 $2.22 To Order

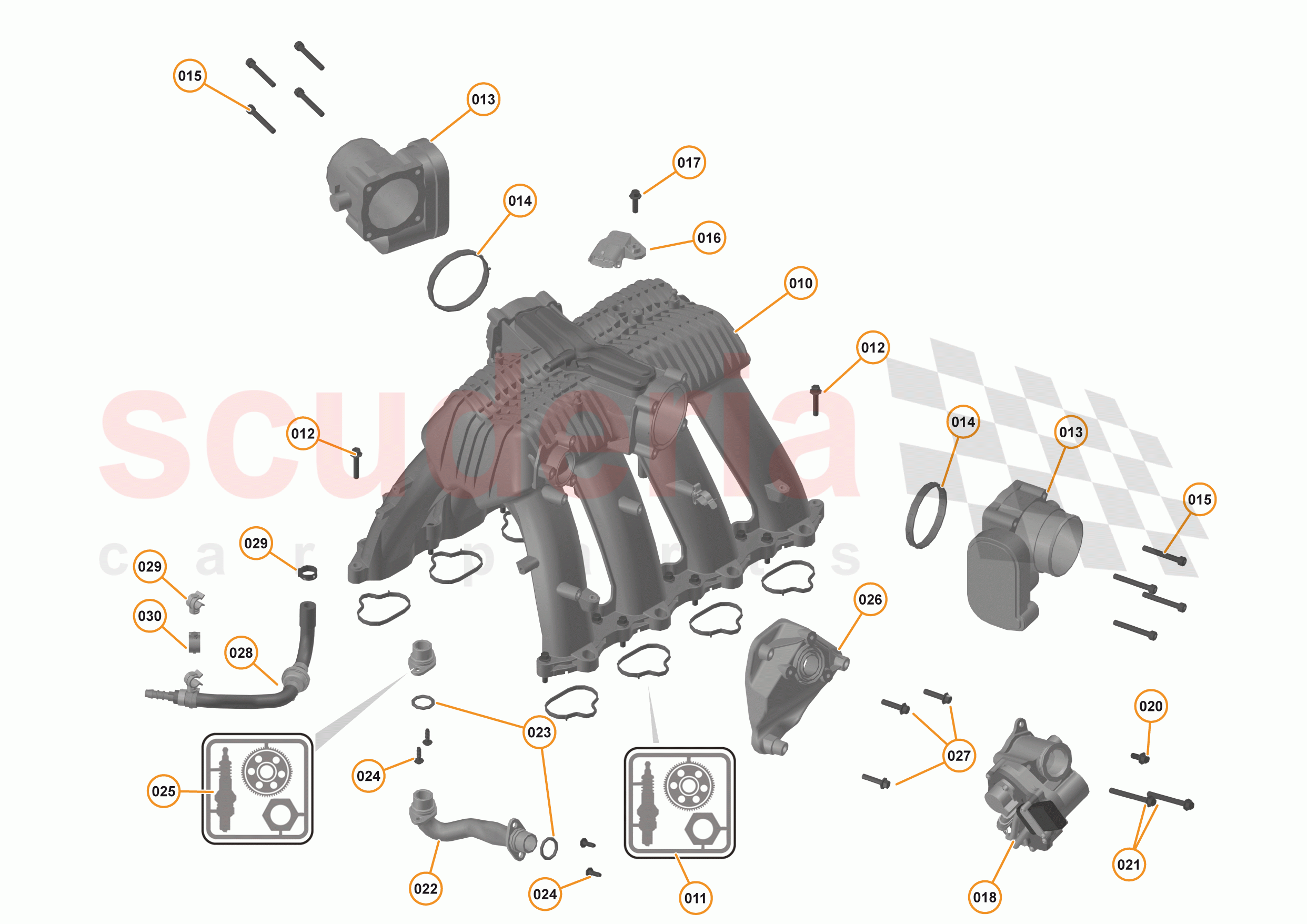

32 - ENGINE - 32.3 - INLET MANIFOLD of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13F0664CP
INLET MANIFOLD - ASSEMBLY 		$649.93 1
TO
011 11F0967CP
Seal Set - Inlet Manifold - Engine 		$192.93 1
TO
012 11F1776CP
BOLT - M6X30 - HEX
Superseded parts: 11F0824CP; 		$10.14 16
TO
013 11F0407CP
Throttle Body - Engine
Superseded parts: 11F0407CP; 		- 2
PE
 Enquire
014 11F0969CP
Seal - Throttle Body - Engine
Superseded parts: 11F0969CP; 		- 2
PE
 Enquire
015 11F0820CP
Bolt Set - M6x45 - Engine - Throttle Body 		- 2
PE
 Enquire
016 11F0987CP
Sensor - TMAP - Inlet Manifold - Engine 		$143.23 1
TO
017 11F1793CP
BOLT - M6X20 - HEX
Superseded parts: 11F0825CP; 		$11.14 1
TO
018 11F2298CP
INTAKE SOUND GENERATOR - THROTTLE 		$1,198.32 1
TO
020 11F0822CP
Bolt - M6x16 - Engine 		- 1
PE
 Enquire
021 11F1799CP
BOLT - M6X60 - HEX 		$3.98 2
TO
022 13F0862CP
TUBE - INTAKE SOUND GENERATOR TO - INTAKE MANIFOLD
Superseded parts: 13F0730CP; 		$55.84 1
TO
023 13F0865CP
O-RING - ISG TUBE 		$6.69 2
TO
024 11F1798CP
SCREW - M5X25 - SELF TAPPING 		$4.65 4
TO
025 13F0791CP
BLANKING PLUG - INTAKE SOUND GENERATOR 		$35.54 1
TO
026 13F0729CP
BRACKET - ISG THROTTLE 		$402.81 1
TO
027 11F1794CP
SCREW - M6X25 HEX 		$8.10 3
TO
028 13F0654CP
HOSE - BRAKE VACUUM
Superseded parts: 13F0726CP; 		$241.69 1
TO
029 13F0741CP
CLIP - BRAKE VACUUM - FEMALE 030252 		$2.85 1
TO
030 13F0742CP
CLIP - BRAKE VACUUM - MALE 030398 		$2.22 1
TO
