McLaren 540C Coupe - 32 - ENGINE - 32.10 - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1150CP Cable Tie - Engine $1.00 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $11.14 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0809CP Bolt - M8x30 - Engine - Thermostat $13.14 To Order
Photo Part No Description Price (each) Stock
11F2791CP Sensor - Engine - Knock - Coated $171.18 To Order
Photo Part No Description Price (each) Stock
11F0271CP Spark Plug - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0385CP Ignition Coil - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F1035CP Repair Flylead - Ignition Coil $75.52 To Order
Photo Part No Description Price (each) Stock
11F1019CP CONNCTR HOUSING-IG24COIL-ENGIN $60.42 To Order
Photo Part No Description Price (each) Stock
11F0817CP ENGINE-BRACKET HAR24SS SUPPORT $101.53 To Order
Photo Part No Description Price (each) Stock
11F0739CP Sensor - Engine - Head Temp Enquire To Order
Photo Part No Description Price (each) Stock
13F0768CP HARNESS - INTAKE $459.84 To Order
Photo Part No Description Price (each) Stock
13F0769CP HARNESS - ENGINE LINK - INJECTORS - RH $317.79 To Order
Photo Part No Description Price (each) Stock
13F0770CP HARNESS - ENGINE LINK - INJECTORS - LH $317.79 To Order
Photo Part No Description Price (each) Stock
13F0771CP Harness - Vee Link - LH $459.84 To Order
Photo Part No Description Price (each) Stock
13F0772CP Harness - Vee Link - RH $459.84 To Order
Photo Part No Description Price (each) Stock
13F0418CP Wiring Harness - Engine $3,938.71 To Order
Photo Part No Description Price (each) Stock
11F2191CP SENSOR - ENGINE - CRANK POSITION $60.42 To Order
Photo Part No Description Price (each) Stock
13M1178CP SENSOR - ENGINE - AMBIENT AIR TEMPERATURE $140.97 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order

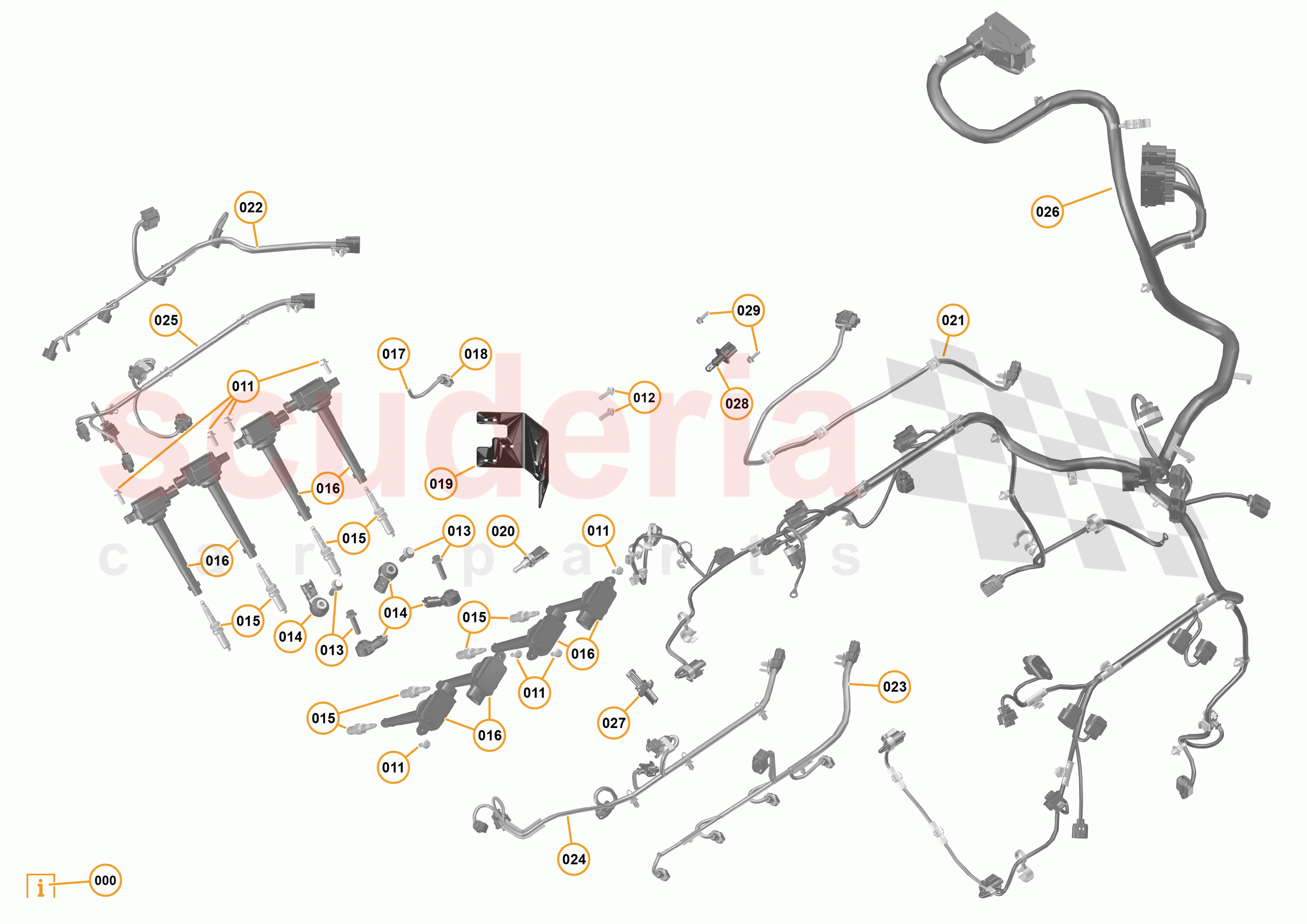

32 - ENGINE - 32.10 - ELECTRICAL SYSTEM of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F1150CP
Cable Tie - Engine 		$1.00 1
TO
011 11F1793CP
BOLT - M6X20 - HEX
Superseded parts: 11F0825CP; 		$11.14 8
TO
012 11F0822CP
Bolt - M6x16 - Engine 		- 1
PE
 Enquire
013 11F0809CP
Bolt - M8x30 - Engine - Thermostat 		$13.14 1
TO
014 11F2791CP
Sensor - Engine - Knock - Coated
Superseded parts: 11F0738CP; 		$171.18 4
TO
015 11F0271CP
Spark Plug - Engine
Superseded parts: 11F0271CP; 		- 8
PE
 Enquire
016 11F0385CP
Ignition Coil - Engine
Superseded parts: 11F0385CP; 		- 8
PE
 Enquire
017 11F1035CP
Repair Flylead - Ignition Coil 		$75.52 1
TO
018 11F1019CP
CONNCTR HOUSING-IG24COIL-ENGIN 		$60.42 1
TO
019 11F0817CP
ENGINE-BRACKET HAR24SS SUPPORT 		$101.53 1
TO
020 11F0739CP
Sensor - Engine - Head Temp
Superseded parts: 11F0739CP; 		- 1
PE
 Enquire
021 13F0768CP
HARNESS - INTAKE 		$459.84 1
TO
022 13F0769CP
HARNESS - ENGINE LINK - INJECTORS - RH 		$317.79 1
TO
023 13F0770CP
HARNESS - ENGINE LINK - INJECTORS - LH 		$317.79 1
TO
024 13F0771CP
Harness - Vee Link - LH 		$459.84 1
TO
025 13F0772CP
Harness - Vee Link - RH 		$459.84 1
TO
026 13F0418CP
Wiring Harness - Engine 		$3,938.71 1
TO
027 11F2191CP
SENSOR - ENGINE - CRANK POSITION 		$60.42 1
TO
028 13M1178CP
SENSOR - ENGINE - AMBIENT AIR TEMPERATURE 		$140.97 1
TO
029 00RX001
BOLT - M5X16 - HEX 		- 2
PE
 Enquire
