McLaren 540C Coupe - 47 - INTERIOR SYSTEMS - 47.6 - TUNNEL CONSOLE - COMPONENTS & HARDWARE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11N0829CP ASHTRAY-ASH CUP 24 $76.15 To Order
Photo Part No Description Price (each) Stock
13N1423CP MAT - CUPHOLDER $188.68 To Order
Photo Part No Description Price (each) Stock
13N1878CP MAT - OPEN STOWAGE $109.22 To Order
Photo Part No Description Price (each) Stock
13N0426CP MAT - BIN LOWER $188.68 To Order
Photo Part No Description Price (each) Stock
13N2903CP Dedication Plate - 540C $60.42 To Order
13N2902CP Dedication Plate - 570S $60.42 To Order
Photo Part No Description Price (each) Stock
00RC106 STARLOCK - DIAMETER 4.5MM SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Enquire To Order
Photo Part No Description Price (each) Stock
13N0938CP BOX BIN - TUNNEL $483.38 To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA522 BOLT - BUTTON HEAD - TORX - M5X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
13N0939CP Latch Bin Tunnel Enquire To Order
Photo Part No Description Price (each) Stock
11N0965CP ACCESSORY SOCKET - 12V $35.23 To Order
Photo Part No Description Price (each) Stock
11N0793CP BRKT-BIN SUPPORT-RR $71.07 To Order
Photo Part No Description Price (each) Stock
00RA071 SCREW - M6X16 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
13N0184CP BEZEL - TUNNEL CLOSURE PANEL $50.34 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA112 TORX SCREW-WASHER 4.2X16 Enquire To Order
Photo Part No Description Price (each) Stock
13N1620CP FRONT TRUNKING - TUNNEL $117.71 To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA081 SCREW - TORX - PAN - M6X16-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
13MA115CP MICROWAVE SENSOR $120.83 To Order

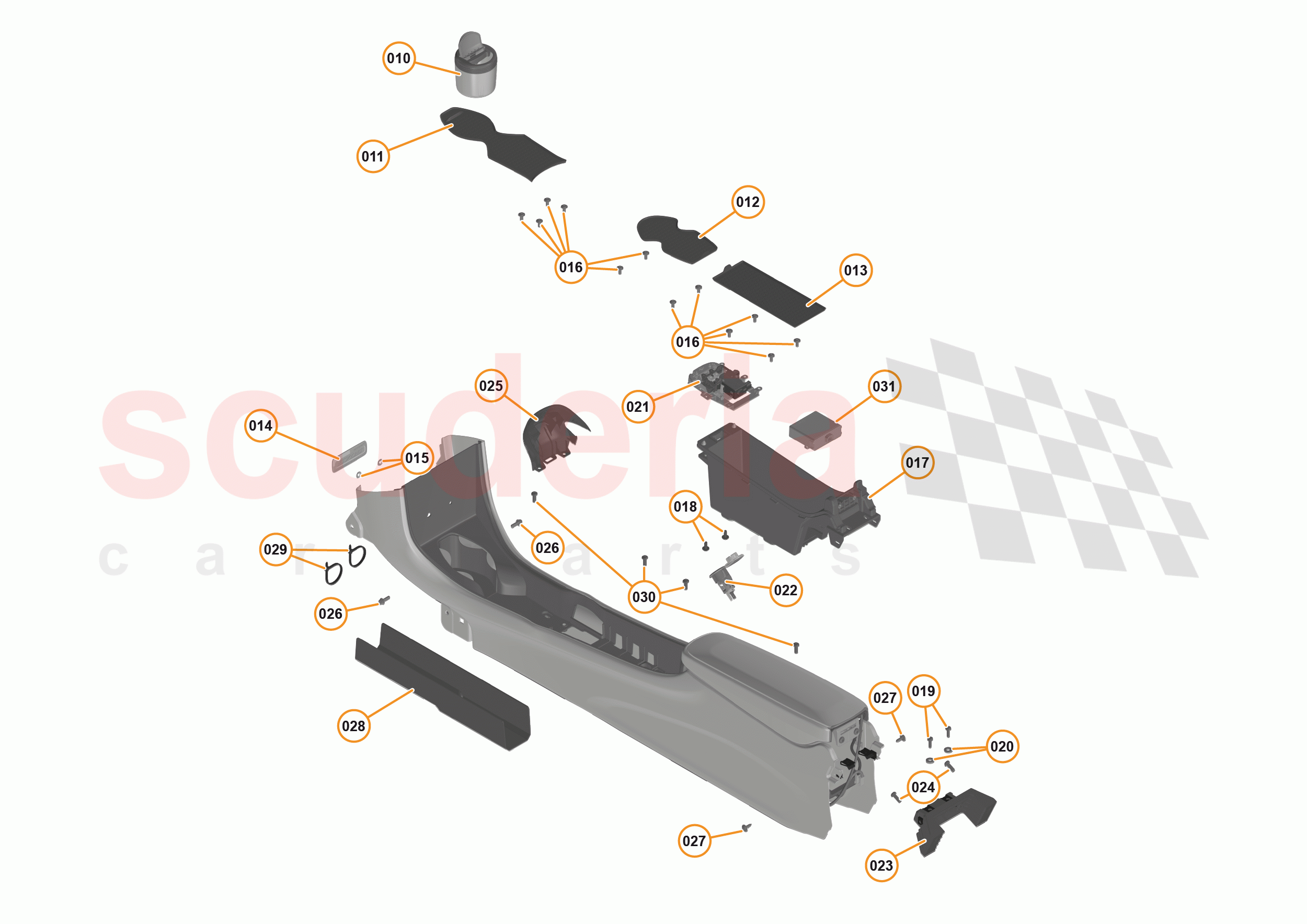

47 - INTERIOR SYSTEMS - 47.6 - TUNNEL CONSOLE - COMPONENTS & HARDWARE of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11N0829CP
ASHTRAY-ASH CUP 24
Ashtray; 		$76.15 1
TO
011 13N1423CP
MAT - CUPHOLDER 		$188.68 1
TO
012 13N1878CP
MAT - OPEN STOWAGE 		$109.22 1
TO
013 13N0426CP
MAT - BIN LOWER 		$188.68 1
TO
014 13N2903CP
Dedication Plate - 540C
Superseded parts: 13N2363CP; 		$60.42 1
TO
014 13N2902CP
Dedication Plate - 570S
Superseded parts: 13N0001CP; 		$60.42 1
TO
015 00RC106
STARLOCK - DIAMETER 4.5MM SHAFT 		- 2
PE
 Enquire
016 00RA398
SCREW - SOCKET HEAD - FLANGED - M5X10 		- 12
PE
 Enquire
017 13N0938CP
BOX BIN - TUNNEL 		$483.38 1
TO
018 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 2
PE
 Enquire
019 00RA522
BOLT - BUTTON HEAD - TORX - M5X16 		- 2
PE
 Enquire
020 00RC028
WASHER - M6 FORM C 		- 2
PE
 Enquire
021 13N0939CP
Latch Bin Tunnel 		- 1
PE
 Enquire
022 11N0965CP
ACCESSORY SOCKET - 12V 		$35.23 1
TO
023 11N0793CP
BRKT-BIN SUPPORT-RR 		$71.07 1
TO
024 00RA071
SCREW - M6X16 - BUTTON 		- 2
PE
 Enquire
025 13N0184CP
BEZEL - TUNNEL CLOSURE PANEL 		$50.34 1
TO
026 00RX001
BOLT - M5X16 - HEX 		- 2
PE
 Enquire
027 00RA112
TORX SCREW-WASHER 4.2X16 		- 2
PE
 Enquire
028 13N1620CP
FRONT TRUNKING - TUNNEL 		$117.71 1
TO
029 00RL012
CABLE TIE - 300X4.6MM 		- 2
PE
 Enquire
030 00RA081
SCREW - TORX - PAN - M6X16-8.8 		- 4
PE
 Enquire
031 13MA115CP
MICROWAVE SENSOR
Superseded parts: 11M1078CP; 		$120.83 1
TO
