McLaren 540C Coupe - 47 - INTERIOR SYSTEMS - 47.19 - LOWER & REAR TRIM - FOOTRESTS - BRACKETS - ELECTRICAL COVER - CAPPING PANEL

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11N0984CP FOOTREST - RHD - DRIVER $223.40 To Order
11N1491CP Footrest - US - Driver Enquire To Order
11N0975CP FOOTREST - LHD - DRIVER Enquire To Order
Photo Part No Description Price (each) Stock
11N0642CP FOAM-DRIVER FOOTRE24-RHD $121.84 To Order
11N0643CP FOOTREST - FOAM - LHD - DRIVER Enquire To Order
Photo Part No Description Price (each) Stock
11N1412CP BRKT FOOTREST SUPPORT DRIVER $182.79 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11N0893CP FOOTREST - SUPPORT - US - PASSENGER Enquire To Order
11N0687CP FOOTREST - SUPPORT - LHD - PASSENGER Enquire To Order
11N0688CP FOOTREST - SUPPORT - RHD - PASSENGER $284.34 To Order
Photo Part No Description Price (each) Stock
11N2646CP Footrest - LHD - Passenger Enquire To Order
11N2647CP Footrest - RHD - Passenger Enquire To Order
11N2648CP Footrest - US - Passenger Enquire To Order
Photo Part No Description Price (each) Stock
11N1114CP BRACKET - SUPPORT - HVAC $101.53 To Order
Photo Part No Description Price (each) Stock
00RA372 BOLT - HEX HEAD - LOCK - M5X25 - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
13NA300CP BRACKET - SPEAKER - QUARTER PANEL - REAR - LH $104.11 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13NA301CP BRACKET - SPEAKER - QUARTER PANEL - REAR - RH $104.11 To Order
Photo Part No Description Price (each) Stock
13N2695CP ASSY-ELECTRICAL COVER-HI DNST $365.57 To Order
Photo Part No Description Price (each) Stock
11N0887CP FUSEBOX ACCESS PANEL - INTERIOR $120.83 To Order
Photo Part No Description Price (each) Stock
11N0308CP Stowage Net Enquire To Order
Photo Part No Description Price (each) Stock
11N2282CP Hook - Stowage Net Enquire To Order
Photo Part No Description Price (each) Stock
00RA315 Screw - M4x25 - Countersunk Enquire To Order
Photo Part No Description Price (each) Stock
13N0254CP ESCUTCHEON - SEAT BELT - B-PILLAR TRIM - RH $82.92 To Order
13N0253CP ESCUTCHEON - SEAT BELT - B-PILLAR TRIM - LH $90.62 To Order
Photo Part No Description Price (each) Stock
13N0168CP CAPPING PANEL - REAR Enquire To Order
Photo Part No Description Price (each) Stock
13N2697CP Clip - Raymond - 018322 $30.44 To Order

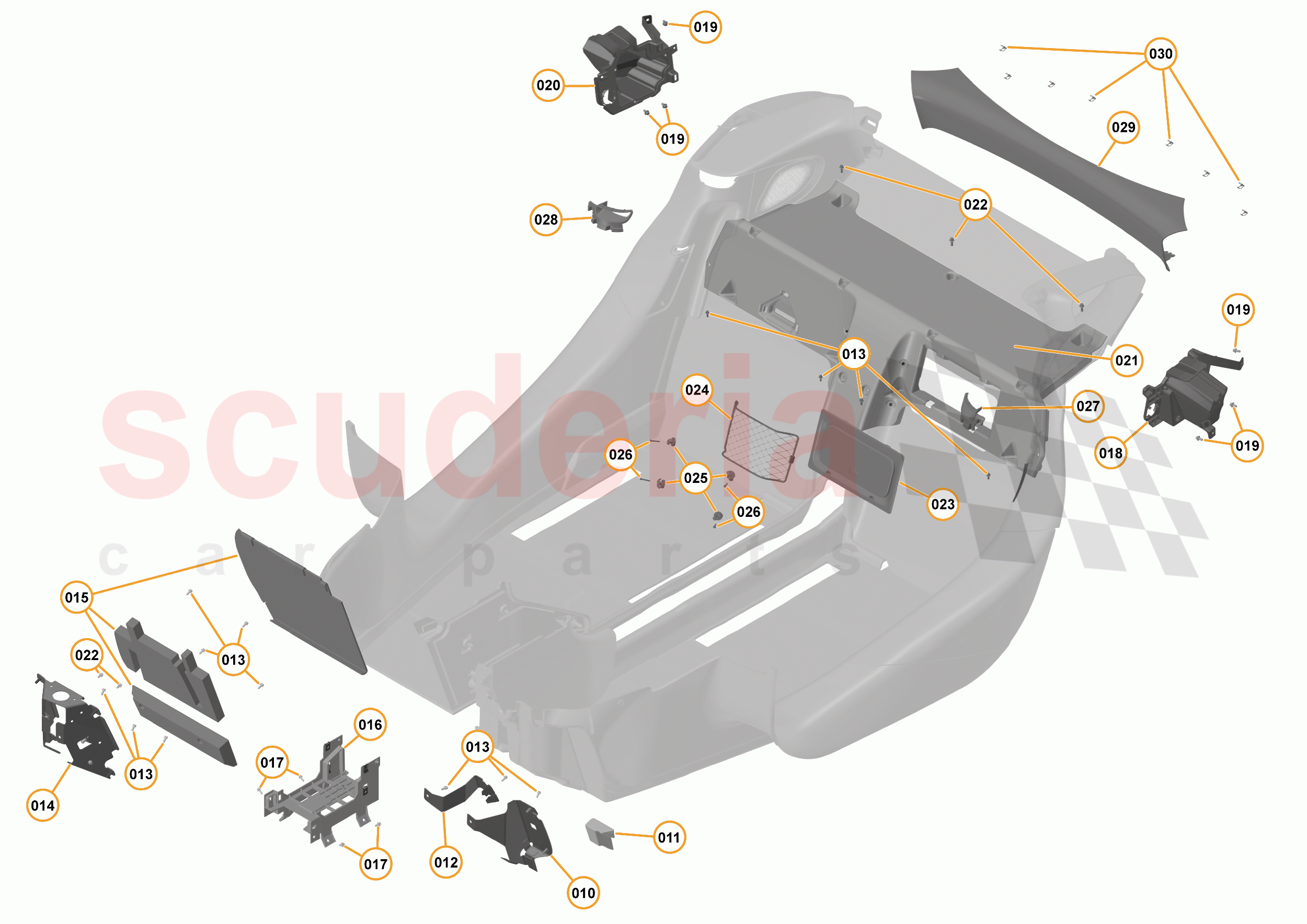

47 - INTERIOR SYSTEMS - 47.19 - LOWER & REAR TRIM - FOOTRESTS - BRACKETS - ELECTRICAL COVER - CAPPING PANEL of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11N0984CP
FOOTREST - RHD - DRIVER 		$223.40 1
TO
010 11N1491CP
Footrest - US - Driver 		- 1
PE
 Enquire
010 11N0975CP
FOOTREST - LHD - DRIVER 		- 1
PE
 Enquire
011 11N0642CP
FOAM-DRIVER FOOTRE24-RHD 		$121.84 1
TO
011 11N0643CP
FOOTREST - FOAM - LHD - DRIVER 		- 1
PE
 Enquire
012 11N1412CP
BRKT FOOTREST SUPPORT DRIVER 		$182.79 1
TO
013 00RA064
BOLT - M5X12 - HEX 		- 14
PE
 Enquire
014 11N0893CP
FOOTREST - SUPPORT - US - PASSENGER 		- 1
PE
 Enquire
014 11N0687CP
FOOTREST - SUPPORT - LHD - PASSENGER 		- 1
PE
 Enquire
014 11N0688CP
FOOTREST - SUPPORT - RHD - PASSENGER 		$284.34 1
TO
015 11N2646CP
Footrest - LHD - Passenger 		- 1
PE
 Enquire
015 11N2647CP
Footrest - RHD - Passenger 		- 1
PE
 Enquire
015 11N2648CP
Footrest - US - Passenger 		- 1
PE
 Enquire
016 11N1114CP
BRACKET - SUPPORT - HVAC 		$101.53 1
TO
017 00RA372
BOLT - HEX HEAD - LOCK - M5X25 - 8.8 		- 4
PE
 Enquire
018 13NA300CP
BRACKET - SPEAKER - QUARTER PANEL - REAR - LH
Superseded parts: 13N1609CP; 		$104.11 1
TO
019 00RX003
BOLT - M6X1X12 - HEX 		- 6
PE
 Enquire
020 13NA301CP
BRACKET - SPEAKER - QUARTER PANEL - REAR - RH
Superseded parts: 13N1610CP; 		$104.11 1
TO
021 13N2695CP
ASSY-ELECTRICAL COVER-HI DNST
Superseded parts: 13N2516CP; 		$365.57 1
TO
023 11N0887CP
FUSEBOX ACCESS PANEL - INTERIOR 		$120.83 1
TO
024 11N0308CP
Stowage Net 		- 1
PE
 Enquire
025 11N2282CP
Hook - Stowage Net 		- 4
PE
 Enquire
026 00RA315
Screw - M4x25 - Countersunk 		- 4
PE
 Enquire
028 13N0254CP
ESCUTCHEON - SEAT BELT - B-PILLAR TRIM - RH 		$82.92 1
TO
028 13N0253CP
ESCUTCHEON - SEAT BELT - B-PILLAR TRIM - LH 		$90.62 1
TO
029 13N0168CP
CAPPING PANEL - REAR 		- 1
PE
 Enquire
030 13N2697CP
Clip - Raymond - 018322 		$30.44 8
TO
