McLaren 540C Coupe - 47 - INTERIOR SYSTEMS - 47.11 - SEAT ASSEMBLY - COMPONENTS & HARDWARE - ELECTRIC

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13NA038CP Switch Pack - Driver - Andesite - RHD $1,188.33 To Order
13NA037CP Switch Pack - Driver - Andesite - LHD $1,069.07 To Order
Photo Part No Description Price (each) Stock
13NA042CP Switch Pack - Passenger - Andesite - RHD $1,208.49 To Order
13NA041CP Switch Pack - Passenger - Andesite - LHD $1,069.07 To Order
Photo Part No Description Price (each) Stock
13NA027CP Fixing Kit - Seat - ECU - Switchpack $100.68 To Order
Photo Part No Description Price (each) Stock
13NA048CP Side Valance - Outboard - Full Electric - RH - Areia $1,069.07 To Order
13NA046CP Side Valance - Outboard - Full Electric - RH - Andesite $1,168.20 To Order
Photo Part No Description Price (each) Stock
13NA052CP Side Valance - Inboard - Full Electric - RH - Areia $1,069.07 To Order
13NA050CP Side Valance - Inboard - Full Electric - RH - Andesite $1,188.33 To Order
Photo Part No Description Price (each) Stock
13NA047CP Side Valance - Outboard - Full Electric - LH - Areia $1,069.07 To Order
13NA045CP Side Valance - Outboard - Full Electric - LH - Andesite $1,208.49 To Order
Photo Part No Description Price (each) Stock
13NA051CP Side Valance - Inboard - Full Electric - LH - Areia $1,208.49 To Order
13NA049CP Side Valance - Inboard - Full Electric - LH - Andesite $1,208.49 To Order
Photo Part No Description Price (each) Stock
13NA304CP Bowden Cable - Recline - Seat Assy $243.70 To Order
13NA056CP Assy - Seat Base - Full Electric - Passenger - RHD $1,289.04 To Order
13NA053CP Assy - Seat Base - Full Electric - Driver - LHD Enquire To Order
Photo Part No Description Price (each) Stock
13NA055CP Assy - Seat Base - Full Electric - Passenger - LHD $1,140.44 To Order
13NA054CP Assy - Seat Base - Full Electric - Driver - RHD $1,289.04 To Order
Photo Part No Description Price (each) Stock
13NA030CP Seat - Backing and Cushion - Foam - Full Electric - LH $1,107.77 To Order
Photo Part No Description Price (each) Stock
13NA031CP Seat - Backing and Cushion - Foam - Full Electric - RH $1,188.33 To Order
Photo Part No Description Price (each) Stock
13NA032CP Assy - Lumbar Adjuster $1,188.33 To Order
Photo Part No Description Price (each) Stock
13NA035CP Seat - Backrest Shell - Carbon - LH $1,015.14 To Order
13NA033CP Seat - Backrest Shell - Black - LH $1,107.77 To Order
Photo Part No Description Price (each) Stock
13NA036CP Seat - Backrest Shell - Carbon - RH $1,015.14 To Order
13NA034CP Seat - Backrest Shell - Black - RH $1,107.77 To Order
Photo Part No Description Price (each) Stock
13NA025CP Pad - Heater - Backrest $191.32 To Order
Photo Part No Description Price (each) Stock
13NA026CP Pad - Heater - Cushion $241.69 To Order

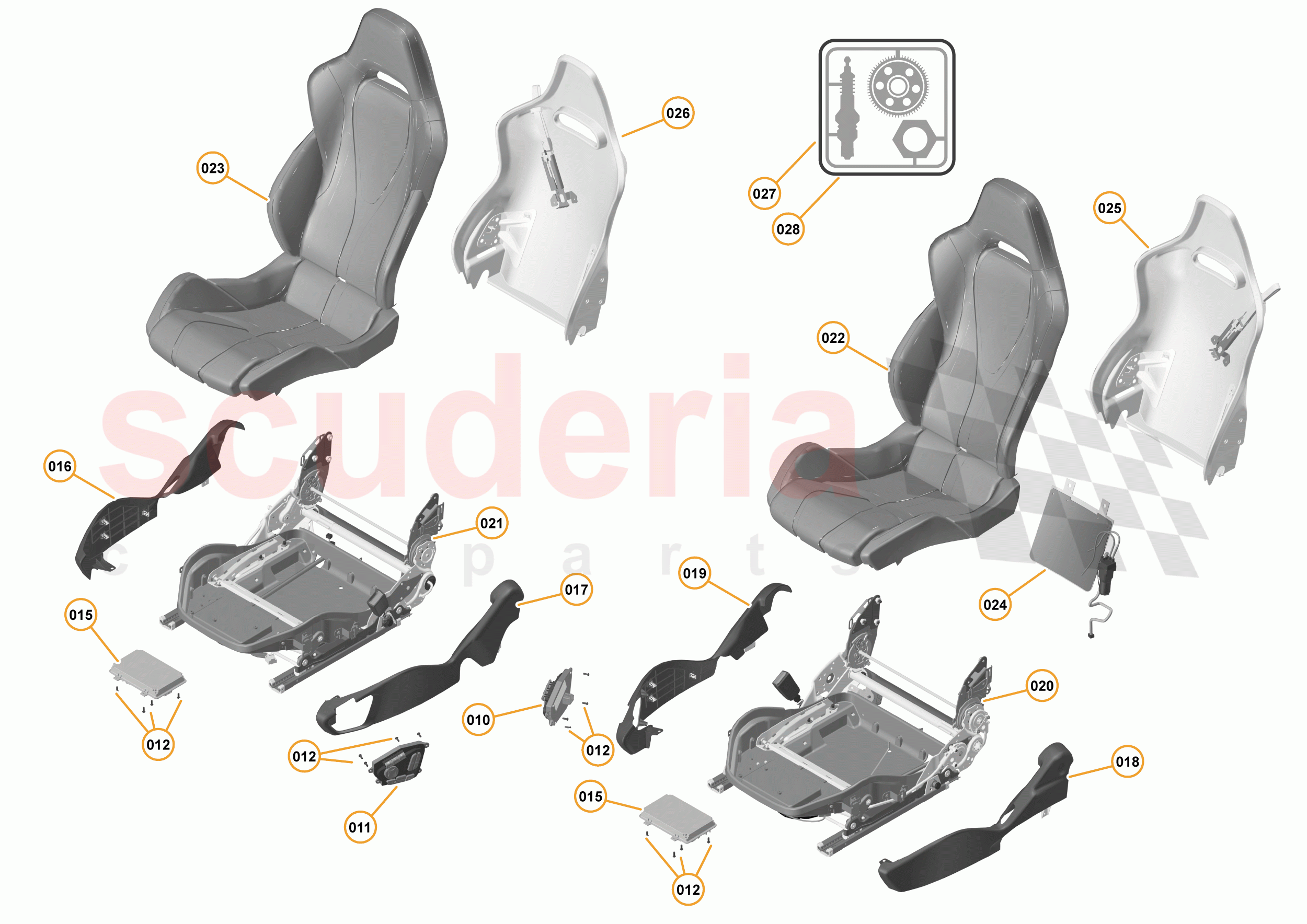

47 - INTERIOR SYSTEMS - 47.11 - SEAT ASSEMBLY - COMPONENTS & HARDWARE - ELECTRIC of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13NA038CP
Switch Pack - Driver - Andesite - RHD 		$1,188.33 1
TO
010 13NA037CP
Switch Pack - Driver - Andesite - LHD 		$1,069.07 1
TO
011 13NA042CP
Switch Pack - Passenger - Andesite - RHD 		$1,208.49 1
TO
011 13NA041CP
Switch Pack - Passenger - Andesite - LHD 		$1,069.07 1
TO
012 13NA027CP
Fixing Kit - Seat - ECU - Switchpack 		$100.68 4
TO
016 13NA048CP
Side Valance - Outboard - Full Electric - RH - Areia 		$1,069.07 1
TO
016 13NA046CP
Side Valance - Outboard - Full Electric - RH - Andesite 		$1,168.20 1
TO
017 13NA052CP
Side Valance - Inboard - Full Electric - RH - Areia 		$1,069.07 1
TO
017 13NA050CP
Side Valance - Inboard - Full Electric - RH - Andesite 		$1,188.33 1
TO
018 13NA047CP
Side Valance - Outboard - Full Electric - LH - Areia 		$1,069.07 1
TO
018 13NA045CP
Side Valance - Outboard - Full Electric - LH - Andesite 		$1,208.49 1
TO
019 13NA051CP
Side Valance - Inboard - Full Electric - LH - Areia 		$1,208.49 1
TO
019 13NA049CP
Side Valance - Inboard - Full Electric - LH - Andesite 		$1,208.49 1
TO
020 13NA304CP
Bowden Cable - Recline - Seat Assy 		$243.70 1
TO
020 13NA056CP
Assy - Seat Base - Full Electric - Passenger - RHD 		$1,289.04 1
TO
020 13NA053CP
Assy - Seat Base - Full Electric - Driver - LHD 		- 1
PE
 Enquire
021 13NA055CP
Assy - Seat Base - Full Electric - Passenger - LHD 		$1,140.44 1
TO
021 13NA054CP
Assy - Seat Base - Full Electric - Driver - RHD 		$1,289.04 1
TO
022 13NA030CP
Seat - Backing and Cushion - Foam - Full Electric - LH 		$1,107.77 1
TO
023 13NA031CP
Seat - Backing and Cushion - Foam - Full Electric - RH 		$1,188.33 1
TO
024 13NA032CP
Assy - Lumbar Adjuster 		$1,188.33 2
TO
025 13NA035CP
Seat - Backrest Shell - Carbon - LH 		$1,015.14 1
TO
025 13NA033CP
Seat - Backrest Shell - Black - LH 		$1,107.77 1
TO
026 13NA036CP
Seat - Backrest Shell - Carbon - RH 		$1,015.14 1
TO
026 13NA034CP
Seat - Backrest Shell - Black - RH 		$1,107.77 1
TO
027 13NA025CP
Pad - Heater - Backrest 		$191.32 2
TO
028 13NA026CP
Pad - Heater - Cushion 		$241.69 2
TO
