McLaren 540C Coupe - 46 - INFOTAINMENT - 46.3 - SOUND SYSTEM - 16 CHANNEL - TIER 3 - HIGH-LINE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13M1273CP LINK HARNESS - AUDIO AMPLIFIER TO HEAD UNIT - HIGH-LINE $1,188.33 To Order
Photo Part No Description Price (each) Stock
00RA185 HEX NUT - M4 - PLAIN Enquire To Order
Photo Part No Description Price (each) Stock
00RL010 CABLE TIE - SF175-50X Enquire To Order
Photo Part No Description Price (each) Stock
13M1026CP SPEAKER - 80MM - FACIA HIGH-LINE - SPIDER REAR Enquire To Order
Photo Part No Description Price (each) Stock
00RA463 SCREW- 2.9X13 - TORX - SELF TAPPER - PAN HEAD Enquire To Order
Photo Part No Description Price (each) Stock
13M1182CP TWEETER - FACIA $1,107.77 To Order
Photo Part No Description Price (each) Stock
13M1183CP SCREW - MOUNTING - FACIA TWEETER $10.63 To Order
Photo Part No Description Price (each) Stock
13M1027CP SPEAKER - 25MM - HIGH-LINE $120.83 To Order
Photo Part No Description Price (each) Stock
13M1024CP SPEAKER - 200MM - HIGH-LINE $382.67 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13M1068CP SPEAKER BRACKET - DOOR - LH - 200MM $139.02 To Order
Photo Part No Description Price (each) Stock
13M1069CP SPEAKER BRACKET - DOOR - RH - 200MM $139.02 To Order
Photo Part No Description Price (each) Stock
13M1025CP SPEAKER - 100MM - HIGH-LINE Enquire To Order
Photo Part No Description Price (each) Stock
00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
13MA088CP AUDIO AMPLIFIER - HIGH-LINE $2,034.27 To Order
Photo Part No Description Price (each) Stock
00RA582 NUT - M5 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13M1550CP BRACKET - AUDIO AMPLIFIER - HIGH-LINE $60.90 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13M1025CP SPEAKER - 100MM - HIGH-LINE Enquire To Order
Photo Part No Description Price (each) Stock
13M1073CP BRACKET - REAR QUARTER - 100MM - LH $35.54 To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13M1076CP BRACKET - REAR QUARTER - 100MM - RH $35.54 To Order

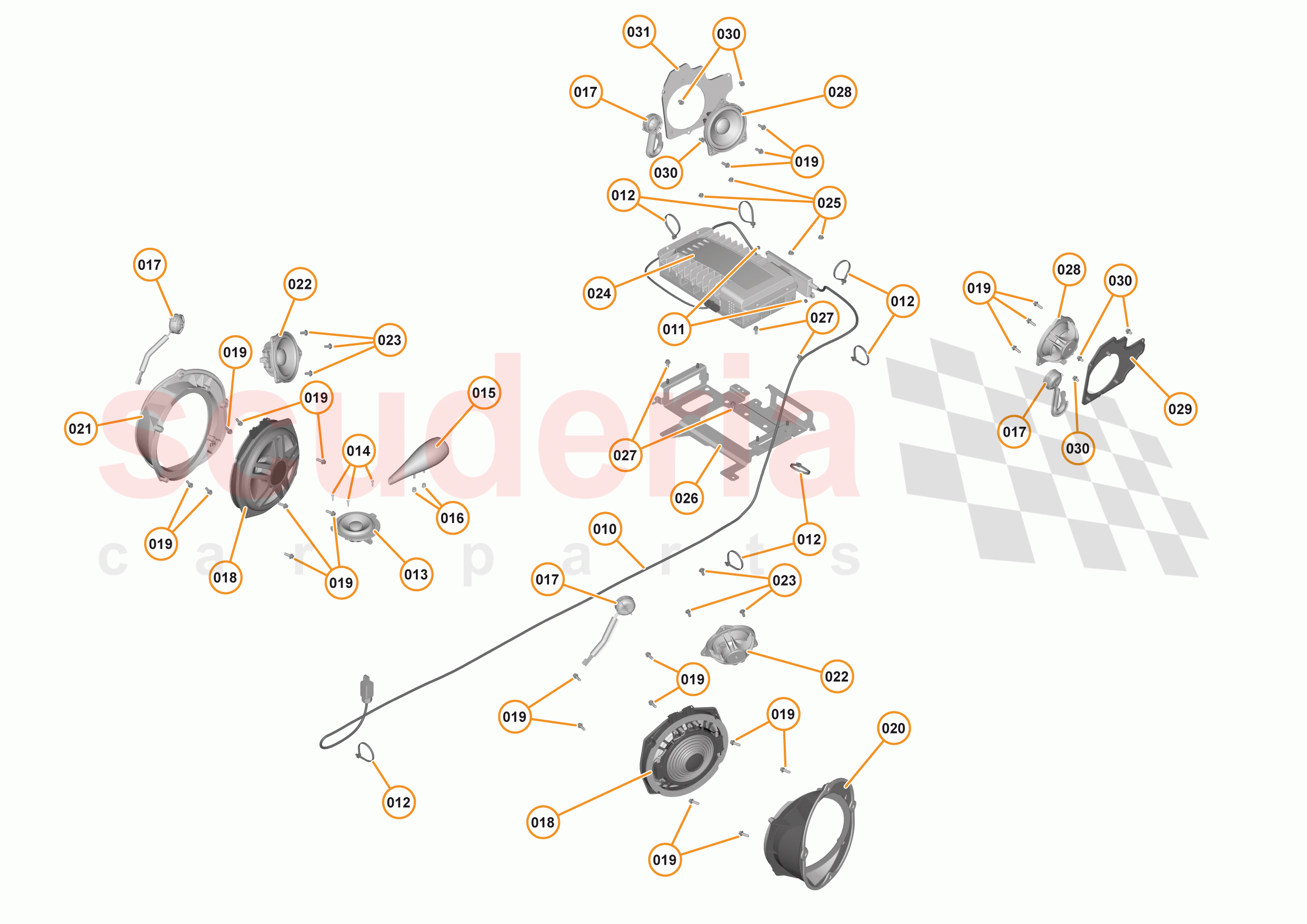

46 - INFOTAINMENT - 46.3 - SOUND SYSTEM - 16 CHANNEL - TIER 3 - HIGH-LINE of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13M1273CP
LINK HARNESS - AUDIO AMPLIFIER TO HEAD UNIT - HIGH-LINE 		$1,188.33 1
TO
011 00RA185
HEX NUT - M4 - PLAIN 		- 2
PE
 Enquire
012 00RL010
CABLE TIE - SF175-50X 		- 7
PE
 Enquire
013 13M1026CP
SPEAKER - 80MM - FACIA HIGH-LINE - SPIDER REAR 		- 1
PE
 Enquire
014 00RA463
SCREW- 2.9X13 - TORX - SELF TAPPER - PAN HEAD 		- 3
PE
 Enquire
015 13M1182CP
TWEETER - FACIA 		$1,107.77 1
TO
016 13M1183CP
SCREW - MOUNTING - FACIA TWEETER 		$10.63 2
TO
017 13M1027CP
SPEAKER - 25MM - HIGH-LINE 		$120.83 4
TO
018 13M1024CP
SPEAKER - 200MM - HIGH-LINE 		$382.67 2
TO
019 00RX001
BOLT - M5X16 - HEX 		- 22
PE
 Enquire
020 13M1068CP
SPEAKER BRACKET - DOOR - LH - 200MM 		$139.02 1
TO
021 13M1069CP
SPEAKER BRACKET - DOOR - RH - 200MM 		$139.02 1
TO

13M1025CP

SPEAKER - 100MM - HIGH-LINE

 -
023 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 6
PE
 Enquire
024 13MA088CP
AUDIO AMPLIFIER - HIGH-LINE
Superseded parts: 13M1546CP; 		$2,034.27 1
TO
025 00RA582
NUT - M5 - HEX 		- 4
PE
 Enquire
026 13M1550CP
BRACKET - AUDIO AMPLIFIER - HIGH-LINE
Superseded parts: 13M1308CP; 		$60.90 1
TO
027 00RA064
BOLT - M5X12 - HEX 		- 4
PE
 Enquire
029 13M1073CP
BRACKET - REAR QUARTER - 100MM - LH 		$35.54 1
TO
030 00RA165
BOLT - M5X8 - HEX 		- 6
PE
 Enquire
031 13M1076CP
BRACKET - REAR QUARTER - 100MM - RH 		$35.54 1
TO
