26 - Fuel Tank - 26.2 - Fuel Tank Retention

McLaren 540C Coupe

Find Your Part

McLaren 540C Coupe - 26 - FUEL TANK - 26.2 - FUEL TANK RETENTION

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13K0073CP PAD - FUEL TANK - UPPER $40.60 To Order
Photo Part No Description Price (each) Stock
13K0074CP PAD - FUEL TANK - BULKHEAD - LOWER Enquire To Order
Photo Part No Description Price (each) Stock
13K0075CP PAD - FUEL TANK - BULKHEAD - UPPER $40.60 To Order
Photo Part No Description Price (each) Stock
13K0076CP PAD - FUEL TANK - CROSS MEMBER $15.21 To Order
Photo Part No Description Price (each) Stock
13K0070CP PAD - FUEL TANK - REAR $13.18 To Order
Photo Part No Description Price (each) Stock
11K0105CP STUD PLATE - M6X18 - FUEL TANK $35.54 To Order
Photo Part No Description Price (each) Stock
13K0022CP Bracket - Fuel Tank - Lower $18.26 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RG010 NUT PROTECTOR - M6 -REEVITE Enquire To Order
Photo Part No Description Price (each) Stock
11K0077CP Mounting Strap - Fuel Tank $50.76 To Order
Photo Part No Description Price (each) Stock
13K0021CP BUSH STRAP - FUEL TANK $7.09 To Order
Photo Part No Description Price (each) Stock
11K0110CP Turnbuckle - Strap - Fuel Tank $35.54 To Order
Photo Part No Description Price (each) Stock
14KA046CP MOUNTING STRAP - MOULDED - FUEL TANK $14.21 To Order
Photo Part No Description Price (each) Stock
11K0139CP Bracket - Fuel Tank Mounting - Tensioner $132.00 To Order
Photo Part No Description Price (each) Stock
11K0109CP Nut - Strap - Fuel Tank $13.18 To Order
Photo Part No Description Price (each) Stock
11K0102CP Spacer - Turnbuckle 8mm Long - Fuel Tank $30.44 To Order
Photo Part No Description Price (each) Stock
11K0107CP RETAINING STRAP - FUEL TANK - LH Enquire To Order
Photo Part No Description Price (each) Stock
11K0118CP RETAINING STRAP - FUEL TANK - RH Enquire To Order
Photo Part No Description Price (each) Stock
11K0135CP STUD PLATE - M6X33 - FUEL TANK $35.54 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order

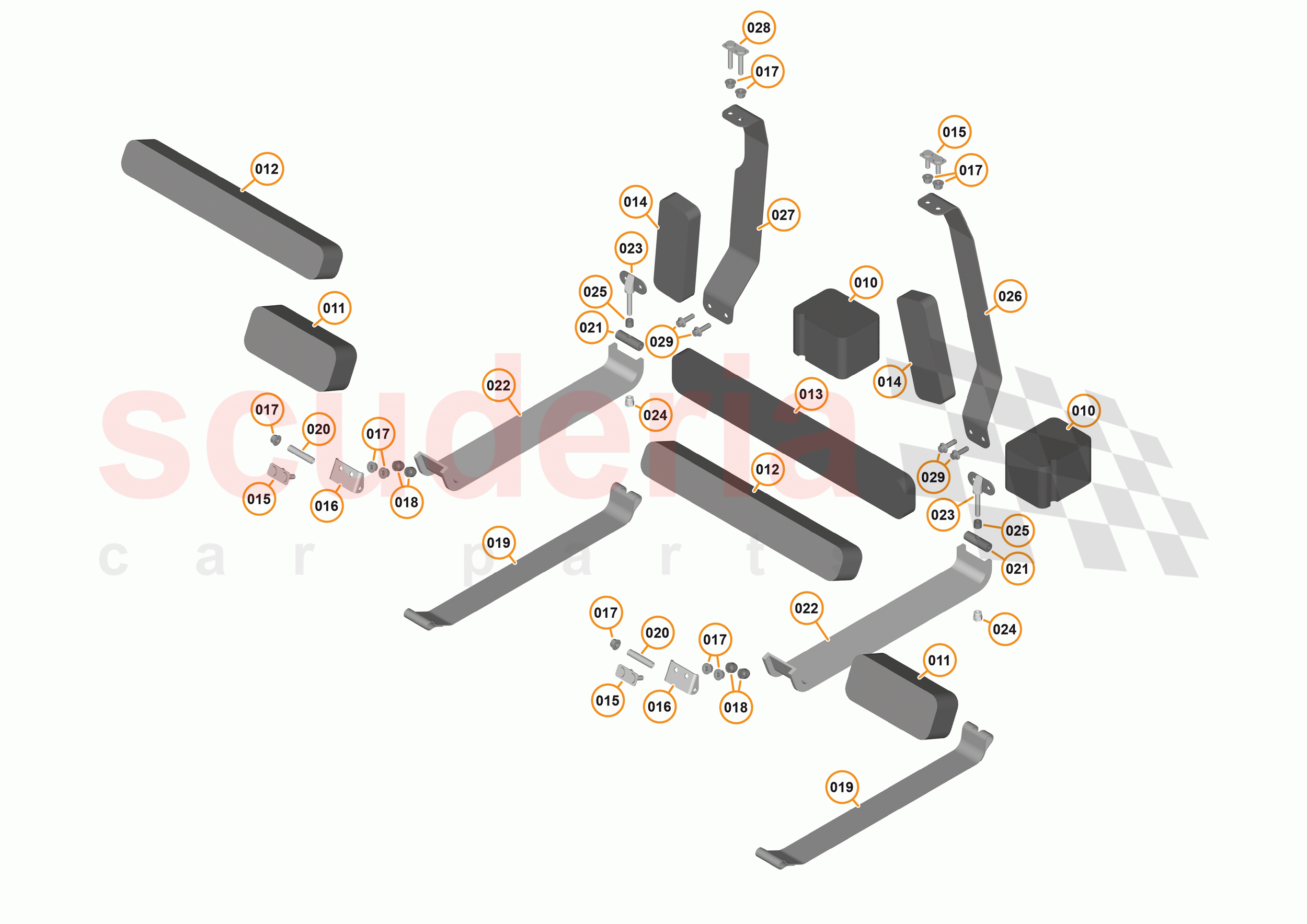

26 - FUEL TANK - 26.2 - FUEL TANK RETENTION of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13K0073CP
PAD - FUEL TANK - UPPER 		$40.60 2
TO
011 13K0074CP
PAD - FUEL TANK - BULKHEAD - LOWER 		- 2
PE
 Enquire
012 13K0075CP
PAD - FUEL TANK - BULKHEAD - UPPER 		$40.60 2
TO
013 13K0076CP
PAD - FUEL TANK - CROSS MEMBER 		$15.21 1
TO
014 13K0070CP
PAD - FUEL TANK - REAR 		$13.18 2
TO
015 11K0105CP
STUD PLATE - M6X18 - FUEL TANK 		$35.54 3
TO
016 13K0022CP
Bracket - Fuel Tank - Lower 		$18.26 2
TO
017 00RA055
NUT - M6 - LOCKING - HEX 		- 10
PE
 Enquire
018 00RG010
NUT PROTECTOR - M6 -REEVITE 		- 4
PE
 Enquire
019 11K0077CP
Mounting Strap - Fuel Tank 		$50.76 2
TO
020 13K0021CP
BUSH STRAP - FUEL TANK
Superseded parts: 11K0111CP; 		$7.09 2
TO
021 11K0110CP
Turnbuckle - Strap - Fuel Tank 		$35.54 2
TO
022 14KA046CP
MOUNTING STRAP - MOULDED - FUEL TANK 		$14.21 2
TO
023 11K0139CP
Bracket - Fuel Tank Mounting - Tensioner 		$132.00 2
TO
024 11K0109CP
Nut - Strap - Fuel Tank 		$13.18 2
TO
025 11K0102CP
Spacer - Turnbuckle 8mm Long - Fuel Tank 		$30.44 2
TO
026 11K0107CP
RETAINING STRAP - FUEL TANK - LH 		- 2
PE
 Enquire
027 11K0118CP
RETAINING STRAP - FUEL TANK - RH 		- 2
PE
 Enquire
028 11K0135CP
STUD PLATE - M6X33 - FUEL TANK 		$35.54 2
TO
029 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4
PE
 Enquire
