23 - Brakes - Systems - 23.2 - Brake Boost System

McLaren 540C Coupe

Find Your Part

McLaren 540C Coupe - 23 - BRAKES - SYSTEMS - 23.2 - BRAKE BOOST SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11E0022CP HEATSHIELD-WHEEL S24SOR $50.76 To Order
Photo Part No Description Price (each) Stock
13C0198CP ASSY-RESERVOIR-BRAKE FLUID $264.02 To Order
Photo Part No Description Price (each) Stock
13C0197CP BRACKET - BRAKE FLUID RESERVOIR - RHD $25.37 To Order
13C0196CP BRACKET - BRAKE FLUID RESERVOIR - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RA373 SCREW - HEX HEAD - LOCK - M6X25 - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
13C0271CP Brake Booster - CCM $1,198.32 To Order
13C0315CP Brake Booster - Iron $1,035.84 To Order
Photo Part No Description Price (each) Stock
11C0154CP BRKT-MNTG-BOOSTER 24 $345.26 To Order
Photo Part No Description Price (each) Stock
00RA056 NUT - M8-8 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
13C0205CP ABS MODULATOR 46 PIN EUCON - PRE-FILLED $1,726.40 To Order
Photo Part No Description Price (each) Stock
13C0182CP BRACKET - ABS MODULATOR $60.42 To Order
Photo Part No Description Price (each) Stock
11F0225CP BOLT-CAP HEAD-SOCK24-M10X18 $76.15 To Order
Photo Part No Description Price (each) Stock
11C0045CP Mount - Anti-Vibration - Rubber $40.60 To Order
Photo Part No Description Price (each) Stock
11M0430CP SENSOR - WHEEL SPEED - FRONT $201.40 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0432CP SENSOR - WHEEL SPEED - REAR $201.40 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
13M0801CP VACUUM SENSOR WITH CHECK VALVE $75.52 To Order

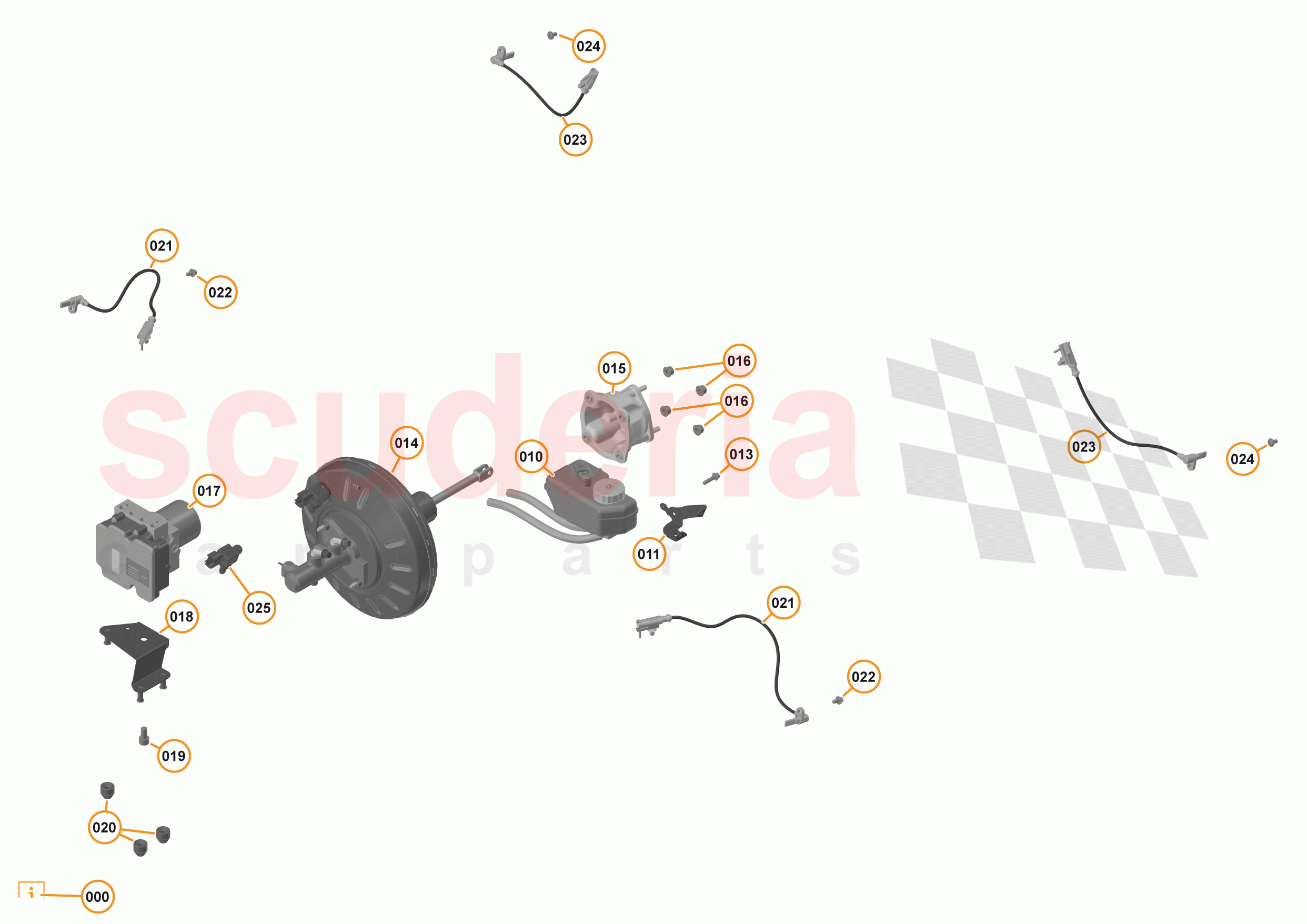

23 - BRAKES - SYSTEMS - 23.2 - BRAKE BOOST SYSTEM of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11E0022CP
HEATSHIELD-WHEEL S24SOR 		$50.76 4
TO
010 13C0198CP
ASSY-RESERVOIR-BRAKE FLUID 		$264.02 1
TO
011 13C0197CP
BRACKET - BRAKE FLUID RESERVOIR - RHD 		$25.37 1
TO
011 13C0196CP
BRACKET - BRAKE FLUID RESERVOIR - LHD 		- 1
PE
 Enquire
013 00RA373
SCREW - HEX HEAD - LOCK - M6X25 - 8.8 		- 1
PE
 Enquire
014 13C0271CP
Brake Booster - CCM 		$1,198.32 1
TO
014 13C0315CP
Brake Booster - Iron 		$1,035.84 1
TO
015 11C0154CP
BRKT-MNTG-BOOSTER 24 		$345.26 1
TO
016 00RA056
NUT - M8-8 - LOCK HEX 		- 4
PE
 Enquire
017 13C0205CP
ABS MODULATOR 46 PIN EUCON - PRE-FILLED 		$1,726.40 1
TO
018 13C0182CP
BRACKET - ABS MODULATOR 		$60.42 1
TO
019 11F0225CP
BOLT-CAP HEAD-SOCK24-M10X18 		$76.15 1
TO
020 11C0045CP
Mount - Anti-Vibration - Rubber 		$40.60 3
TO
021 11M0430CP
SENSOR - WHEEL SPEED - FRONT 		$201.40 2
TO
022 00RX003
BOLT - M6X1X12 - HEX 		- 2
PE
 Enquire
023 11M0432CP
SENSOR - WHEEL SPEED - REAR 		$201.40 2
TO
024 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 2
PE
 Enquire
025 13M0801CP
VACUUM SENSOR WITH CHECK VALVE 		$75.52 1
TO
