17 - Suspension - Rear - 17.2 - Uprights Rear

McLaren 540C Coupe

Find Your Part

McLaren 540C Coupe - 17 - SUSPENSION - REAR - 17.2 - UPRIGHTS REAR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13BA193CP Upright - Suspension - Rear - LH $1,421.74 To Order
Photo Part No Description Price (each) Stock
13BA194CP Upright - Suspension - Rear - RH $1,421.74 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $65.98 To Order
Photo Part No Description Price (each) Stock
11B0993CP SCREW - M3X12 - HEX $2.17 To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $45.68 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA230 BOLT-HEX HD-FLANGE-M14X110X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
11B0518CP TOPHAT - SPACER - WISHBONE - 24DIA. $15.21 To Order
Photo Part No Description Price (each) Stock
11B0519CP TOPHAT - SPACER - WISHBONE - 18DIA. $55.84 To Order
Photo Part No Description Price (each) Stock
11B0204CP TOPHAT - TRACKROD - OUTER BALL JOINT - 0MM $55.84 To Order
Photo Part No Description Price (each) Stock
11B0322CP WHEEL HUB ASSY - BEARING $649.93 To Order
Photo Part No Description Price (each) Stock
11B0630CP PROTECTOR CAP - HUB $30.01 To Order
Photo Part No Description Price (each) Stock
11B0595CP Bolt - M12x30 - Hex $40.60 To Order
Photo Part No Description Price (each) Stock
11B0596CP Washer - M12x23x2 $35.54 To Order
Photo Part No Description Price (each) Stock
11B0718CP HEATSHIELD-LOWER-O06ER BUSH $60.90 To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order

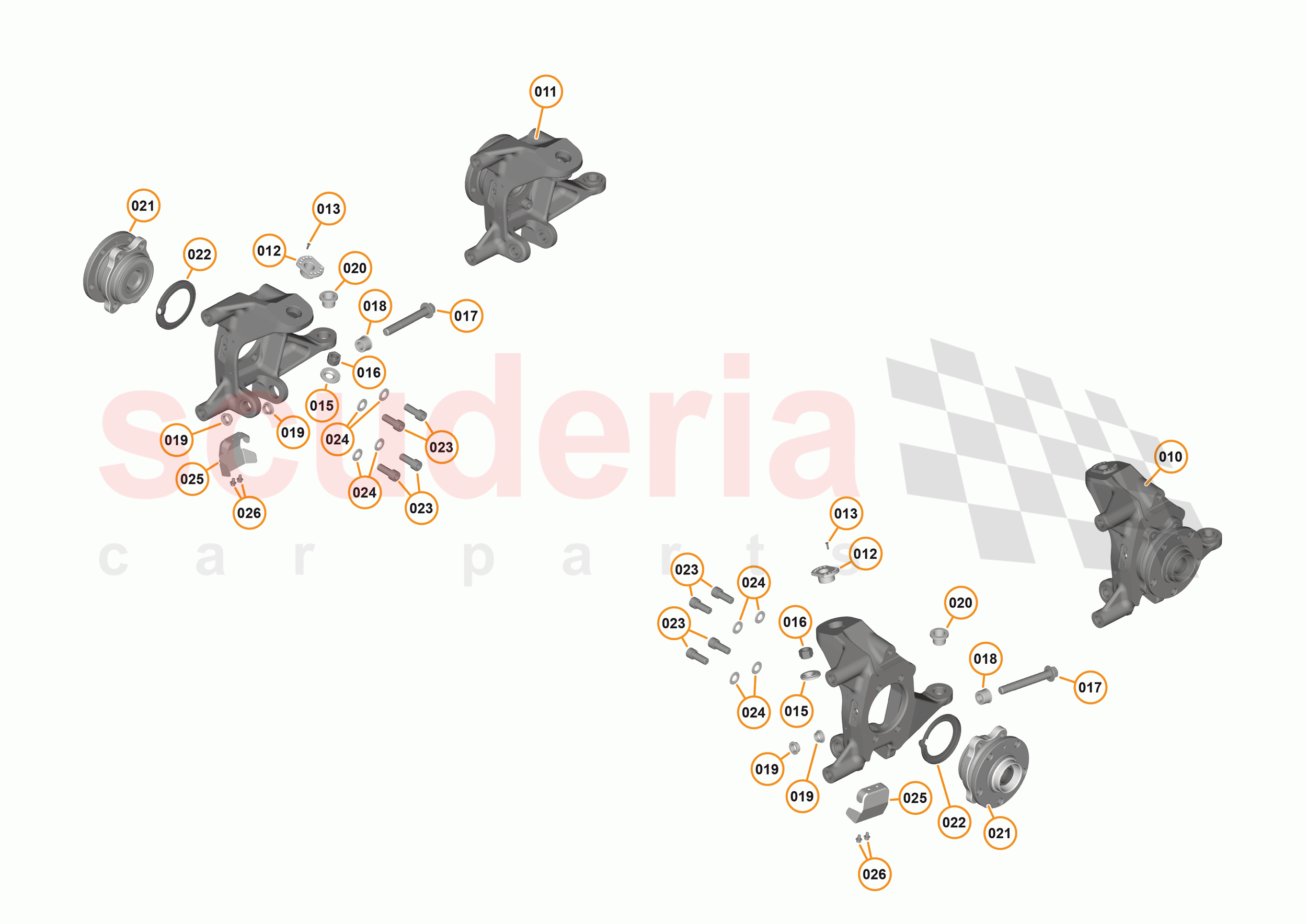

17 - SUSPENSION - REAR - 17.2 - UPRIGHTS REAR of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13BA193CP
Upright - Suspension - Rear - LH
Superseded parts: 13B1271CP; 		$1,421.74 1
TO
011 13BA194CP
Upright - Suspension - Rear - RH
Superseded parts: 13B1270CP; 		$1,421.74 1
TO
012 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$65.98 2
TO
013 11B0993CP
SCREW - M3X12 - HEX 		$2.17 2
TO
015 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$45.68 2
TO
016 00RA229
NUT - M14X1.5 - LOCKED HEX 		- 2
PE
 Enquire
017 00RA230
BOLT-HEX HD-FLANGE-M14X110X2.0 		- 2
PE
 Enquire
018 11B0518CP
TOPHAT - SPACER - WISHBONE - 24DIA. 		$15.21 2
TO
019 11B0519CP
TOPHAT - SPACER - WISHBONE - 18DIA. 		$55.84 4
TO
020 11B0204CP
TOPHAT - TRACKROD - OUTER BALL JOINT - 0MM 		$55.84 2
TO
021 11B0322CP
WHEEL HUB ASSY - BEARING 		$649.93 2
TO
022 11B0630CP
PROTECTOR CAP - HUB 		$30.01 2
TO
023 11B0595CP
Bolt - M12x30 - Hex 		$40.60 8
TO
024 11B0596CP
Washer - M12x23x2 		$35.54 8
TO
025 11B0718CP
HEATSHIELD-LOWER-O06ER BUSH 		$60.90 2
TO
026 00RA165
BOLT - M5X8 - HEX 		- 4
PE
 Enquire
