16 - Suspension - Front - 16.3 - Transverse Links Front

McLaren 540C Coupe

Find Your Part

McLaren 540C Coupe - 16 - SUSPENSION - FRONT - 16.3 - TRANSVERSE LINKS FRONT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13B1170CP Wishbone - Front - Upper - LH - M10 $765.36 To Order
Photo Part No Description Price (each) Stock
13B1171CP Wishbone - Front - Upper - RH - M10 $765.36 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13B1257CP Wishbone - Front - Lower - LH $1,279.57 To Order
Photo Part No Description Price (each) Stock
13B1258CP Wishbone - Front - Lower - RH $1,279.57 To Order
Photo Part No Description Price (each) Stock
13B0681CP SENSOR - DISPLACEMENT $121.84 To Order
Photo Part No Description Price (each) Stock
11B0761CP BRKT-SENSOR-DISPLA24MENT-FR-LH $50.76 To Order
Photo Part No Description Price (each) Stock
11B0762CP Bracket - Sensor - Displacement - Front - RH $50.76 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0975CP Link Rod - Sensor - Displacement - Ball Socket - Front $60.90 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0763CP BRKT-W-BONE DISPLA24MENT SNSR- $96.45 To Order
Photo Part No Description Price (each) Stock
11B0764CP BRKT-W-BONE DISPLA24MENT SNSR- $40.60 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B1552CP Ball Joint - Gaiter - Kit $50.34 To Order

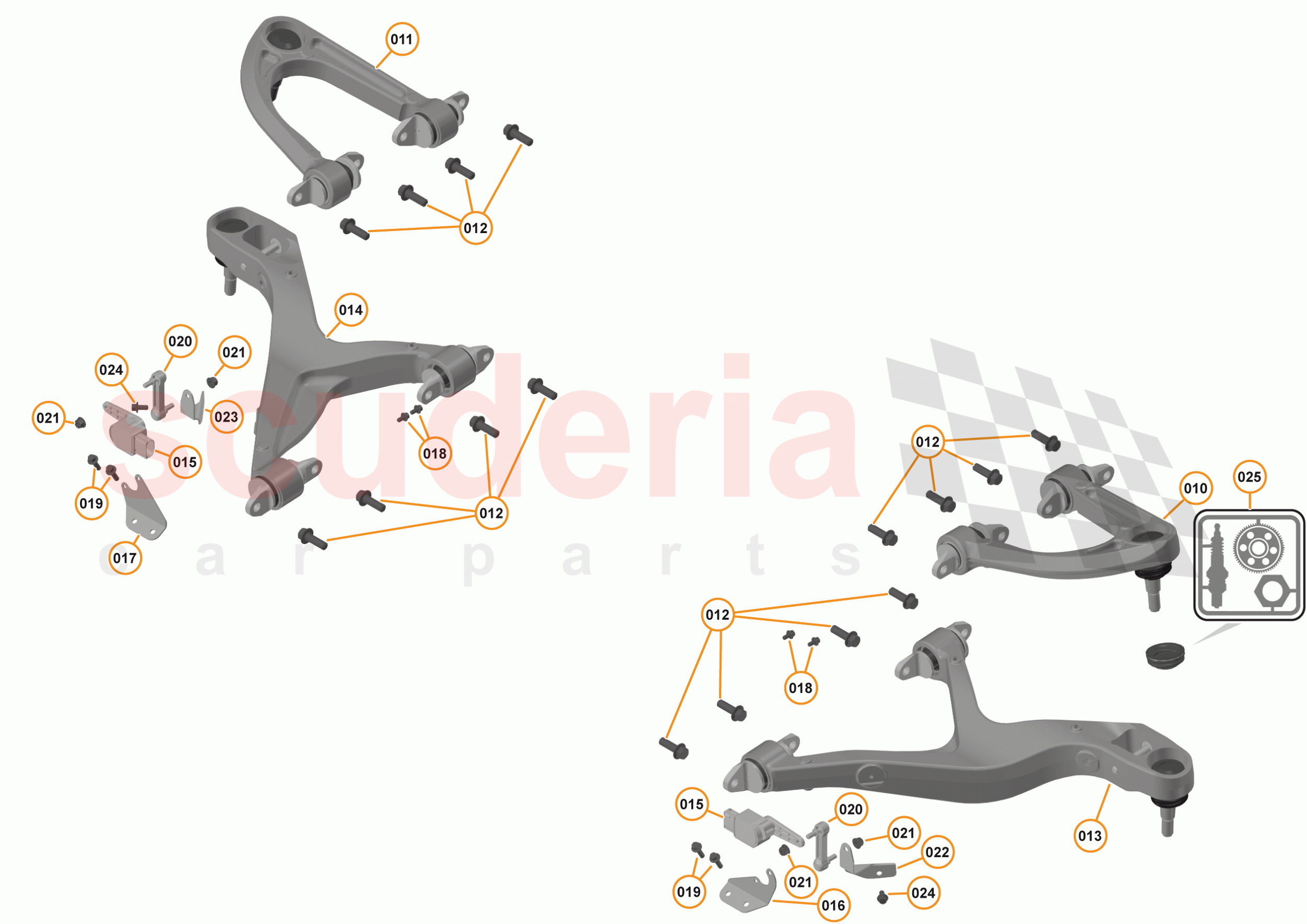

16 - SUSPENSION - FRONT - 16.3 - TRANSVERSE LINKS FRONT of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13B1170CP
Wishbone - Front - Upper - LH - M10 		$765.36 1
TO
011 13B1171CP
Wishbone - Front - Upper - RH - M10 		$765.36 1
TO
012 00RA457
SCREW - M10X30-10.9 - HEX 		- 16
PE
 Enquire
013 13B1257CP
Wishbone - Front - Lower - LH
Superseded parts: 13B1172CP; 		$1,279.57 1
TO
014 13B1258CP
Wishbone - Front - Lower - RH
Superseded parts: 13B1173CP; 		$1,279.57 1
TO
015 13B0681CP
SENSOR - DISPLACEMENT 		$121.84 2
TO
016 11B0761CP
BRKT-SENSOR-DISPLA24MENT-FR-LH 		$50.76 1
TO
017 11B0762CP
Bracket - Sensor - Displacement - Front - RH 		$50.76 1
TO
018 00RA087
SCREW - M5X10 - HEX 		- 4
PE
 Enquire
019 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4
PE
 Enquire
020 11B0975CP
Link Rod - Sensor - Displacement - Ball Socket - Front 		$60.90 2
TO
021 00RA055
NUT - M6 - LOCKING - HEX 		- 4
PE
 Enquire
022 11B0763CP
BRKT-W-BONE DISPLA24MENT SNSR- 		$96.45 1
TO
023 11B0764CP
BRKT-W-BONE DISPLA24MENT SNSR- 		$40.60 1
TO
024 00RX003
BOLT - M6X1X12 - HEX 		- 2
PE
 Enquire
025 11B1552CP
Ball Joint - Gaiter - Kit 		$50.34 4
TO
026 14BA246CP
WISHBONE BUSH 		$162.46 1
TO
027 14BA255CP
WISHBONE BUSH - 3.5MM 		$162.46 1
TO
