McLaren 540C Coupe - 6 - CLOSURES - 6.6 - DOOR LATCH

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA541 SCREW - COUNTERSUNK - HEX - M6X10 Enquire To Order
Photo Part No Description Price (each) Stock
11A8742CP DOOR LATCH SOFT CLOSE LH $1,232.18 To Order
11A8744CP Door Latch - LH $1,079.63 To Order
Photo Part No Description Price (each) Stock
13A5769CP DOOR LATCH ESCUTCHEON - LH $100.68 To Order
Photo Part No Description Price (each) Stock
13A6053CP BRACKET - KEY BARREL - EXTERNAL $19.27 To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
13A1364CP FOAM PAD - KEY BARREL $3.44 To Order
Photo Part No Description Price (each) Stock
13AA681CP LEVER - EXTERNAL KEY BARREL $25.68 To Order
Photo Part No Description Price (each) Stock
11A8743CP DOOR LATCH SOFT CLOSE RH $1,232.18 To Order
11A8745CP Door Latch - RH $1,079.63 To Order
Photo Part No Description Price (each) Stock
13A5768CP DOOR LATCH ESCUTCHEON - RH $100.68 To Order
Photo Part No Description Price (each) Stock
13A5481CP BRACKET - DOOR LATCH - LH Enquire To Order
Photo Part No Description Price (each) Stock
13A5480CP BRACKET - DOOR LATCH - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA081 SCREW - TORX - PAN - M6X16-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RC062 WASHER - M6 - SERRATED Enquire To Order
Photo Part No Description Price (each) Stock
13AA332CP STRIKER - DOOR $40.26 To Order
Photo Part No Description Price (each) Stock
00RA551 SCREW - COUNTERSUNK - HEX - M8X16 Enquire To Order
Photo Part No Description Price (each) Stock
13A7262CP OVERMOULD - DOOR STRIKER - LH $40.26 To Order
Photo Part No Description Price (each) Stock
13M1192CP SWITCH - DOOR LOCK - TOUCH SENSITIVE $241.69 To Order
Photo Part No Description Price (each) Stock
13A7264CP OVERMOULD - DOOR STRIKER - RH $40.26 To Order
Photo Part No Description Price (each) Stock
13MA028CP SWITCH - DOOR LOCK - PIEZOELECTRIC $241.69 To Order
Photo Part No Description Price (each) Stock
00RB211 CLIP - PIPE - WINDSCREEN WASHER Enquire To Order

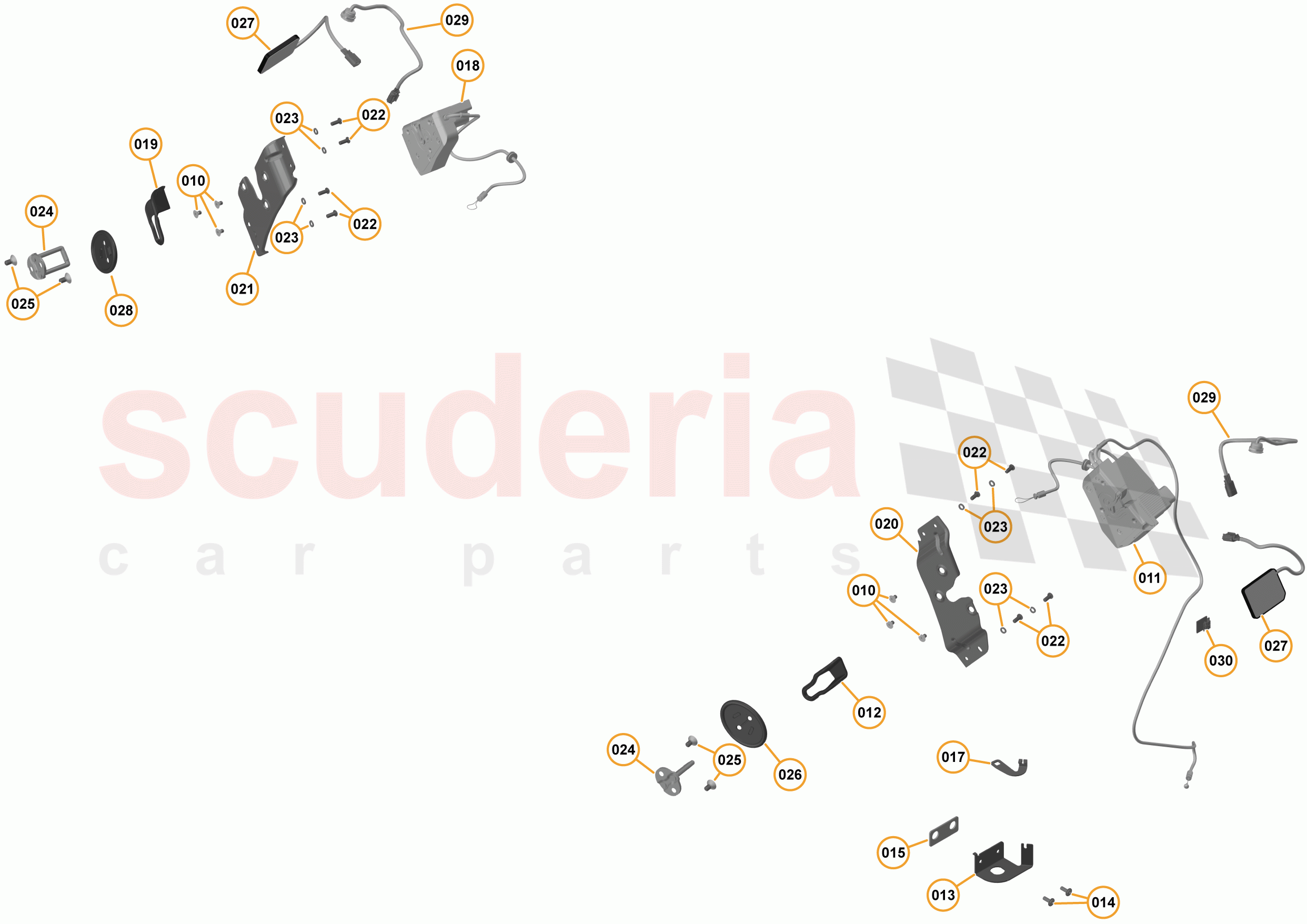

6 - CLOSURES - 6.6 - DOOR LATCH of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA541
SCREW - COUNTERSUNK - HEX - M6X10 		- 6
PE
 Enquire
011 11A8742CP
DOOR LATCH SOFT CLOSE LH 		$1,232.18 1
TO
011 11A8744CP
Door Latch - LH 		$1,079.63 1
TO
012 13A5769CP
DOOR LATCH ESCUTCHEON - LH 		$100.68 1
TO
013 13A6053CP
BRACKET - KEY BARREL - EXTERNAL 		$19.27 1
TO
014 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 2
PE
 Enquire
015 13A1364CP
FOAM PAD - KEY BARREL 		$3.44 1
TO
017 13AA681CP
LEVER - EXTERNAL KEY BARREL
Superseded parts: 13A2255CP; 		$25.68 1
TO
018 11A8743CP
DOOR LATCH SOFT CLOSE RH 		$1,232.18 1
TO
018 11A8745CP
Door Latch - RH 		$1,079.63 1
TO
019 13A5768CP
DOOR LATCH ESCUTCHEON - RH 		$100.68 1
TO
020 13A5481CP
BRACKET - DOOR LATCH - LH 		- 1
PE
 Enquire
021 13A5480CP
BRACKET - DOOR LATCH - RH 		- 1
PE
 Enquire
022 00RA081
SCREW - TORX - PAN - M6X16-8.8 		- 8
PE
 Enquire
023 00RC062
WASHER - M6 - SERRATED 		- 8
PE
 Enquire
024 13AA332CP
STRIKER - DOOR
Superseded parts: 13A1360CP; 		$40.26 2
TO
025 00RA551
SCREW - COUNTERSUNK - HEX - M8X16 		- 4
PE
 Enquire
026 13A7262CP
OVERMOULD - DOOR STRIKER - LH
Superseded parts: 13A5037CP; 		$40.26 1
TO
027 13M1192CP
SWITCH - DOOR LOCK - TOUCH SENSITIVE 		$241.69 2
TO
028 13A7264CP
OVERMOULD - DOOR STRIKER - RH
Superseded parts: 13A5037CP; 		$40.26 1
TO
029 13MA028CP
SWITCH - DOOR LOCK - PIEZOELECTRIC 		$241.69 2
TO
030 00RB211
CLIP - PIPE - WINDSCREEN WASHER 		- 1
PE
 Enquire
