McLaren 540C Coupe - 12 - DUCTS, VENTS & FLOORS - 12.2 - SIDE DUCTS & VENTS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13AA650MP ASSY PNL BODYSIDE RAD INLET UPPER - LH - BLACK $203.09 To Order
13A5502CP BODYSIDE PANEL - RADIATOR INTAKE UPPER - CARBON - LH $1,523.29 To Order
13AA684CP BODYSIDE PANEL - RADIATOR INTAKE UPPER - LH $483.38 To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RB183 CLIP - U NUT - M6 Enquire To Order
Photo Part No Description Price (each) Stock
13A5501CP BODYSIDE PANEL - RADIATOR INTAKE UPPER - CARBON - RH $1,523.29 To Order
13AA685CP BODYSIDE PANEL - RADIATOR INTAKE UPPER - RH $302.10 To Order
Photo Part No Description Price (each) Stock
13A6055CP BODYSIDE PANEL - RADIATOR INTAKE - CARBON - LH $2,234.17 To Order
13A5386CP Bodyside Panel - Radiator Intake - LH $422.96 To Order
Photo Part No Description Price (each) Stock
13A6058CP BODYSIDE PANEL - RADIATOR INTAKE - CARBON - RH $1,848.27 To Order
13A5388CP Bodyside Panel - Radiator Intake - RH $422.96 To Order
Photo Part No Description Price (each) Stock
13A6527CP Side Intake Duct - Outer - Lower - LH $160.20 To Order
Photo Part No Description Price (each) Stock
13AA327CP SIDE INTAKE DUCT - OUTER - UPPER - LH - FOR LOCK SWITCH $110.76 To Order
13A6486CP Side Intake Duct - Outer - Upper - LH - For Lock Sensor $109.82 To Order
Photo Part No Description Price (each) Stock
13A6166CP GRILLE - SIDE INTAKE DUCT - LH $261.81 To Order
Photo Part No Description Price (each) Stock
11AA037CP FOAM - DUCT - RADIATOR - HVAC PIPE - LH - MY2015 $14.21 To Order
Photo Part No Description Price (each) Stock
00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
00RB166 CLIP - PANEL Enquire To Order
Photo Part No Description Price (each) Stock
00RB194 CLIP - U NUT - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
13A6528CP Side Intake Duct - Outer - Lower - RH $171.18 To Order
Photo Part No Description Price (each) Stock
13AA328CP Side Intake Duct - Outer - Upper - RH - For Lock Switch $110.76 To Order
13A6487CP Side Intake Duct - Outer - Upper - RH - For Lock Sensor $109.82 To Order
Photo Part No Description Price (each) Stock
13A6169CP GRILLE - SIDE INTAKE DUCT - RH $261.81 To Order
Photo Part No Description Price (each) Stock
13A4613CP SIDE INTAKE DUCT - INNER - LH - CARBON $935.35 To Order
13A6586CP SIDE INTAKE DUCT - INNER - LH $342.38 To Order
Photo Part No Description Price (each) Stock
13A4622CP SIDE INTAKE DUCT - INNER - RH - CARBON $935.35 To Order
13A6587CP SIDE INTAKE DUCT - INNER - RH $342.38 To Order
Photo Part No Description Price (each) Stock
13A6488CP SEAL - SIDE DUCT - UPPER $3.84 To Order
Photo Part No Description Price (each) Stock
13A4156CP FOAM - SIDE DUCT UPPER - REAR $5.21 To Order
Photo Part No Description Price (each) Stock
13A4307CP FOAM - SIDE DUCT OUTER - LOWER $17.10 To Order
Photo Part No Description Price (each) Stock
13A3570CP FOAM - SEAL - SIDE DUCT $17.10 To Order
Photo Part No Description Price (each) Stock
13A3568CP RAD DUCT FOAM REAR $13.06 To Order

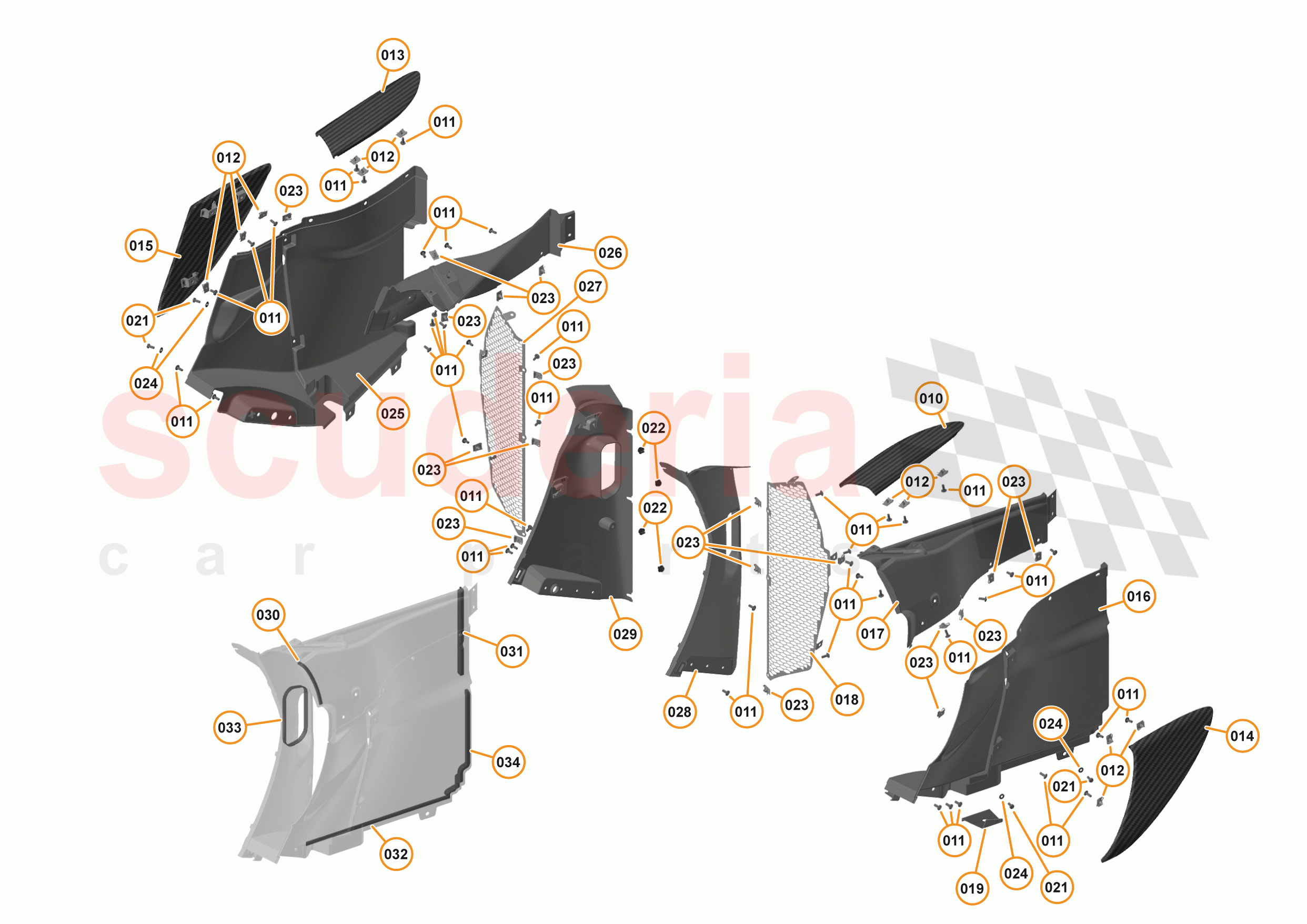

12 - DUCTS, VENTS & FLOORS - 12.2 - SIDE DUCTS & VENTS of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13AA650MP
ASSY PNL BODYSIDE RAD INLET UPPER - LH - BLACK 		$203.09 1
TO
010 13A5502CP
BODYSIDE PANEL - RADIATOR INTAKE UPPER - CARBON - LH 		$1,523.29 1
TO
010 13AA684CP
BODYSIDE PANEL - RADIATOR INTAKE UPPER - LH
Superseded parts: 13A5468CP; 		$483.38 1
TO
011 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 44
PE
 Enquire
012 00RB183
CLIP - U NUT - M6 		- 12
PE
 Enquire
013 13A5501CP
BODYSIDE PANEL - RADIATOR INTAKE UPPER - CARBON - RH 		$1,523.29 1
TO
013 13AA685CP
BODYSIDE PANEL - RADIATOR INTAKE UPPER - RH
Superseded parts: 13A5469CP; 		$302.10 1
TO
014 13A6055CP
BODYSIDE PANEL - RADIATOR INTAKE - CARBON - LH 		$2,234.17 1
TO
014 13A5386CP
Bodyside Panel - Radiator Intake - LH 		$422.96 1
TO
015 13A6058CP
BODYSIDE PANEL - RADIATOR INTAKE - CARBON - RH 		$1,848.27 1
TO
015 13A5388CP
Bodyside Panel - Radiator Intake - RH 		$422.96 1
TO
016 13A6527CP
Side Intake Duct - Outer - Lower - LH
Superseded parts: 13A6239CP; 		$160.20 1
TO
017 13AA327CP
SIDE INTAKE DUCT - OUTER - UPPER - LH - FOR LOCK SWITCH
Superseded parts: 13AA026CP; 		$110.76 1
TO
017 13A6486CP
Side Intake Duct - Outer - Upper - LH - For Lock Sensor
Superseded parts: 13A6241CP; 		$109.82 1
TO
018 13A6166CP
GRILLE - SIDE INTAKE DUCT - LH 		$261.81 1
TO
019 11AA037CP
FOAM - DUCT - RADIATOR - HVAC PIPE - LH - MY2015
Superseded parts: 11A7582CP; 		$14.21 1
TO
021 00RA353
SCREW - 6X14 - THREADFORMING - TORX - FLANGE 		- 4
PE
 Enquire
022 00RB166
CLIP - PANEL 		- 4
PE
 Enquire
023 00RB194
CLIP - U NUT - M6 		- 18
PE
 Enquire
024 00RC028
WASHER - M6 FORM C 		- 4
PE
 Enquire
025 13A6528CP
Side Intake Duct - Outer - Lower - RH
Superseded parts: 13A6240CP; 		$171.18 1
TO
026 13AA328CP
Side Intake Duct - Outer - Upper - RH - For Lock Switch
Superseded parts: 13AA028CP; 		$110.76 1
TO
026 13A6487CP
Side Intake Duct - Outer - Upper - RH - For Lock Sensor
Superseded parts: 13A6242CP; 		$109.82 1
TO
027 13A6169CP
GRILLE - SIDE INTAKE DUCT - RH 		$261.81 1
TO
028 13A4613CP
SIDE INTAKE DUCT - INNER - LH - CARBON 		$935.35 1
TO
028 13A6586CP
SIDE INTAKE DUCT - INNER - LH
Superseded parts: 13A4610CP; 		$342.38 1
TO
029 13A4622CP
SIDE INTAKE DUCT - INNER - RH - CARBON 		$935.35 1
TO
029 13A6587CP
SIDE INTAKE DUCT - INNER - RH
Superseded parts: 13A4615CP; 		$342.38 1
TO
030 13A6488CP
SEAL - SIDE DUCT - UPPER 		$3.84 2
TO
031 13A4156CP
FOAM - SIDE DUCT UPPER - REAR 		$5.21 2
TO
032 13A4307CP
FOAM - SIDE DUCT OUTER - LOWER 		$17.10 2
TO
033 13A3570CP
FOAM - SEAL - SIDE DUCT 		$17.10 2
TO
034 13A3568CP
RAD DUCT FOAM REAR 		$13.06 2
TO
