McLaren 12C Spider - 22 - H1 - EXHAUST SYSTEM - 22.1 - 01 - EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11H0268CP CLAMP RING - EXHAUST - 121MM - LINK PIPES $86.29 To Order
Photo Part No Description Price (each) Stock
11H0098CP MICA SEALING RING - EXHAUST - TURBOCHARGER $45.68 To Order
Photo Part No Description Price (each) Stock
11H0466CP Link Pipe - inc. Catalyst - Turbocharger to Muffler - RH $3,026.30 To Order
11H0296CP Link Pipe - inc. Catalyst - Turbocharger to Muffler - RH - 12C $2,701.33 To Order
Photo Part No Description Price (each) Stock
11H0099CP SENSOR - LAMBDA - PRE-CATALYST $899.70 To Order
Photo Part No Description Price (each) Stock
11H0100CP SENSOR - LAMBDA - POST-CATALYST $379.86 To Order
Photo Part No Description Price (each) Stock
11H0440CP Hanger Bracket - Link Pipe - Exhaust - RH $75.52 To Order
Photo Part No Description Price (each) Stock
11H0211CP EXHAUST HANGER - LINK PIPE - RUBBER $50.76 To Order
Photo Part No Description Price (each) Stock
11H0173CP CLAMP - SPHERICAL JOINT - EXHAUST MUFFLER $45.68 To Order
Photo Part No Description Price (each) Stock
11H0073CP Mounting Plate - Muffler $35.54 To Order
Photo Part No Description Price (each) Stock
11H0065CP ISOLATOR - MUFFLER MOUNTING $111.69 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
11H0392SP Muffler - Standard - Spider $2,051.37 To Order
11H0393SP Muffler - Sports - Spider $6,747.42 To Order
Photo Part No Description Price (each) Stock
11H0286CP Pressure Sensor - Vacuum $221.54 To Order
Photo Part No Description Price (each) Stock
11H0282CP Bracket - Pressure Sensor - Vacuum $45.68 To Order
Photo Part No Description Price (each) Stock
00RB069 Stepless Ear Clamp - 12.3-14.8 Enquire To Order
Photo Part No Description Price (each) Stock
11H0284CP TANK-TO-CNTRL-VALV24ASSY $142.16 To Order
Photo Part No Description Price (each) Stock
00RB075 Pipe Clip 11-18mm Enquire To Order
Photo Part No Description Price (each) Stock
00RB070 Stepless Ear Clamp - 10.8-13.3 Enquire To Order
Photo Part No Description Price (each) Stock
00RA063 Screw - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11H0287CP Exhaust Control Valve $223.40 To Order
Photo Part No Description Price (each) Stock
00RB073 Swivel Clip - 28-30mm - Male Enquire To Order
Photo Part No Description Price (each) Stock
00RB091 Oetiker Clip - 18.5 Enquire To Order
Photo Part No Description Price (each) Stock
00RA073 SCREW - M6X30 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
11H0281CP Bracket - Pump - Vacuum $101.53 To Order
Photo Part No Description Price (each) Stock
11H0280CP Pump - Vacuum $2,701.33 To Order
Photo Part No Description Price (each) Stock
00RB074 Swivel Clip - 11-13mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
11H0373CP Hose Assy - Vacuum Pump to Tank - MY2015 $192.93 To Order
11H0283CP VAC-PUMP-TO-TANK-A24Y $162.46 To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
11H0464CP Link Pipe - inc. Catalyst - Turbocharger to Muffler - LH $3,026.30 To Order
11H0295CP Link Pipe - inc. Catalyst - Turbocharger to Muffler - LH - 12C $2,701.33 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB078 SWIVEL CLIP - 8-9MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG024 CABLE TIE - 90 DEG - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
00RG025 CABLE TIE - PARALLEL - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
00RG026 CABLE TIE - ROTATABLE - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
11H0301CP Bung - Check Valve $4.85 To Order
Photo Part No Description Price (each) Stock
11H0302CP BRACKETS-INC. FIXI24S-MUFFLER $192.93 To Order
Photo Part No Description Price (each) Stock
11H0427CP Bracket - Hanger - Muffler - MY15 $65.44 To Order
Photo Part No Description Price (each) Stock
00RA056 NUT - M8-8 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA531 Bolt - M8x20 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RC105 Washer - M8x16x1.6 Enquire To Order

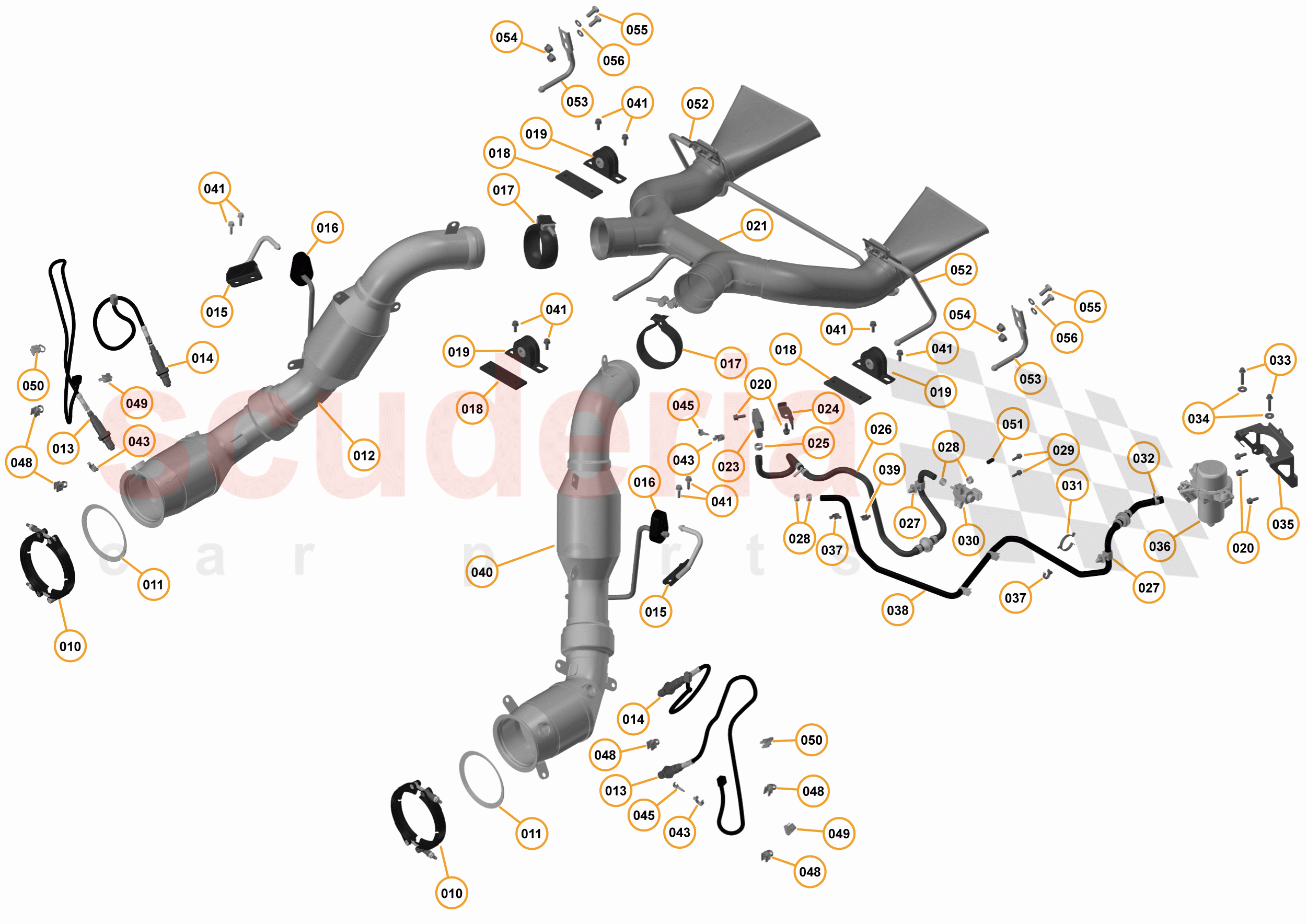

22 - H1 - EXHAUST SYSTEM - 22.1 - 01 - EXHAUST SYSTEM of McLaren McLaren 12C Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11H0268CP
CLAMP RING - EXHAUST - 121MM - LINK PIPES 		$86.29 2
TO
011 11H0098CP
MICA SEALING RING - EXHAUST - TURBOCHARGER 		$45.68 2
TO
012 11H0466CP
Link Pipe - inc. Catalyst - Turbocharger to Muffler - RH 		$3,026.30 1
TO
012 11H0296CP
Link Pipe - inc. Catalyst - Turbocharger to Muffler - RH - 12C 		$2,701.33 1
TO
013 11H0099CP
SENSOR - LAMBDA - PRE-CATALYST 		$899.70 2
TO
014 11H0100CP
SENSOR - LAMBDA - POST-CATALYST 		$379.86 2
TO
015 11H0440CP
Hanger Bracket - Link Pipe - Exhaust - RH 		$75.52 1
TO
016 11H0211CP
EXHAUST HANGER - LINK PIPE - RUBBER 		$50.76 2
TO
017 11H0173CP
CLAMP - SPHERICAL JOINT - EXHAUST MUFFLER 		$45.68 2
TO
018 11H0073CP
Mounting Plate - Muffler 		$35.54 1
TO
019 11H0065CP
ISOLATOR - MUFFLER MOUNTING 		$111.69 3
TO
020 00RA061
Screw - M6x16 - Flange Hex 		- 5
PE
 Enquire
021 11H0392SP
Muffler - Standard - Spider 		$2,051.37 1
TO
021 11H0393SP
Muffler - Sports - Spider 		$6,747.42 1
TO
022 11H0439CP
Hanger Bracket - Link Pipe - Exhaust - LH 		$75.52 1
TO
023 11H0286CP
Pressure Sensor - Vacuum 		$221.54 1
TO
024 11H0282CP
Bracket - Pressure Sensor - Vacuum 		$45.68 1
TO
025 00RB069
Stepless Ear Clamp - 12.3-14.8 		- 3
PE
 Enquire
026 11H0284CP
TANK-TO-CNTRL-VALV24ASSY 		$142.16 1
TO
027 00RB075
Pipe Clip 11-18mm 		- 2
PE
 Enquire
028 00RB070
Stepless Ear Clamp - 10.8-13.3 		- 4
PE
 Enquire
029 00RA063
Screw - M5x16 - Hex 		- 2
PE
 Enquire
030 11H0287CP
Exhaust Control Valve 		$223.40 1
TO
031 00RB073
Swivel Clip - 28-30mm - Male 		- 1
PE
 Enquire
032 00RB091
Oetiker Clip - 18.5 		- 1
PE
 Enquire
033 00RA073
SCREW - M6X30 - HEX 		- 2
PE
 Enquire
034 00RC013
WASHER - M6X18X1.6 		- 4
PE
 Enquire
035 11H0281CP
Bracket - Pump - Vacuum 		$101.53 1
TO
036 11H0280CP
Pump - Vacuum 		$2,701.33 1
TO
037 00RB074
Swivel Clip - 11-13mm - Female 		- 2
PE
 Enquire
038 11H0373CP
Hose Assy - Vacuum Pump to Tank - MY2015 		$192.93 1
TO
038 11H0283CP
VAC-PUMP-TO-TANK-A24Y 		$162.46 1
TO
039 00RB018
CLIP - 11-13MM - MALE 		- 2
PE
 Enquire
040 11H0464CP
Link Pipe - inc. Catalyst - Turbocharger to Muffler - LH 		$3,026.30 1
TO
040 11H0295CP
Link Pipe - inc. Catalyst - Turbocharger to Muffler - LH - 12C 		$2,701.33 1
TO
041 00RA083
SCREW - M6X20 - FLANGE HEX 		- 6
PE
 Enquire
043 00RB032
CLIP - 13-14MM - FEMALE 		- 2
PE
 Enquire
045 00RB078
SWIVEL CLIP - 8-9MM - MALE 		- 2
PE
 Enquire
048 00RG024
CABLE TIE - 90 DEG - EDGE PANEL 		- 6
PE
 Enquire
049 00RG025
CABLE TIE - PARALLEL - EDGE PANEL 		- 2
PE
 Enquire
050 00RG026
CABLE TIE - ROTATABLE - EDGE PANEL 		- 2
PE
 Enquire
051 11H0301CP
Bung - Check Valve 		$4.85 1
TO
052 11H0302CP
BRACKETS-INC. FIXI24S-MUFFLER 		$192.93 1
TO
053 11H0427CP
Bracket - Hanger - Muffler - MY15 		$65.44 2
TO
054 00RA056
NUT - M8-8 - LOCK HEX 		- 4
PE
 Enquire
055 00RA531
Bolt - M8x20 - Hex 		- 4
PE
 Enquire
056 00RC105
Washer - M8x16x1.6 		- 4
PE
 Enquire
