McLaren 12C Spider - 16 - F1 - POWER UNIT - 16.7 - 01 - POWER UNIT - INLET MANIFOLD

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0986CP Brake Hose - Vacuum - Engine $162.46 To Order
Photo Part No Description Price (each) Stock
11F0985CP Spring Clip - Breather to Inlet Manifold - Engine $16.22 To Order
Photo Part No Description Price (each) Stock
11F0408CP Inlet Manifold Assy - Engine $4,818.41 To Order
Photo Part No Description Price (each) Stock
11F0969CP Seal - Throttle Body - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0407CP Throttle Body - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0820CP Bolt Set - M6x45 - Engine - Throttle Body Enquire To Order
Photo Part No Description Price (each) Stock
11F0987CP Sensor - TMAP - Inlet Manifold - Engine $143.23 To Order
Photo Part No Description Price (each) Stock
11F1082CP Vacuum Hose - Vacuum Tank - Engine - RH $243.70 To Order
Photo Part No Description Price (each) Stock
11F1001CP Oetiker Clip - Engine - 13.8 $8.10 To Order
Photo Part No Description Price (each) Stock
11F0998CP Oetiker Clip - Engine - 11.9 $3.63 To Order
Photo Part No Description Price (each) Stock
11F1081CP VAC HOSE-VAC TANK-ENGINE LH $243.70 To Order
Photo Part No Description Price (each) Stock
11F0967CP Seal Set - Inlet Manifold - Engine $192.93 To Order
Photo Part No Description Price (each) Stock
11F0968CP Seal - Intake Sound Generator - Throttle Body - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F2298CP INTAKE SOUND GENERATOR - THROTTLE $1,198.32 To Order
Photo Part No Description Price (each) Stock
11F1061CP Bolt - M6x60 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F1215CP Vacuum Pipe Kit - Check Valve to Vacuum Tank $76.15 To Order
Photo Part No Description Price (each) Stock
11F1216CP Vacuum Pipe Kit - Inlet Manifold - Vacuum Tank $101.53 To Order
Photo Part No Description Price (each) Stock
11F0729CP Harness - Engine Secondary Air $503.52 To Order

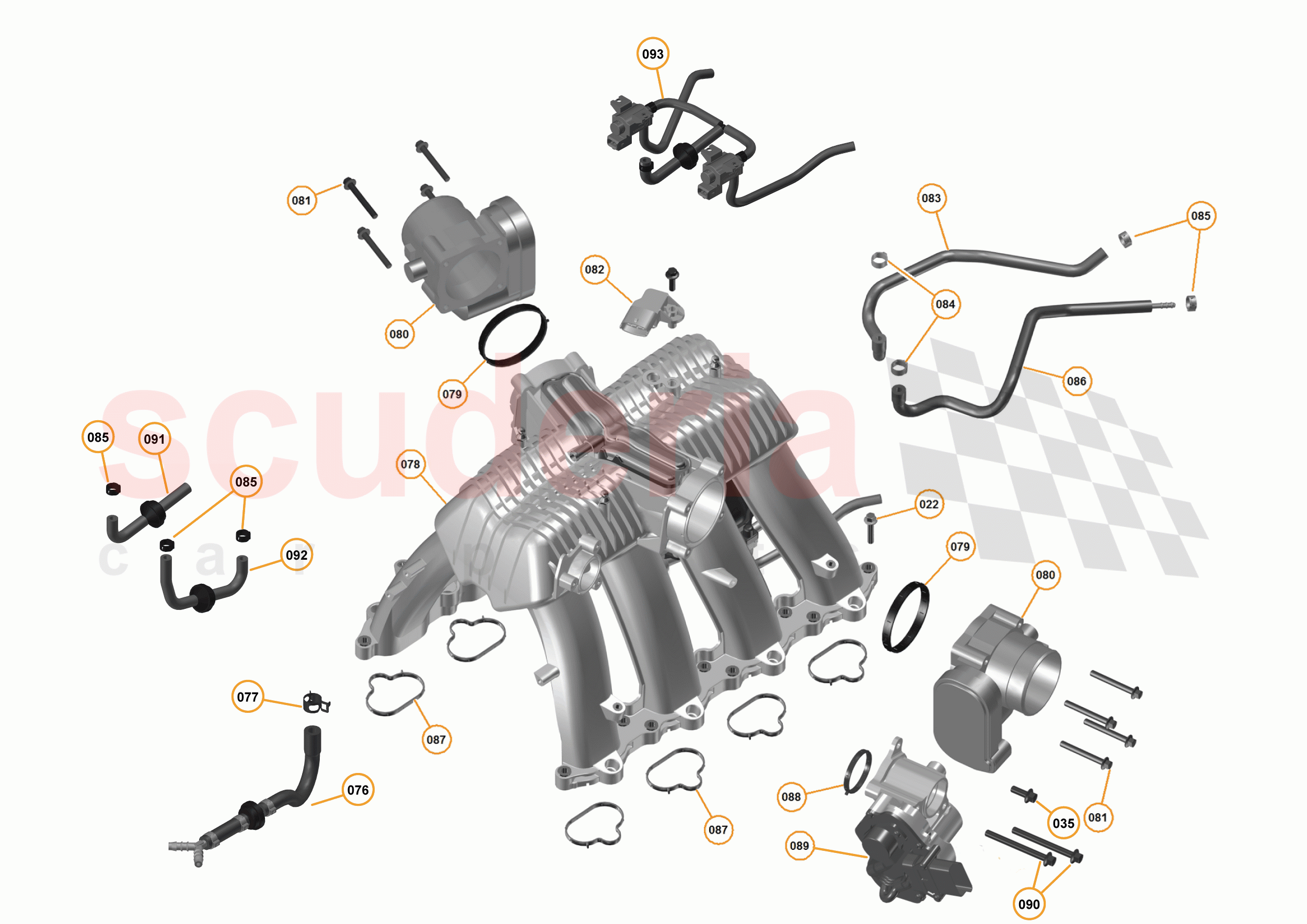

16 - F1 - POWER UNIT - 16.7 - 01 - POWER UNIT - INLET MANIFOLD of McLaren McLaren 12C Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RC056
Washer - M5x12.5x1 Form C 		- 15
PE
 Enquire
022 11F1776CP
BOLT - M6X30 - HEX 		$10.14 1
TO
035 11F0822CP
Bolt - M6x16 - Engine 		- 1
PE
 Enquire
076 11F0986CP
Brake Hose - Vacuum - Engine 		$162.46 1
TO
077 11F0985CP
Spring Clip - Breather to Inlet Manifold - Engine 		$16.22 5
TO
078 11F0408CP
Inlet Manifold Assy - Engine 		$4,818.41 1
TO
079 11F0969CP
Seal - Throttle Body - Engine 		- 2
PE
 Enquire
080 11F0407CP
Throttle Body - Engine 		- 2
PE
 Enquire
081 11F0820CP
Bolt Set - M6x45 - Engine - Throttle Body 		- 1
PE
 Enquire
082 11F0987CP
Sensor - TMAP - Inlet Manifold - Engine 		$143.23 1
TO
083 11F1082CP
Vacuum Hose - Vacuum Tank - Engine - RH 		$243.70 1
TO
084 11F1001CP
Oetiker Clip - Engine - 13.8 		$8.10 1
TO
085 11F0998CP
Oetiker Clip - Engine - 11.9 		$3.63 5
TO
086 11F1081CP
VAC HOSE-VAC TANK-ENGINE LH 		$243.70 1
TO
087 11F0967CP
Seal Set - Inlet Manifold - Engine 		$192.93 1
TO
088 11F0968CP
Seal - Intake Sound Generator - Throttle Body - Engine 		- 2
PE
 Enquire
089 11F2298CP
INTAKE SOUND GENERATOR - THROTTLE 		$1,198.32 1
TO
090 11F1061CP
Bolt - M6x60 - Engine 		- 2
PE
 Enquire
091 11F1215CP
Vacuum Pipe Kit - Check Valve to Vacuum Tank 		$76.15 1
TO
092 11F1216CP
Vacuum Pipe Kit - Inlet Manifold - Vacuum Tank 		$101.53 1
TO
093 11F0729CP
Harness - Engine Secondary Air 		$503.52 1
TO
