McLaren 12C Spider - 16 - F1 - POWER UNIT - 16.6 - 01 - POWER UNIT - OIL FILTER ASSEMBLY + OIL PUMP

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F0690CP Seal - Engine Oil Pump $30.44 To Order
11F2172CP Nut - Oil Pump Sprocket $20.29 To Order
11F2806CP ORING-SEAL-16X2 $7.69 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F2171CP VEE MODULE - BLOCK SEAL KIT $111.69 To Order
11F0725CP ENGINE VEE MODULE ASSY SEALS $446.36 To Order
Photo Part No Description Price (each) Stock
11F0107CP OIL-FILTER $45.67 IN STOCK
Photo Part No Description Price (each) Stock
11F2382CP ENGINE OIL FILTER 24P ASSY $50.76 To Order
Photo Part No Description Price (each) Stock
11F2804CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH $203.09 To Order
Photo Part No Description Price (each) Stock
11F0697CP Hose - Turbocharger Oil Feed - inc. washers/banjo - LH $446.82 To Order
Photo Part No Description Price (each) Stock
11F1016CP SEALS-COOLER-VEE-MOD-ENGINE $111.69 To Order
Photo Part No Description Price (each) Stock
13F0747CP OIL COOLER - ENGINE $771.79 To Order
Photo Part No Description Price (each) Stock
11F1927CP STUD BALL - VEE MODULE - M6X74 $11.14 To Order
Photo Part No Description Price (each) Stock
11F1278CP Switch - Engine Oil Pressure $65.44 To Order
Photo Part No Description Price (each) Stock
11F0974CP Breather Pipe - Vee - Engine $111.69 To Order
Photo Part No Description Price (each) Stock
11F1030CP Seal Kit - Oil Pump to Block - Engine $81.23 To Order
Photo Part No Description Price (each) Stock
11F0690CP Seal - Engine Oil Pump $30.44 To Order
Photo Part No Description Price (each) Stock
11F0823CP Bolt - M6x35 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0698CP Hose - Turbocharger Oil Feed - inc. washers/banjo - RH $443.10 To Order
Photo Part No Description Price (each) Stock
11F2805CP HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH $446.82 To Order
Photo Part No Description Price (each) Stock
11F1265SP Adaptor - Oil Pressure Switch $55.84 To Order
Photo Part No Description Price (each) Stock
11F1467CP Washer - Oil Pressure Sensor - M10x2.5x14.8 $0.19 To Order
11F1292CP Washer - Oil Pressure Sensor - M10x2.0x14.8 $4.85 To Order
11F1277SP Washer - M10 x 1.27 x 14.8 $1.19 To Order
Photo Part No Description Price (each) Stock
13FA191RP Oil pump - engine $2,678.81 To Order

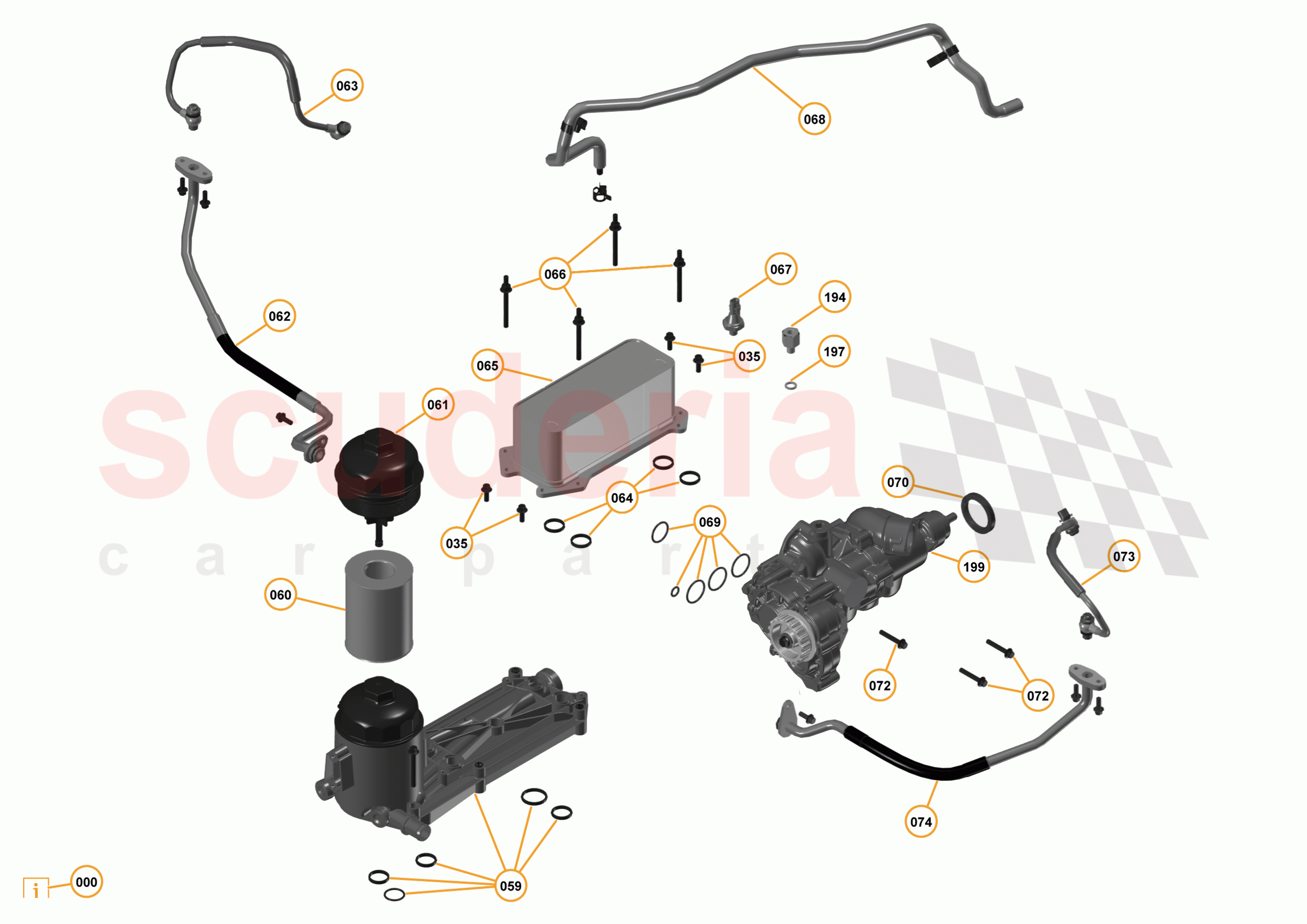

16 - F1 - POWER UNIT - 16.6 - 01 - POWER UNIT - OIL FILTER ASSEMBLY + OIL PUMP of McLaren McLaren 12C Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

11F0690CP

SEAL - ENGINE OIL PUMP

from $30.44

000 11F2172CP
Nut - Oil Pump Sprocket 		$20.29 1
TO
000 11F2806CP
ORING-SEAL-16X2
IN STOCK 		$7.69 2
IN
000 13F0825CP
GASKET - PIPE - TURBO OIL DRAIN 		$7.69 1
TO
035 11F0822CP
Bolt - M6x16 - Engine 		- 1
PE
 Enquire
059 11F2171CP
VEE MODULE - BLOCK SEAL KIT 		$111.69 1
TO
059 11F0725CP
ENGINE VEE MODULE ASSY SEALS 		$446.36 1
TO
060 11F0107CP
OIL-FILTER
IN STOCK 		$45.67 1
IN
061 11F2382CP
ENGINE OIL FILTER 24P ASSY 		$50.76 2
TO
062 11F2804CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH
Superseded parts: 11F0693CP; 		$203.09 1
TO
063 11F0697CP
Hose - Turbocharger Oil Feed - inc. washers/banjo - LH 		$446.82 1
TO
064 11F1016CP
SEALS-COOLER-VEE-MOD-ENGINE 		$111.69 1
TO
065 13F0747CP
OIL COOLER - ENGINE
Superseded parts: 11F0885CP; 		$771.79 1
TO
066 11F1927CP
STUD BALL - VEE MODULE - M6X74
Superseded parts: 11F0973CP; 		$11.14 1
TO
067 11F1278CP
Switch - Engine Oil Pressure 		$65.44 1
TO
068 11F0974CP
Breather Pipe - Vee - Engine 		$111.69 1
TO
069 11F1030CP
Seal Kit - Oil Pump to Block - Engine 		$81.23 1
TO
072 11F0823CP
Bolt - M6x35 - Engine 		- 1
PE
 Enquire
073 11F0698CP
Hose - Turbocharger Oil Feed - inc. washers/banjo - RH 		$443.10 1
TO
074 11F2805CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH
Superseded parts: 11F0694CP; 		$446.82 1
TO
194 11F1265SP
Adaptor - Oil Pressure Switch 		$55.84 1
TO
197 11F1467CP
Washer - Oil Pressure Sensor - M10x2.5x14.8 		$0.19 1
TO
197 11F1292CP
Washer - Oil Pressure Sensor - M10x2.0x14.8 		$4.85 1
TO
197 11F1277SP
Washer - M10 x 1.27 x 14.8 		$1.19 1
TO
199 13FA191RP
Oil pump - engine 		$2,678.81 1
TO
