McLaren 12C Spider - 3 - A3 -CLOSURES - 3.12 - 06 - CONVERTIBLE ROOF - TONNEAU COVER

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4007SP RHT - Hinge -Tonneau Assy - Kit LH & RH $934.29 To Order
Photo Part No Description Price (each) Stock
11A4015SP RHT - Striker - Tonneau Cover - Kit $443.10 To Order
Photo Part No Description Price (each) Stock
11A4049SP RHT - Buffer Latch - Tonneau Cover $60.90 To Order
Photo Part No Description Price (each) Stock
11A6577SP SHIM - KINEMATIC - 0.5MM $8.71 To Order
11A4000SP RHT - Shim Kit - Tonneau Cover $91.37 To Order
Photo Part No Description Price (each) Stock
13AA312SP SHIM - HINGE - 1.0MM $1.12 To Order
11A4610SP RHT - Shim Kit - Hinge - Tonneau Cover $142.16 To Order
Photo Part No Description Price (each) Stock
11A2351SP SHIM PLATE PACK - TONNEAU 2-HOLE - SPIDER $10.48 To Order
Photo Part No Description Price (each) Stock
11A6363SP BOLT - TONNEAU ARM $32.31 To Order
Photo Part No Description Price (each) Stock
11A6364SP SPRING CLIP - TONNEAU ARM $3.03 To Order
Photo Part No Description Price (each) Stock
11A4043SP Striker - RHT - Down Stack Complete $503.52 To Order
Photo Part No Description Price (each) Stock
11Q0530SP RETENTION MOUNT - TONNEAU BAG $35.23 To Order
Photo Part No Description Price (each) Stock
11Q0527SP CLIP - RHT BAG - RETENTION $17.10 To Order
Photo Part No Description Price (each) Stock
00RA188 SHOULDER BOLT - M6X10 Enquire To Order
Photo Part No Description Price (each) Stock
00RB127 P-CLIP - 12/13 - EPDM Enquire To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA429 SCREW - WASHER - M8X24 - BUTTON-HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A4048SP RHT - Down Stack Buffer - Roof - Front $76.15 To Order
Photo Part No Description Price (each) Stock
11A7023SP Shim - Dog Bone $30.20 To Order
Photo Part No Description Price (each) Stock
11A6473SP Tonneau Cover - Spider $4,390.85 To Order
Photo Part No Description Price (each) Stock
11A6570SP LINKAGE - TONNEAU COVER - LH $906.35 To Order
Photo Part No Description Price (each) Stock
11A6571SP LINKAGE - TONNEAU COVER - RH $906.35 To Order

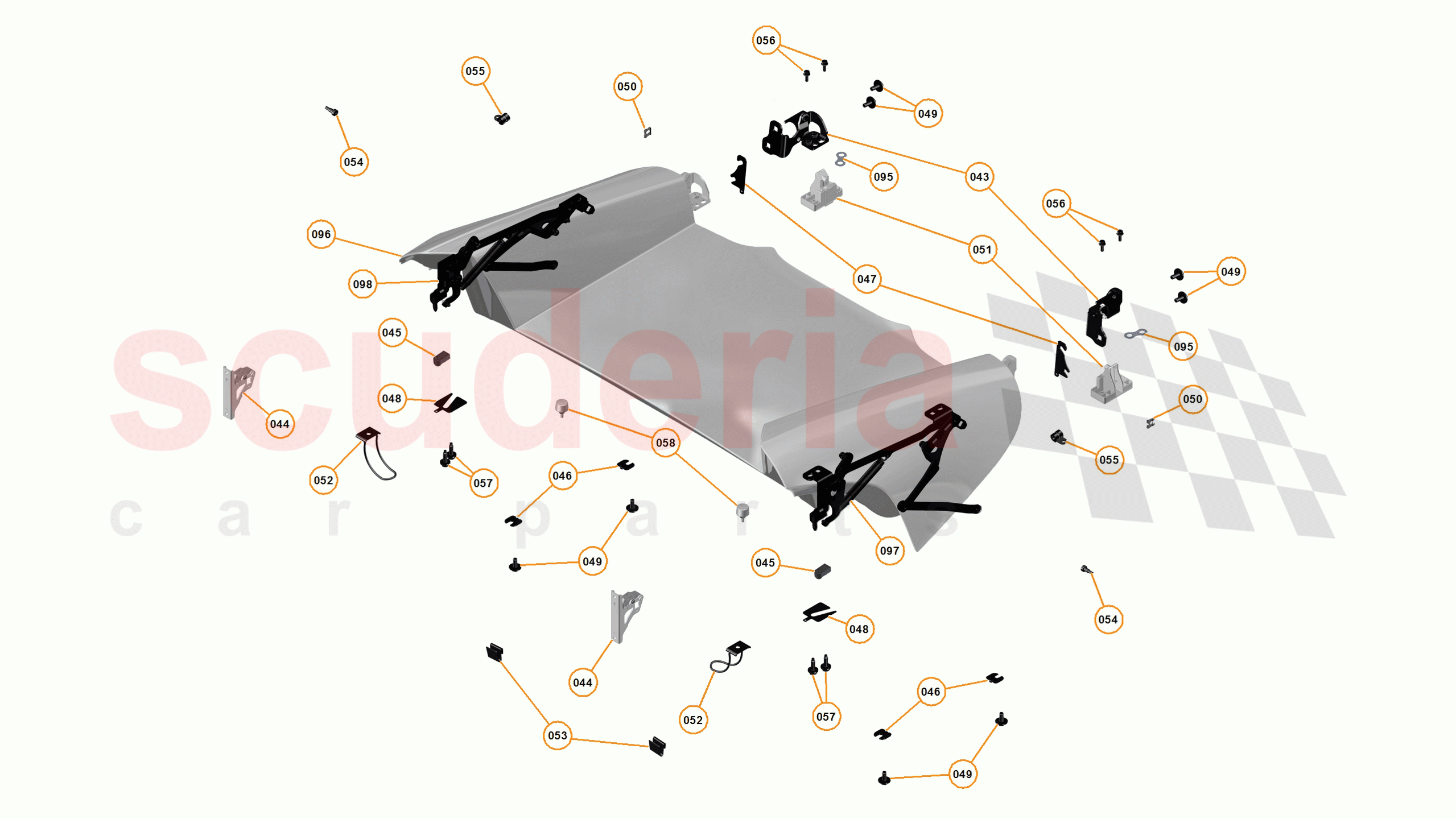

3 - A3 -CLOSURES - 3.12 - 06 - CONVERTIBLE ROOF - TONNEAU COVER of McLaren McLaren 12C Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
043 11A4007SP
RHT - Hinge -Tonneau Assy - Kit LH & RH 		$934.29 1
TO
044 11A4015SP
RHT - Striker - Tonneau Cover - Kit 		$443.10 1
TO
045 11A4049SP
RHT - Buffer Latch - Tonneau Cover 		$60.90 1
TO
046 11A6577SP
SHIM - KINEMATIC - 0.5MM 		$8.71 4
TO
046 11A4000SP
RHT - Shim Kit - Tonneau Cover 		$91.37 1
TO
047 13AA312SP
SHIM - HINGE - 1.0MM 		$1.12 2
TO
047 11A4610SP
RHT - Shim Kit - Hinge - Tonneau Cover 		$142.16 1
TO
048 11A2351SP
SHIM PLATE PACK - TONNEAU 2-HOLE - SPIDER 		$10.48 4
TO
049 11A6363SP
BOLT - TONNEAU ARM 		$32.31 8
TO
050 11A6364SP
SPRING CLIP - TONNEAU ARM 		$3.03 2
TO
051 11A4043SP
Striker - RHT - Down Stack Complete 		$503.52 1
TO
052 11Q0530SP
RETENTION MOUNT - TONNEAU BAG 		$35.23 2
TO
053 11Q0527SP
CLIP - RHT BAG - RETENTION 		$17.10 2
TO
054 00RA188
SHOULDER BOLT - M6X10 		- 2
PE
 Enquire
055 00RB127
P-CLIP - 12/13 - EPDM 		- 2
PE
 Enquire
056 00RA061
Screw - M6x16 - Flange Hex 		- 4
PE
 Enquire
057 00RA429
SCREW - WASHER - M8X24 - BUTTON-HEX 		- 4
PE
 Enquire
058 11A4048SP
RHT - Down Stack Buffer - Roof - Front 		$76.15 1
TO
095 11A7023SP
Shim - Dog Bone 		$30.20 2
TO
096 11A6473SP
Tonneau Cover - Spider 		$4,390.85 1
TO
097 11A6570SP
LINKAGE - TONNEAU COVER - LH 		$906.35 1
TO
098 11A6571SP
LINKAGE - TONNEAU COVER - RH 		$906.35 1
TO
