McLaren 12C Coupe - 13 - K1 - FUEL SYSTEM - 13.4 - 03 - FUEL FILLER NECK

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RB029 P CLIP - DIA 45-M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA063 Screw - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11K0117CP Bracket - Fuel Filler Support $65.98 To Order
Photo Part No Description Price (each) Stock
00RA054 Nut - M5 - Lock Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA154 Screw - M5x20 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11K0192CP ASSY-FUEL FILLER NECK-OPEN VEN $690.54 To Order
Photo Part No Description Price (each) Stock
11K0194CP Seal - Fuel Filler $110.76 To Order
Photo Part No Description Price (each) Stock
00RA310 BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
11A4829CP HT LATCH-FUEL FILLER $35.54 IN STOCK
Photo Part No Description Price (each) Stock
11A4238CP ACTUATOR-FUEL FILLER $655.93 To Order
Photo Part No Description Price (each) Stock
11A4405CP Pin - Actuator - Fuel Filler $55.36 To Order
Photo Part No Description Price (each) Stock
11A6335CP Hose - Drain - Fuel Filler $65.98 To Order
Photo Part No Description Price (each) Stock
11A6040CP COVER-FUEL FILLER $261.81 To Order
Photo Part No Description Price (each) Stock
11A5325CP Brace - Support - Fuel Filler $100.68 To Order
Photo Part No Description Price (each) Stock
11A6332CP Fuel Filler - Mechanism - Assembly $1,027.21 To Order
Photo Part No Description Price (each) Stock
00RA130 SCREW - NR8X13 - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
11K0056CP Hose - Fuel Vent $171.18 To Order
Photo Part No Description Price (each) Stock
11A5921CP Bumpstop - Fuel Filler $6.42 To Order
Photo Part No Description Price (each) Stock
00RB064 Hose Clamp -15.7 - Oetiker Enquire To Order
Photo Part No Description Price (each) Stock
11K0174CP FUNNEL - FUEL FILLER $152.32 To Order
Photo Part No Description Price (each) Stock
00RB038 Clip - 16-25mm Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RC052 WASHER - M6X6.0MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
11A4834CP Screw - Cap Head Socket - M4x40 $10.14 To Order
Photo Part No Description Price (each) Stock
11A6282CP BOWL-FUEL FILLER $140.97 To Order
Photo Part No Description Price (each) Stock
11A6500CP Fuel Filler - Actuator Pin Bush $95.65 To Order
Photo Part No Description Price (each) Stock
11A6285CP FUEL FILLER BOWL-B24NKING PLUG $55.36 To Order
Photo Part No Description Price (each) Stock
11K0270CP LOCKING RING - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
00RB094 OETIKER CLIP - 21.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RB123 Oetiker Clip - 37.6 Enquire To Order

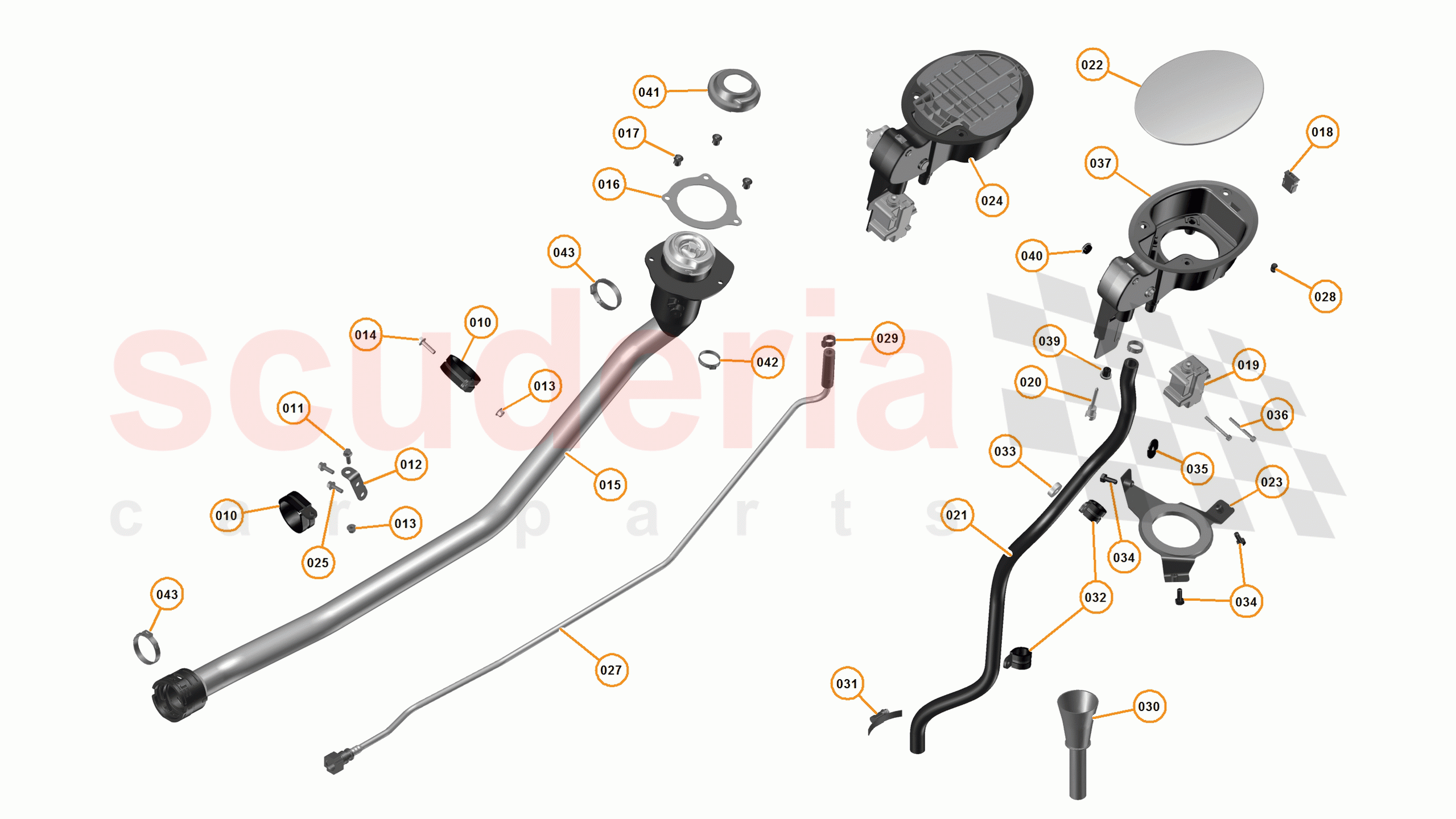

13 - K1 - FUEL SYSTEM - 13.4 - 03 - FUEL FILLER NECK of McLaren McLaren 12C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RB029
P CLIP - DIA 45-M6 		- 2
PE
 Enquire
011 00RA063
Screw - M5x16 - Hex 		- 1
PE
 Enquire
012 11K0117CP
Bracket - Fuel Filler Support 		$65.98 1
TO
013 00RA054
Nut - M5 - Lock Hex 		- 2
PE
 Enquire
014 00RA154
Screw - M5x20 - Hex 		- 1
PE
 Enquire
015 11K0192CP
ASSY-FUEL FILLER NECK-OPEN VEN 		$690.54 1
TO
016 11K0194CP
Seal - Fuel Filler 		$110.76 1
TO
017 00RA310
BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS 		- 3
PE
 Enquire
018 11A4829CP
HT LATCH-FUEL FILLER
IN STOCK 		$35.54 1
IN
019 11A4238CP
ACTUATOR-FUEL FILLER 		$655.93 1
TO
020 11A4405CP
Pin - Actuator - Fuel Filler 		$55.36 1
TO
021 11A6335CP
Hose - Drain - Fuel Filler 		$65.98 1
TO
022 11A6040CP
COVER-FUEL FILLER 		$261.81 1
TO
023 11A5325CP
Brace - Support - Fuel Filler 		$100.68 1
TO
024 11A6332CP
Fuel Filler - Mechanism - Assembly 		$1,027.21 1
TO
025 00RA130
SCREW - NR8X13 - FLANGE 		- 2
PE
 Enquire
027 11K0056CP
Hose - Fuel Vent 		$171.18 1
TO
028 11A5921CP
Bumpstop - Fuel Filler 		$6.42 2
TO
029 00RB064
Hose Clamp -15.7 - Oetiker 		- 1
PE
 Enquire
030 11K0174CP
FUNNEL - FUEL FILLER 		$152.32 1
TO
031 00RB038
Clip - 16-25mm 		- 1
PE
 Enquire
032 00RB060
P CLIP - DIA 20 		- 2
PE
 Enquire
033 00RC052
WASHER - M6X6.0MM 		- 1
PE
 Enquire
034 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3
PE
 Enquire
035 00RC043
WASHER - M6XOD25 		- 3
PE
 Enquire
036 11A4834CP
Screw - Cap Head Socket - M4x40 		$10.14 2
TO
037 11A6282CP
BOWL-FUEL FILLER 		$140.97 1
TO
039 11A6500CP
Fuel Filler - Actuator Pin Bush 		$95.65 1
TO
040 11A6285CP
FUEL FILLER BOWL-B24NKING PLUG 		$55.36 1
TO
041 11K0270CP
LOCKING RING - FUEL FILLER
Superseded parts: 11K0184CP; 		- 1
PE
 Enquire
042 00RB094
OETIKER CLIP - 21.0 		- 1
PE
 Enquire
043 00RB123
Oetiker Clip - 37.6 		- 1
PE
 Enquire
