13 - K1 - Fuel System - 13.2 - 02 - Fuel Delivery - 12C

McLaren 12C Coupe

Find Your Part

McLaren 12C Coupe - 13 - K1 - FUEL SYSTEM - 13.2 - 02 - FUEL DELIVERY - 12C

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11K0145CP PIPE-FUEL FEED-TAN24TO ENG BAY $324.96 To Order
Photo Part No Description Price (each) Stock
11K0148CP Fuel Purge Pipe - Bulkhead to Engine - 12C $111.69 To Order
Photo Part No Description Price (each) Stock
11K0144CP Pipe - Fuel Feed - Bay to Engine $1,198.32 To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order

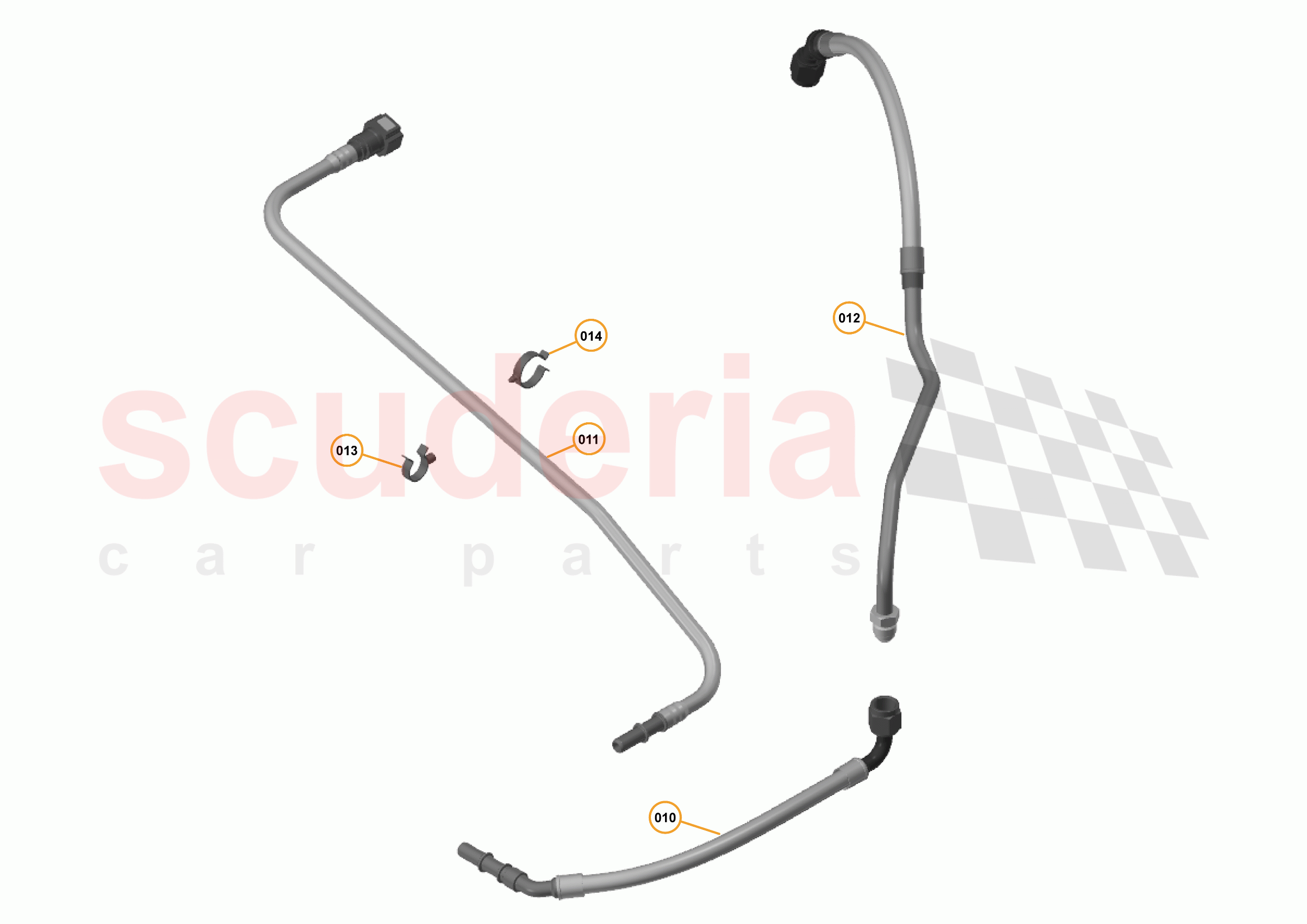

13 - K1 - FUEL SYSTEM - 13.2 - 02 - FUEL DELIVERY - 12C of McLaren McLaren 12C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11K0145CP
PIPE-FUEL FEED-TAN24TO ENG BAY 		$324.96 1
TO
011 11K0148CP
Fuel Purge Pipe - Bulkhead to Engine - 12C 		$111.69 1
TO
012 11K0144CP
Pipe - Fuel Feed - Bay to Engine 		$1,198.32 1
TO
013 00RB032
CLIP - 13-14MM - FEMALE 		- 1
PE
 Enquire
014 00RB008
CLIP - 18-20MM - MALE 		- 1
PE
 Enquire
015 00RA061
Screw - M6x16 - Flange Hex 		- 2
PE
 Enquire
016 00RB098
P-CLIP - DIA 10 - SILICONE 		- 2
PE
 Enquire
