3 - A3 -Closures - 3.6 - 03 - Door Lh - External

McLaren 12C Coupe

Find Your Part

McLaren 12C Coupe - 3 - A3 -CLOSURES - 3.6 - 03 - DOOR LH - EXTERNAL

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A8129CP Stone Protection - Side Skirt - LH - MY2015 $55.84 To Order
11N2415CP SOP-SEALING RING - LOCATOR PIN $55.84 To Order
Photo Part No Description Price (each) Stock
11A9876RP Seal - Wheelhouse Closing - LH $221.54 To Order
Photo Part No Description Price (each) Stock
11A3921CP ASSY-DOOR INNER FI24ER BLOCK L $40.26 To Order
Photo Part No Description Price (each) Stock
11A4503CP BALL STUD - DOOR STRUT $25.37 To Order
Photo Part No Description Price (each) Stock
11A0457CP Gas Strut - Door $322.24 To Order
Photo Part No Description Price (each) Stock
00RA347 Screw - Flatpoint - M8x20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA348 HALF NUT-M8 Enquire To Order
Photo Part No Description Price (each) Stock
11A4293CP Fixing Collar - Hinge - Door $25.37 To Order
Photo Part No Description Price (each) Stock
00RA289 BOLT - BUTTON - FLANGE - M8X35 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
11A5534CP Hinge - Door - LH $1,933.58 To Order
Photo Part No Description Price (each) Stock
00RA346 SCREW-HEX HEAD-M8x24-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA290 Bolt - M8x40 - Button Enquire To Order
Photo Part No Description Price (each) Stock
11A7290CP Glass - Door - Coupe - LH $906.35 To Order
Photo Part No Description Price (each) Stock
11A5480CP Seal - Door Primary - Upper - LH $1,409.89 To Order
Photo Part No Description Price (each) Stock
11A7588CP Seal - Door Glass Channel - LH $584.08 To Order
Photo Part No Description Price (each) Stock
11A6552CP Finisher - Quarter Glass - LH $402.81 To Order
Photo Part No Description Price (each) Stock
11A6700CP Seal - Belt - Inner - LH $523.66 To Order
Photo Part No Description Price (each) Stock
11A0371CP Glass - Door Cheater - LH $825.77 To Order
Photo Part No Description Price (each) Stock
11A5599CP Seal - Belt - Outer - LH $966.78 To Order
Photo Part No Description Price (each) Stock
11A3787CP ASSY-VENT AIR EVAC24LATE-RR-LH $221.54 To Order
Photo Part No Description Price (each) Stock
11A5302CP Seal - B-Pillar Secondary - LH $1,027.21 To Order
Photo Part No Description Price (each) Stock
11A4288CP Striker - Door $70.46 To Order
Photo Part No Description Price (each) Stock
00RA345 Screw - Countersunk - M8x20 Enquire To Order
Photo Part No Description Price (each) Stock
11A9099CP Door Latch Escutcheon $55.36 To Order
Photo Part No Description Price (each) Stock
11A4638CP Emergency Release Lock Barrel - Inc Two Keys in Base $1,299.87 To Order
11A4246CP Emergency Key - Fitted To Key Fob Base - Pre-Cut $1,134.79 To Order
Photo Part No Description Price (each) Stock
11A8744CP Door Latch - LH $1,079.63 To Order
Photo Part No Description Price (each) Stock
11A4271CP Stone Protection - Door - LH $96.45 To Order
Photo Part No Description Price (each) Stock
11A1721CP Seal - Door Primary - Lower - LH $243.70 To Order
Photo Part No Description Price (each) Stock
11A0241CP SECONDARY SEAL DOO24LWR-LH $223.40 To Order
Photo Part No Description Price (each) Stock
11A7032CP Shim - Door Hinge - Upper - 0.6mm $17.25 To Order
11A7031CP Shim - Door Hinge - Upper - 1.0mm $19.27 To Order
11A7030CP Shim - Door Hinge - Upper - 2.0mm $6.87 To Order
Photo Part No Description Price (each) Stock
11A7027CP Shim - Door Hinge - Lower - 0.6mm $19.27 To Order
11A7028CP Shim - Door Hinge - Lower - 1.0mm $20.29 To Order
11A7029CP Shim - Door Hinge - Lower - 2.0mm $25.37 To Order
Photo Part No Description Price (each) Stock
11A4435CP DOOR DATUM TO A-PO24 $45.68 To Order
Photo Part No Description Price (each) Stock
00RC028 WASHER - M6 FORM C Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RC070 Washer - Form A - M8 Enquire To Order
Photo Part No Description Price (each) Stock
11A4372CP Adjuster Bolt - Door $65.98 To Order
Photo Part No Description Price (each) Stock
11A6706CP Stone Protection - Door - Upper - LH $121.84 To Order
Photo Part No Description Price (each) Stock
11A4897CP DOOR HINGE BRACKET24H $111.69 To Order
Photo Part No Description Price (each) Stock
11A4758CP BLACK DECAL BODYSIDE REAR LOWE $16.09 To Order
Photo Part No Description Price (each) Stock
11A4942CP Overmould - Striker - Door $55.36 To Order
Photo Part No Description Price (each) Stock
00RB133 Clip - Primary Seal Enquire To Order
Photo Part No Description Price (each) Stock
11A4880CP External Key Barrel - Assembly - 12C $422.96 To Order
Photo Part No Description Price (each) Stock
00RA329 CLIP - M6 Enquire To Order
Photo Part No Description Price (each) Stock
11A8742CP DOOR LATCH SOFT CLOSE LH $1,232.18 To Order
Photo Part No Description Price (each) Stock
11A7287CP Deflector - Stone Chip - Door - LH - 650S $101.53 To Order
Photo Part No Description Price (each) Stock
11A9893CP External Key Barrel - Assembly - MY2015 $302.10 To Order
Photo Part No Description Price (each) Stock
00RA310 BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
11A7700CP Foam Pad - Key Barrel - MY2015 $18.11 To Order
Photo Part No Description Price (each) Stock
11A7254CP Door Skirt - Carbon - LH - MY2015 - 650S $3,222.64 To Order
11A9451CP Door Skirt - LH - 650S $1,752.31 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order

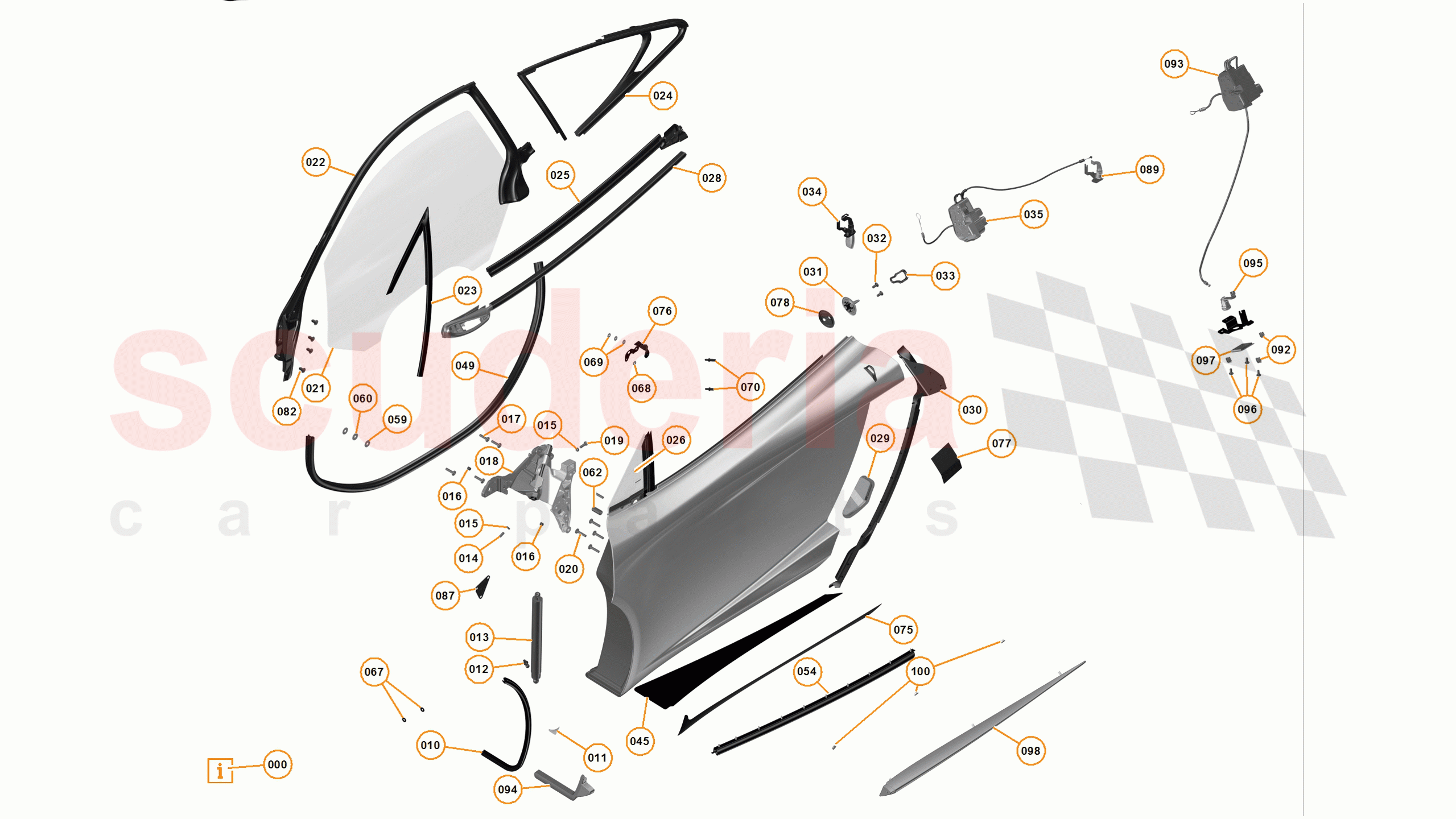

3 - A3 -CLOSURES - 3.6 - 03 - DOOR LH - EXTERNAL of McLaren McLaren 12C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A8129CP
Stone Protection - Side Skirt - LH - MY2015 		$55.84 1
TO
000 11N2415CP
SOP-SEALING RING - LOCATOR PIN 		$55.84 1
TO
010 11A9876RP
Seal - Wheelhouse Closing - LH 		$221.54 1
TO
011 11A3921CP
ASSY-DOOR INNER FI24ER BLOCK L 		$40.26 1
TO
012 11A4503CP
BALL STUD - DOOR STRUT 		$25.37 2
TO
013 11A0457CP
Gas Strut - Door 		$322.24 1
TO
014 00RA347
Screw - Flatpoint - M8x20 		- 1
PE
 Enquire
015 00RA348
HALF NUT-M8 		- 2
PE
 Enquire
016 11A4293CP
Fixing Collar - Hinge - Door 		$25.37 2
TO
017 00RA289
BOLT - BUTTON - FLANGE - M8X35 - 10.9 		- 4
PE
 Enquire
018 11A5534CP
Hinge - Door - LH 		$1,933.58 1
TO
019 00RA346
SCREW-HEX HEAD-M8x24-8.8 		- 1
PE
 Enquire
020 00RA290
Bolt - M8x40 - Button 		- 4
PE
 Enquire
021 11A7290CP
Glass - Door - Coupe - LH 		$906.35 1
TO
022 11A5480CP
Seal - Door Primary - Upper - LH 		$1,409.89 1
TO
023 11A7588CP
Seal - Door Glass Channel - LH 		$584.08 1
TO
024 11A6552CP
Finisher - Quarter Glass - LH 		$402.81 1
TO
025 11A6700CP
Seal - Belt - Inner - LH
Superseded parts: 11A5298CP; 		$523.66 1
TO
026 11A0371CP
Glass - Door Cheater - LH 		$825.77 1
TO
028 11A5599CP
Seal - Belt - Outer - LH 		$966.78 1
TO
029 11A3787CP
ASSY-VENT AIR EVAC24LATE-RR-LH 		$221.54 1
TO
030 11A5302CP
Seal - B-Pillar Secondary - LH 		$1,027.21 1
TO
031 11A4288CP
Striker - Door 		$70.46 1
TO
032 00RA345
Screw - Countersunk - M8x20 		- 2
PE
 Enquire
033 11A9099CP
Door Latch Escutcheon
Superseded parts: 11A4287CP; 		$55.36 1
TO
034 11A4638CP
Emergency Release Lock Barrel - Inc Two Keys in Base 		$1,299.87 1
TO
034 11A4246CP
Emergency Key - Fitted To Key Fob Base - Pre-Cut 		$1,134.79 1
TO
035 11A8744CP
Door Latch - LH
Superseded parts: 11A6437CP; 		$1,079.63 1
TO
045 11A4271CP
Stone Protection - Door - LH 		$96.45 1
TO
049 11A1721CP
Seal - Door Primary - Lower - LH 		$243.70 1
TO
054 11A0241CP
SECONDARY SEAL DOO24LWR-LH 		$223.40 1
TO
059 11A7032CP
Shim - Door Hinge - Upper - 0.6mm
Superseded parts: 11A4440CP; 		$17.25 1
TO
059 11A7031CP
Shim - Door Hinge - Upper - 1.0mm
Superseded parts: 11A4438CP; 		$19.27 1
TO
059 11A7030CP
Shim - Door Hinge - Upper - 2.0mm
Superseded parts: 11A4436CP; 		$6.87 1
TO
060 11A7027CP
Shim - Door Hinge - Lower - 0.6mm
Superseded parts: 11A4441CP; 		$19.27 1
TO
060 11A7028CP
Shim - Door Hinge - Lower - 1.0mm
Superseded parts: 11A4439CP; 		$20.29 1
TO
060 11A7029CP
Shim - Door Hinge - Lower - 2.0mm
Superseded parts: 11A4437CP; 		$25.37 1
TO
062 11A4435CP
DOOR DATUM TO A-PO24 		$45.68 1
TO
067 00RC028
WASHER - M6 FORM C 		- 2
PE
 Enquire
068 00RC064
WASHER - M6X18X1.6 - BLACK 		- 1
PE
 Enquire
069 00RC070
Washer - Form A - M8 		- 3
PE
 Enquire
070 11A4372CP
Adjuster Bolt - Door 		$65.98 2
TO
075 11A6706CP
Stone Protection - Door - Upper - LH 		$121.84 1
TO
076 11A4897CP
DOOR HINGE BRACKET24H 		$111.69 1
TO
077 11A4758CP
BLACK DECAL BODYSIDE REAR LOWE 		$16.09 1
TO
078 11A4942CP
Overmould - Striker - Door 		$55.36 1
TO
082 00RB133
Clip - Primary Seal 		- 4
PE
 Enquire
086 11A6708CP
Deflector - Stone Chip - Door - LH 		$60.42 1
TO
089 11A4880CP
External Key Barrel - Assembly - 12C
Superseded parts: 11A2814CP; 		$422.96 1
TO
092 00RA329
CLIP - M6
Clip - M6; 		- 3
PE
 Enquire
093 11A8742CP
DOOR LATCH SOFT CLOSE LH 		$1,232.18 1
TO
094 11A7287CP
Deflector - Stone Chip - Door - LH - 650S 		$101.53 1
TO
095 11A9893CP
External Key Barrel - Assembly - MY2015
Superseded parts: 11A7684CP; 		$302.10 1
TO
096 00RA310
BOLT - M6X16 - BUTTON - BTN HD FL M6X16-SS 		- 3
PE
 Enquire
097 11A7700CP
Foam Pad - Key Barrel - MY2015 		$18.11 1
TO
098 11A7254CP
Door Skirt - Carbon - LH - MY2015 - 650S 		$3,222.64 1
TO
098 11A9451CP
Door Skirt - LH - 650S
Superseded parts: 11A8989CP; 		$1,752.31 1
TO
100 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 3
PE
 Enquire
