3 - A3 -Closures - 3.5 - 03 - Door Lh - Internal

McLaren 12C Coupe

Find Your Part

McLaren 12C Coupe - 3 - A3 -CLOSURES - 3.5 - 03 - DOOR LH - INTERNAL

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A7397CP Door Assy - LH - Push Button Entry $15,612.16 To Order
11A5668CP Door Assy - LH - Touch Pad Entry $15,453.25 To Order
Photo Part No Description Price (each) Stock
00RC062 WASHER - M6 - SERRATED Enquire To Order
Photo Part No Description Price (each) Stock
00RA179 SCREW - M6X10-10.9 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
11A1565CP Regulator & Motor Assy - Door Glass - LH $1,198.32 To Order
Photo Part No Description Price (each) Stock
00RA342 TORX SCREW - PT5X20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA328 Half Nut - M6 Enquire To Order
Photo Part No Description Price (each) Stock
11A4919CP Sensor - Door Release - Touch Sensitive $734.90 To Order
Photo Part No Description Price (each) Stock
11A1947CP ASSY-VENT AIR EVAC24LATE $151.05 To Order
Photo Part No Description Price (each) Stock
00RA329 CLIP - M6 Enquire To Order
Photo Part No Description Price (each) Stock
11A3461CP Door Access Panel - Inner - LH $281.95 To Order
Photo Part No Description Price (each) Stock
11A4849CP Adhesive Tape - Door Access Panel $80.54 To Order
Photo Part No Description Price (each) Stock
00RE002 Dome Plug - Heyco - 430 2784 Enquire To Order
Photo Part No Description Price (each) Stock
00RE005 Dome Plug - Heyco - 430 2704 Enquire To Order
Photo Part No Description Price (each) Stock
00RA262 HALF NUT - M8 - DIN 439 Enquire To Order
Photo Part No Description Price (each) Stock
00RA321 Screw - M5x16 - Lock Cap - Silver Enquire To Order
Photo Part No Description Price (each) Stock
00RA364 Screw - Button Head - Flange - M8x50 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
11A4506CP NVH Pad - Door - Outer $151.05 To Order
Photo Part No Description Price (each) Stock
11A4509CP NVH PAD-DOOR FRONT24H $65.44 To Order
Photo Part No Description Price (each) Stock
11A4650CP Foam Pad - Key Barrel $30.20 To Order
Photo Part No Description Price (each) Stock
11A4757CP Bond Spacer - Cheater Glass $25.15 To Order
Photo Part No Description Price (each) Stock
11A5709CP Regulator - Side Repeater - Mirror Mounted - LH $584.08 To Order
Photo Part No Description Price (each) Stock
00RA226 SCREW - M3X8 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
11A5337CP Bracket - Reinforcement Waist Belt - Upper - Front - LH $161.11 To Order
Photo Part No Description Price (each) Stock
11M2414CP Switch - Door Release - Push Button $483.38 To Order

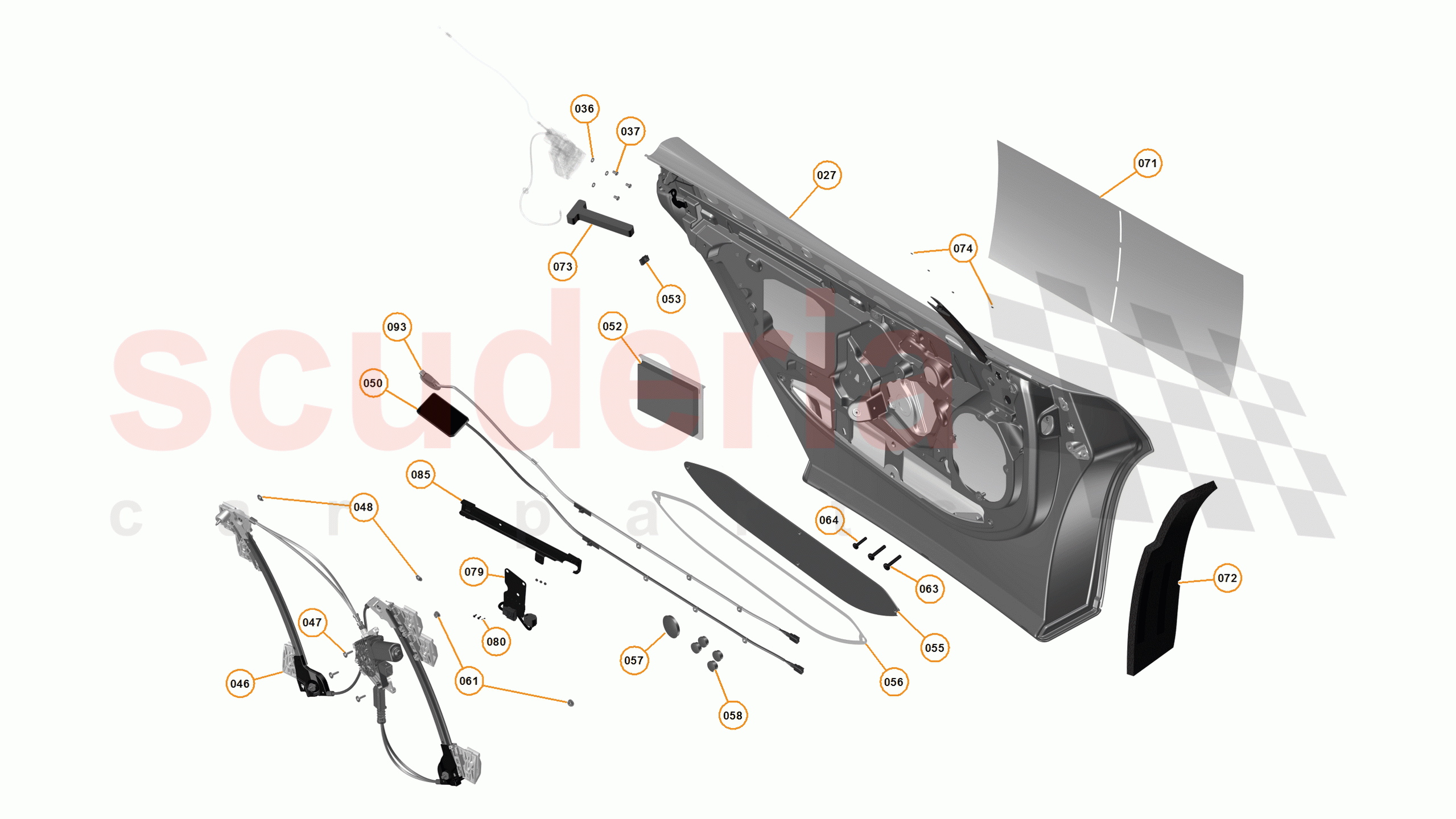

3 - A3 -CLOSURES - 3.5 - 03 - DOOR LH - INTERNAL of McLaren McLaren 12C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
027 11A7397CP
Door Assy - LH - Push Button Entry 		$15,612.16 1
TO
027 11A5668CP
Door Assy - LH - Touch Pad Entry 		$15,453.25 1
TO
036 00RC062
WASHER - M6 - SERRATED 		- 3
PE
 Enquire
037 00RA179
SCREW - M6X10-10.9 - BUTTON 		- 1
PE
 Enquire
046 11A1565CP
Regulator & Motor Assy - Door Glass - LH 		$1,198.32 1
TO
047 00RA342
TORX SCREW - PT5X20 		- 3
PE
 Enquire
048 00RA328
Half Nut - M6 		- 2
PE
 Enquire
050 11A4919CP
Sensor - Door Release - Touch Sensitive 		$734.90 1
TO
052 11A1947CP
ASSY-VENT AIR EVAC24LATE 		$151.05 1
TO
053 00RA329
CLIP - M6
Clip - M6; 		- 1
PE
 Enquire
055 11A3461CP
Door Access Panel - Inner - LH 		$281.95 1
TO
056 11A4849CP
Adhesive Tape - Door Access Panel 		$80.54 1
TO
057 00RE002
Dome Plug - Heyco - 430 2784 		- 1
PE
 Enquire
058 00RE005
Dome Plug - Heyco - 430 2704 		- 4
PE
 Enquire
061 00RA262
HALF NUT - M8 - DIN 439 		- 2
PE
 Enquire
063 00RA321
Screw - M5x16 - Lock Cap - Silver 		- 2
PE
 Enquire
064 00RA364
Screw - Button Head - Flange - M8x50 10.9 		- 1
PE
 Enquire
071 11A4506CP
NVH Pad - Door - Outer 		$151.05 1
TO
072 11A4509CP
NVH PAD-DOOR FRONT24H 		$65.44 1
TO
073 11A4650CP
Foam Pad - Key Barrel 		$30.20 1
TO
074 11A4757CP
Bond Spacer - Cheater Glass 		$25.15 4
TO
079 11A5709CP
Regulator - Side Repeater - Mirror Mounted - LH 		$584.08 1
TO
080 00RA226
SCREW - M3X8 - BUTTON 		- 3
PE
 Enquire
085 11A5337CP
Bracket - Reinforcement Waist Belt - Upper - Front - LH 		$161.11 1
TO
093 11M2414CP
Switch - Door Release - Push Button 		$483.38 1
TO
