3 - A3 -Closures - 3.10 - 05 - Airbrake

McLaren 12C Coupe

Find Your Part

McLaren 12C Coupe - 3 - A3 -CLOSURES - 3.10 - 05 - AIRBRAKE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4682CP HYDRAULIC HOSE-D-R24ACTUATE $568.69 To Order
Photo Part No Description Price (each) Stock
11A4681CP HYDRAULIC HOSE-F-T24NS ACTUATE $568.69 To Order
Photo Part No Description Price (each) Stock
11A4676CP Hose - Airbrake - Union Manifold $192.93 To Order
Photo Part No Description Price (each) Stock
00RB040 PIPE CLIP-SINGLE D24 10 Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A4680CP HYDRAULIC HOSE-E-T24NS RETRACT $588.99 To Order
Photo Part No Description Price (each) Stock
11A4678CP HYDRAULIC HOSE-B-R24RETRACT $446.82 To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB074 Swivel Clip - 11-13mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RA121 Bolt - M6x50 -Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RC048 WASHER - FORM C - 21X1.6 - M8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA321 Screw - M5x16 - Lock Cap - Silver Enquire To Order
Photo Part No Description Price (each) Stock
00RA322 Screw - M5x16 - Lock Cap - Black Enquire To Order
Photo Part No Description Price (each) Stock
11A6891CP AIRBRAKE PANEL ASSY CARBON FIBRE $2,575.16 To Order
11A5335CP Airbrake Panel Assy $2,255.84 To Order
Photo Part No Description Price (each) Stock
00RA028 BOLT - M8X25 - 10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A8511CP Airbrake - Mechanism - RH Enquire To Order
Photo Part No Description Price (each) Stock
11A4054CP Sensor - Airbrake Position - inc. Connector $814.36 To Order
Photo Part No Description Price (each) Stock
11A8510CP Airbrake - Mechanism - LH Enquire To Order
Photo Part No Description Price (each) Stock
11A4725CP AIRBRAKE SHIM 3MM $30.44 To Order
11A4723CP AIRBRAKE SHIM 2MM $30.44 To Order
11A4721CP AIRBRAKE SHIM 1MM $30.44 To Order
Photo Part No Description Price (each) Stock
11A4677CP HYDRAULIC HOSE-A-L24RETRACT $446.82 To Order
Photo Part No Description Price (each) Stock
11A4679CP HYDRAULIC HOSE-C-L24ACTUATE $467.13 To Order
Photo Part No Description Price (each) Stock
11A4537CP Airbrake - Electrical Connector Kit $95.65 To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB047 Swivel Clip - 9-9.5 - Male-Female Enquire To Order
Photo Part No Description Price (each) Stock
11A2285CP DRIVE CONNECTOR-SENSOR $16.22 To Order
Photo Part No Description Price (each) Stock
11A5698CP Cap - Airbrake Sensor $30.44 To Order

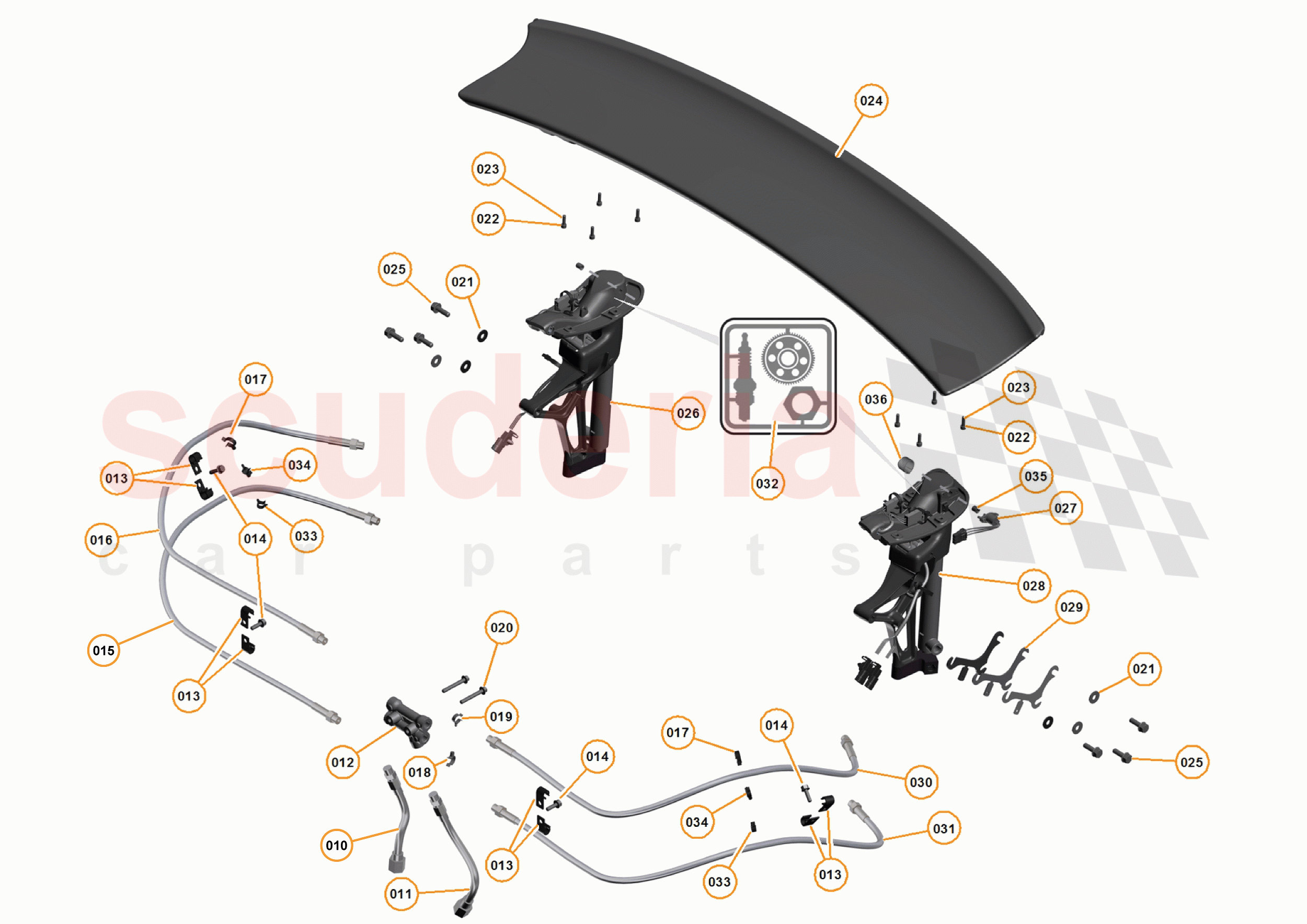

3 - A3 -CLOSURES - 3.10 - 05 - AIRBRAKE of McLaren McLaren 12C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A4682CP
HYDRAULIC HOSE-D-R24ACTUATE 		$568.69 1
TO
011 11A4681CP
HYDRAULIC HOSE-F-T24NS ACTUATE 		$568.69 1
TO
012 11A4676CP
Hose - Airbrake - Union Manifold 		$192.93 1
TO
013 00RB040
PIPE CLIP-SINGLE D24 10 		- 8
PE
 Enquire
014 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4
PE
 Enquire
015 11A4680CP
HYDRAULIC HOSE-E-T24NS RETRACT 		$588.99 1
TO
016 11A4678CP
HYDRAULIC HOSE-B-R24RETRACT 		$446.82 1
TO
017 00RB032
CLIP - 13-14MM - FEMALE 		- 2
PE
 Enquire
018 00RB074
Swivel Clip - 11-13mm - Female 		- 1
PE
 Enquire
019 00RB018
CLIP - 11-13MM - MALE 		- 1
PE
 Enquire
020 00RA121
Bolt - M6x50 -Hex 		- 2
PE
 Enquire
021 00RC048
WASHER - FORM C - 21X1.6 - M8 		- 6
PE
 Enquire
022 00RA321
Screw - M5x16 - Lock Cap - Silver 		- 8
PE
 Enquire
023 00RA322
Screw - M5x16 - Lock Cap - Black 		- 8
PE
 Enquire
024 11A6891CP
AIRBRAKE PANEL ASSY CARBON FIBRE 		$2,575.16 1
TO
024 11A5335CP
Airbrake Panel Assy
Superseded parts: 11A4446CP; 		$2,255.84 1
TO
025 00RA028
BOLT - M8X25 - 10.9 - HEX 		- 6
PE
 Enquire
026 11A8511CP
Airbrake - Mechanism - RH 		- 1
PE
 Enquire
027 11A4054CP
Sensor - Airbrake Position - inc. Connector 		$814.36 2
TO
028 11A8510CP
Airbrake - Mechanism - LH 		- 1
PE
 Enquire
029 11A4725CP
AIRBRAKE SHIM 3MM 		$30.44 2
TO
029 11A4723CP
AIRBRAKE SHIM 2MM 		$30.44 2
TO
029 11A4721CP
AIRBRAKE SHIM 1MM 		$30.44 2
TO
030 11A4677CP
HYDRAULIC HOSE-A-L24RETRACT 		$446.82 1
TO
031 11A4679CP
HYDRAULIC HOSE-C-L24ACTUATE 		$467.13 1
TO
032 11A4537CP
Airbrake - Electrical Connector Kit 		$95.65 1
TO
033 00RB045
CLIP - 9.5-10MM - MALE 		- 2
PE
 Enquire
034 00RB047
Swivel Clip - 9-9.5 - Male-Female 		- 2
PE
 Enquire
035 11A2285CP
DRIVE CONNECTOR-SENSOR 		$16.22 1
TO
036 11A5698CP
Cap - Airbrake Sensor 		$30.44 1
TO
