Rear Suspension

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

Find Your Part

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - REAR SUSPENSION

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670156071 COMPLETE L.H. REAR UPPER LEVER $470.86 To Order
670161646 COMPLETE R.H. REAR UPPER LEVER $642.80 To Order
Photo Part No Description Price (each) Stock
670160347 BUSHING $86.00 To Order
Photo Part No Description Price (each) Stock
670007895 SCREW M12 $8.80 To Order
Photo Part No Description Price (each) Stock
675001345 SCREW $2.45 To Order
Photo Part No Description Price (each) Stock
670160337 BUSHING $197.81 To Order
Photo Part No Description Price (each) Stock
675001196 SCREW $10.85 To Order
Photo Part No Description Price (each) Stock
670175415 LH REAR HUB HOLDER ASSEMBLY $706.32 To Order
670181987 LH REAR HUB HOLDER ASSEMBLY $728.21 To Order
670175416 RH REAR HUB HOLDER ASSEMBLY $706.32 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
675002403 NUT $1.48 To Order
Photo Part No Description Price (each) Stock
670161672 LH BALL TIE ROD $79.25 To Order
670161850 RH BALL TIE ROD $79.25 To Order
Photo Part No Description Price (each) Stock
670160647 SCREW $5.57 To Order
Photo Part No Description Price (each) Stock
670156481 REAR STABILIZER BAR $669.08 To Order
Photo Part No Description Price (each) Stock
675000184 NUT $1.98 To Order
Photo Part No Description Price (each) Stock
675001071 U-BOLT $15.32 To Order
Photo Part No Description Price (each) Stock
675001015 SCREW $1.95 To Order
Photo Part No Description Price (each) Stock
670216677 REAR TOE-IN ADJUSTMENT ROD $360.28 To Order
Photo Part No Description Price (each) Stock
675001020 SCREW $5.31 To Order
Photo Part No Description Price (each) Stock
675001193 NUT $6.26 To Order
Photo Part No Description Price (each) Stock
675001188 NUT $6.50 To Order
Photo Part No Description Price (each) Stock
670161839 LH REAR SWINGING ARM $439.11 To Order
670161836 RH REAR SWINGING ARM $439.11 To Order
Photo Part No Description Price (each) Stock
670213189 WASHER $1.36 To Order
Photo Part No Description Price (each) Stock
670160632 SPACER $19.77 To Order
Photo Part No Description Price (each) Stock
670160354 AXLE ROD $279.22 To Order
670160333 AXLE ROD $279.22 To Order
Photo Part No Description Price (each) Stock
670175780 CAMBER ADJUSTMENT PLATE $11.45 To Order
670175781 CAMBER ADJUSTMENT PLATE $11.45 To Order
670175782 CAMBER ADJUSTMENT PLATE $11.45 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
675000127 NUT M12 $2.51 To Order
Photo Part No Description Price (each) Stock
670007895 SCREW M12 $8.80 To Order
Photo Part No Description Price (each) Stock
675000023 NUT M12 $1.57 IN STOCK
Photo Part No Description Price (each) Stock
670174098 WASHER $20.38 To Order
Photo Part No Description Price (each) Stock
673013880 KIT CAMBER ADJUSTMENT PLATE $1,539.63 To Order

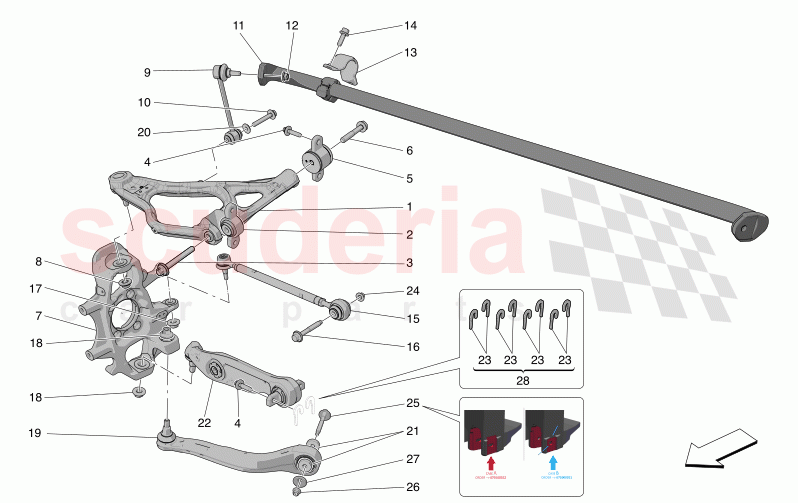

REAR SUSPENSION of Maserati Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670156071
COMPLETE L.H. REAR UPPER LEVER 		$470.86 1
TO
1 670161646
COMPLETE R.H. REAR UPPER LEVER 		$642.80 1
TO
2 670160347
BUSHING 		$86.00 2
TO

670007895

SCREW M12

from $8.80

4 675001345
SCREW 		$2.45 12
TO
5 670160337
BUSHING 		$197.81 2
TO
6 675001196
SCREW 		$10.85 2
TO
7 670175415
LH REAR HUB HOLDER ASSEMBLY
Available with: DUAL-CAST STEEL BRAKES ; 		$706.32 1
TO
7 670181987
LH REAR HUB HOLDER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7000931 - 99999999; Available with: CARBON CERAMIC BRAKES ; 		$728.21 1
TO
7 670175416
RH REAR HUB HOLDER ASSEMBLY
Available with: DUAL-CAST STEEL BRAKES ; 		$706.32 1
TO
7 670181989
RH REAR HUB HOLDER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7000931 - 99999999; Available with: CARBON CERAMIC BRAKES ; 		$728.21 1
TO
8 675002403
NUT
Bespoke Assembly Number 7003417 - 99999999; 		$1.48 2
TO
9 670161672
LH BALL TIE ROD 		$79.25 1
TO
9 670161850
RH BALL TIE ROD 		$79.25 1
TO
10 670160647
SCREW 		$5.57 2
TO
11 670156481
REAR STABILIZER BAR 		$669.08 1
TO
12 675000184
NUT 		$1.98 2
TO
13 675001071
U-BOLT 		$15.32 2
TO
14 675001015
SCREW 		$1.95 4
TO
15 670216677
REAR TOE-IN ADJUSTMENT ROD 		$360.28 2
TO
16 675001020
SCREW 		$5.31 2
TO
17 675001193
NUT 		$6.26 2
TO
18 675001188
NUT 		$6.50 4
TO
19 670161839
LH REAR SWINGING ARM 		$439.11 1
TO
19 670161836
RH REAR SWINGING ARM 		$439.11 1
TO
20 670213189
WASHER 		$1.36 2
TO
21 670160632
SPACER 		$19.77 4
TO
22 670160354
AXLE ROD
LH side; 		$279.22 1
TO
22 670160333
AXLE ROD
RH side; 		$279.22 1
TO
23 670175780
CAMBER ADJUSTMENT PLATE
THICKNESS 0.5 mm; 		$11.45 4
TO
23 670175781
CAMBER ADJUSTMENT PLATE
THICKNESS 1 mm; 		$11.45 4
TO
23 670175782
CAMBER ADJUSTMENT PLATE
THICKNESS 2 mm; 		$11.45 4
TO
23 670175783
CAMBER ADJUSTMENT PLATE
THICKNESS 3 mm; 		$11.45 4
TO
23 670160335
CAMBER ADJUSTMENT PLATE
THICKNESS 4 mm; 		$11.45 4
TO
24 675000127
NUT M12 		$2.51 2
TO
26 675000023
NUT M12
IN STOCK 		$1.57 2
IN
27 670174098
WASHER 		$20.38 2
TO
28 673013880
KIT CAMBER ADJUSTMENT PLATE
The kit includes 50 plates for each thickness; 		$1,539.63 1
TO
29 675009264
WASHER
Bespoke Assembly Number 7003417 - 99999999; 		$1.85 2
TO
