A/C Unit: Dashboard Devices

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV

Find Your Part

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV - A/C UNIT: DASHBOARD DEVICES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
673013339 GASKET KIT $48.71 To Order
Photo Part No Description Price (each) Stock
670212777 AIR INLET MODULE $41.60 To Order
Photo Part No Description Price (each) Stock
670104418 ACTUATOR $73.02 To Order
Photo Part No Description Price (each) Stock
673013332 POLLEN FILTER $49.51 IN STOCK
Photo Part No Description Price (each) Stock
675000412 NUT $1.36 To Order
Photo Part No Description Price (each) Stock
675001731 CONDENSATION DRAIN PIPE $4.28 To Order
Photo Part No Description Price (each) Stock
673013317 CENTRAL BODY $148.92 To Order
Photo Part No Description Price (each) Stock
673013334 EVAPORATOR ASSEMBLY $577.08 To Order
Photo Part No Description Price (each) Stock
673013320 WIRING HARNESS $231.81 To Order
Photo Part No Description Price (each) Stock
673013327 HEATER $145.65 To Order
Photo Part No Description Price (each) Stock
673013337 AIR INLET MODULE $33.07 To Order
Photo Part No Description Price (each) Stock
673013326 HEATER HOSE KIT $37.99 To Order
Photo Part No Description Price (each) Stock
673013335 COVER FILTER $27.93 To Order
Photo Part No Description Price (each) Stock
673013323 FRONT CASES $34.81 To Order
Photo Part No Description Price (each) Stock
673013331 ELECTROFAN $476.37 To Order
Photo Part No Description Price (each) Stock
673013328 BRACKET $61.63 To Order
Photo Part No Description Price (each) Stock
673013330 COVER FOR PIPING $15.66 To Order
Photo Part No Description Price (each) Stock
673013333 TXV KIT $160.41 To Order
Photo Part No Description Price (each) Stock
673013322 COOL PIPE BASE $102.28 To Order
Photo Part No Description Price (each) Stock
673013324 FIXING KIT $24.11 To Order
Photo Part No Description Price (each) Stock
673013340 KIT HEATER CORE PIPES FIXING $22.33 To Order
Photo Part No Description Price (each) Stock
673009333 AIR TEMPERATURE SENSOR (FEET) $37.33 To Order
Photo Part No Description Price (each) Stock
673013329 AIR TEMPERATURE SENSOR (FAN) $28.70 To Order
Photo Part No Description Price (each) Stock
673009331 EVAPORATOR SENSOR $49.33 To Order
Photo Part No Description Price (each) Stock
673013318 RH KINEMATIC MECHANISM KIT $44.28 To Order
Photo Part No Description Price (each) Stock
673013336 LH KINEMATIC MECHANISM KIT $37.62 To Order
Photo Part No Description Price (each) Stock
673013338 AIR INTAKE KINEMATIC MECHANISM KIT $14.87 To Order

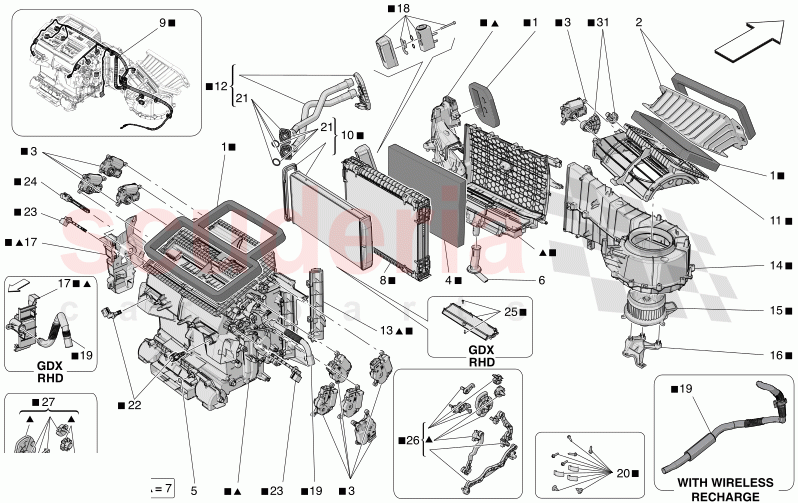

A/C UNIT: DASHBOARD DEVICES of Maserati Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 670181918
AIR CONDITIONING ASSEMBLY
Available with: A/C - CLIMATE ZONES: 3, WIRELESS PHONE CHARGE Not available with: DUAL-ZONE AUTOMATIC CLIMA; EU CN US JP ME KO N0; 		$2,387.20 1
TO
1 673013339
GASKET KIT 		$48.71 1
TO
2 670212777
AIR INLET MODULE
EU CN US JP ME KO N0; 		$41.60 1
TO
3 670104418
ACTUATOR 		$73.02 9
TO
4 673013332
POLLEN FILTER
IN STOCK 		$49.51 1
IN
5 675000412
NUT 		$1.36 5
TO
6 675001731
CONDENSATION DRAIN PIPE 		$4.28 1
TO
7 673013317
CENTRAL BODY
Available with: A/C - CLIMATE ZONES: 3 Not available with: DUAL-ZONE AUTOMATIC CLIMA; EU CN US JP ME KO N0; 		$148.92 1
TO
8 673013334
EVAPORATOR ASSEMBLY
EU CN US JP ME KO N0; 		$577.08 1
TO
9 673013320
WIRING HARNESS
Available with: A/C - CLIMATE ZONES: 3 Not available with: DUAL-ZONE AUTOMATIC CLIMA; EU CN US JP ME KO N0; 		$231.81 1
TO
10 673013327
HEATER
EU CN US JP ME KO N0; 		$145.65 1
TO
11 673013337
AIR INLET MODULE
EU CN US JP ME KO N0; 		$33.07 1
TO
12 673013326
HEATER HOSE KIT
EU CN US JP ME KO N0; 		$37.99 1
TO
13 673013335
COVER FILTER 		$27.93 1
TO
14 673013323
FRONT CASES
EU CN US JP ME KO N0; 		$34.81 1
TO
15 673013331
ELECTROFAN
EU CN US JP ME KO N0; 		$476.37 1
TO
16 673013328
BRACKET
EU CN US JP ME KO N0; 		$61.63 1
TO
17 673013330
COVER FOR PIPING
EU CN US JP ME KO N0; 		$15.66 1
TO
18 673013333
TXV KIT 		$160.41 1
TO
19 673013322
COOL PIPE BASE
Available with: WIRELESS PHONE CHARGE ; EU CN US JP ME KO N0; 		$102.28 1
TO
20 673013324
FIXING KIT
EU CN US JP ME KO N0; 		$24.11 1
TO
21 673013340
KIT HEATER CORE PIPES FIXING 		$22.33 1
TO
22 673009333
AIR TEMPERATURE SENSOR (FEET) 		$37.33 1
TO
23 673013329
AIR TEMPERATURE SENSOR (FAN)
EU CN US JP ME KO N0; 		$28.70 1
TO
24 673009331
EVAPORATOR SENSOR 		$49.33 1
TO
26 673013318
RH KINEMATIC MECHANISM KIT
Available with: A/C - CLIMATE ZONES: 3 Not available with: DUAL-ZONE AUTOMATIC CLIMA; EU CN US JP ME KO N0; 		$44.28 1
TO
27 673013336
LH KINEMATIC MECHANISM KIT 		$37.62 1
TO
31 673013338
AIR INTAKE KINEMATIC MECHANISM KIT
EU CN US JP ME KO N0; 		$14.87 1
TO
