Air Suspension System

Maserati GranCabrio M189 AUTOMATIC 4WD 3.0 BT V6 490 HP

Find Your Part

Maserati GranCabrio M189 AUTOMATIC 4WD 3.0 BT V6 490 HP - AIR SUSPENSION SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670307839 rh spring pipe $51.03 To Order
Photo Part No Description Price (each) Stock
670293671 lh spring pipe $45.99 To Order
Photo Part No Description Price (each) Stock
675001795 CLIP $3.39 To Order
Photo Part No Description Price (each) Stock
670311086 RH AIR PIPE $65.80 To Order
Photo Part No Description Price (each) Stock
670311084 LH AIR PIPE $65.80 To Order
Photo Part No Description Price (each) Stock
670311089 RH AIR HOSE UNDER THE REAR F $87.39 To Order
Photo Part No Description Price (each) Stock
670311088 LH AIR PIPE UNDER THE REAR F $87.39 To Order
Photo Part No Description Price (each) Stock
670307832 PIPE $13.60 To Order
Photo Part No Description Price (each) Stock
670307833 pipe $11.94 To Order
Photo Part No Description Price (each) Stock
670175004 CLIP $3.69 To Order
Photo Part No Description Price (each) Stock
670034997 PIPE RETAINING $1.24 To Order
Photo Part No Description Price (each) Stock
670214996 CLIP $1.24 To Order

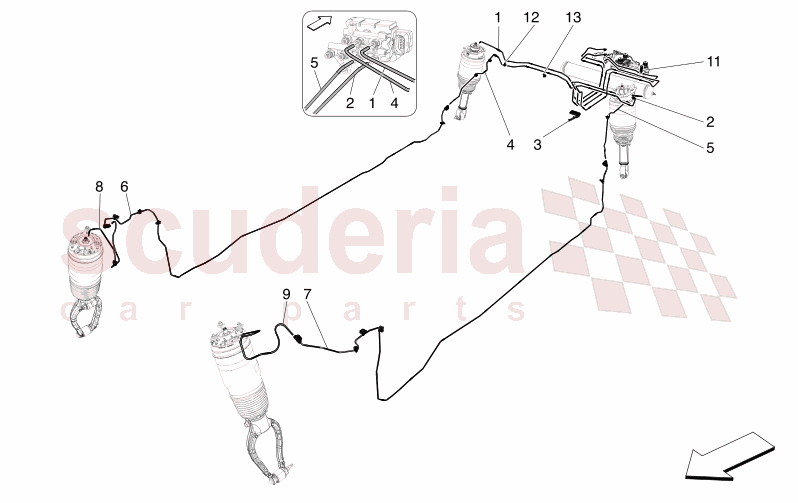

AIR SUSPENSION SYSTEM of Maserati Maserati GranCabrio M189 AUTOMATIC 4WD 3.0 BT V6 490 HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670307839
rh spring pipe
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002071 - 99999999; 		$51.03 1
TO
2 670293671
lh spring pipe 		$45.99 1
TO
3 675001795
CLIP 		$3.39 4
TO
4 670311086
RH AIR PIPE
FOR ASSEMBLY < 8002287, FOR THE FIRST REPLACE, PLEASE ORDER ALSO 670311089; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002287 - 99999999; 		$65.80 1
TO
5 670311084
LH AIR PIPE
FOR ASSEMBLY < 8002287, FOR THE FIRST REPLACE, PLEASE ORDER ALSO 670311088; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002287 - 99999999; 		$65.80 1
TO
6 670311089
RH AIR HOSE UNDER THE REAR F
FOR ASSEMBLY < 8002287 (ICE) OR ASSEMBLY < 8002283 (BEV), FOR THE FIRST REPLACE, PLEASE ORDER ALSO THE CABLE 670311086 (ICE) OR 670311087 (BEV); WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002287 - 99999999; 		$87.39 1
TO
7 670311088
LH AIR PIPE UNDER THE REAR F
FOR ASSEMBLY < 8002287 (ICE) OR ASSEMBLY < 8002283 (BEV), FOR THE FIRST REPLACE, PLEASE ORDER ALSO 670311084 (ICE) OR 670311085 (BEV); WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002287 - 99999999; 		$87.39 1
TO
8 670307832
PIPE
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002246 - 99999999; 		$13.60 1
TO
9 670307833
pipe
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002285 - 99999999; 		$11.94 1
TO
11 670175004
CLIP 		$3.69 1
TO
12 670034997
PIPE RETAINING 		$1.24 2
TO
13 670214996
CLIP 		$1.24 1
TO
