Underbody

Lamborghini Urus Performante

Find Your Part

Lamborghini Urus Performante - UNDERBODY

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M0803093F BOTTOM PLATE $233.81 To Order
4M0803093H BOTTOM PLATE $240.37 To Order
Photo Part No Description Price (each) Stock
4M0803729 EXTENSION $58.91 To Order
4M0803730 EXTENSION $58.91 To Order
Photo Part No Description Price (each) Stock
4M0803135E CLOSING ELEMENT $77.65 To Order
4M0803136E CLOSING ELEMENT $77.75 To Order
Photo Part No Description Price (each) Stock
4M0803779AG SIDE MEMBER $258.77 To Order
4M0803779AJ SIDE MEMBER $269.94 To Order
4M0803780AG SIDE MEMBER $258.77 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4M0803433D REINFORCEMENT $4.33 To Order
4M0803434A REINFORCEMENT $11.69 To Order
Photo Part No Description Price (each) Stock
4ML803415A CLAMPING BRACKET $412.45 To Order
4ML803416A CLAMPING BRACKET $412.45 To Order
Photo Part No Description Price (each) Stock
4ML803041A ARM $266.64 To Order
4ML803042A ARM $266.64 To Order
Photo Part No Description Price (each) Stock
4M0803099 CLOSING ELEMENT $171.41 To Order
4M0803100 CLOSING ELEMENT $171.41 To Order
Photo Part No Description Price (each) Stock
4M0803173G SEAT SUPPORT $190.47 To Order
4M0803174G SEAT SUPPORT $190.47 To Order
Photo Part No Description Price (each) Stock
4M0803141E SEAT SUPPORT $120.83 To Order
Photo Part No Description Price (each) Stock
4M0803285B REINFORCEMENT $66.22 To Order
4M0803286C REINFORCEMENT $67.79 To Order
Photo Part No Description Price (each) Stock
4M6803897C ARM $128.99 To Order
4M6803897E ARM Enquire To Order
Photo Part No Description Price (each) Stock
4M6803345F ARM $121.11 To Order
Photo Part No Description Price (each) Stock
N10549703 NUT, SQUARE $1.39 To Order
Photo Part No Description Price (each) Stock
4M0803227J BRACE $66.47 To Order
Photo Part No Description Price (each) Stock
4M0803228L BRACE $165.51 To Order
Photo Part No Description Price (each) Stock
N10629602 HEX COLLARED BOLT $3.43 IN STOCK
Photo Part No Description Price (each) Stock
N10664901 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD $2.98 IN STOCK
Photo Part No Description Price (each) Stock
N10728502 HEX COLLARED BOLT $3.47 IN STOCK
Photo Part No Description Price (each) Stock
N90943903 GROMMET $4.21 To Order
Photo Part No Description Price (each) Stock
N90622902 RIVET $0.48 To Order
Photo Part No Description Price (each) Stock
WHT006547 FLOW DRILL SCREW $1.21 To Order
Photo Part No Description Price (each) Stock
4ML803041A ARM $266.64 To Order
4ML803042A ARM $266.64 To Order

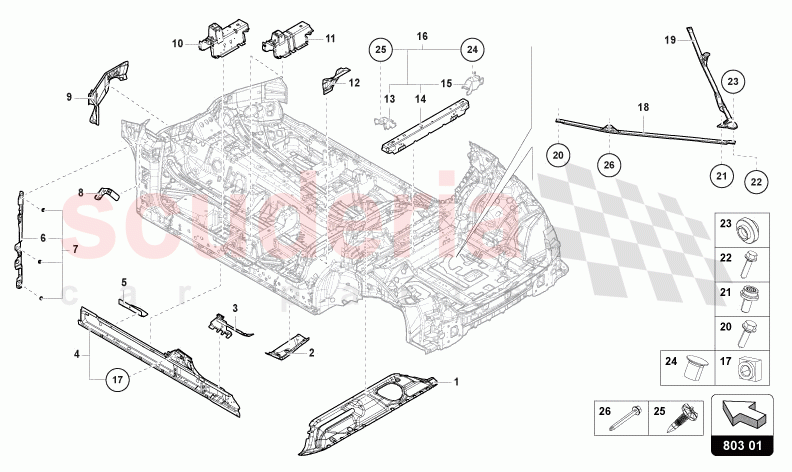

UNDERBODY of Lamborghini Lamborghini Urus Performante Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4M0803093F
BOTTOM PLATE 		$233.81 1
TO
1 4M0803093H
BOTTOM PLATE 		$240.37 1
TO
2 4M0803729
EXTENSION
LEFT 		$58.91 1
TO
2 4M0803730
EXTENSION
RIGHT 		$58.91 1
TO
3 4M0803135E
CLOSING ELEMENT
LEFT 		$77.65 1
TO
3 4M0803136E
CLOSING ELEMENT
RIGHT 		$77.75 1
TO
4 4M0803779AG
SIDE MEMBER
LEFT INNER 		$258.77 1
TO
4 4M0803779AJ
SIDE MEMBER
LEFT INNER 		$269.94 1
TO
4 4M0803780AG
SIDE MEMBER
RIGHT INNER 		$258.77 1
TO
4 4M0803780AJ
SIDE MEMBER
RIGHT INNER 		$269.94 1
TO
4 4M0803779AH
SIDE MEMBER
LEFT INNER 		$269.94 1
TO
4 4M0803779AK
SIDE MEMBER
LEFT INNER 		$269.94 1
TO
4 4M0803780AH
SIDE MEMBER
RIGHT INNER 		$262.05 1
TO
4 4M0803780AK
SIDE MEMBER
RIGHT INNER 		$269.94 1
TO
5 4M0803433D
REINFORCEMENT
LEFT OUTER 		$4.33 1
TO
5 4M0803434A
REINFORCEMENT
RIGHT OUTER 		$11.69 1
TO
7 4ML803415A
CLAMPING BRACKET
LEFT 		$412.45 1
TO
7 4ML803416A
CLAMPING BRACKET
RIGHT 		$412.45 1
TO

4ML803041A

ARM

from $266.64

4ML803042A

ARM

from $266.64

9 4M0803099
CLOSING ELEMENT
LEFT 		$171.41 1
TO
9 4M0803100
CLOSING ELEMENT
RIGHT 		$171.41 1
TO
10 4M0803173G
SEAT SUPPORT
LEFT FRONT 		$190.47 1
TO
10 4M0803174G
SEAT SUPPORT
RIGHT FRONT 		$190.47 1
TO
11 4M0803141E
SEAT SUPPORT
LEFT REAR 		$120.83 1
TO
12 4M0803285B
REINFORCEMENT
LEFT 		$66.22 1
TO
12 4M0803286C
REINFORCEMENT
RIGHT 		$67.79 1
TO
14 4M6803897C
ARM 		$128.99 1
TO
14 4M6803897E
ARM 		- 1
PE
 Enquire
16 4M6803345F
ARM 		$121.11 1
TO
17 N10549703
NUT, SQUARE
M6 		$1.39 2
TO
18 4M0803227J
BRACE
LEFT 		$66.47 1
TO
19 4M0803228L
BRACE
RIGHT 		$165.51 1
TO
20 N10629602
HEX COLLARED BOLT
IN STOCK 		$3.43 4
IN
21 N10664901
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M8X16
IN STOCK 		$2.98 (59% off) 1
IN
22 N10728502
HEX COLLARED BOLT
M10X40
IN STOCK 		$3.47 1
IN
23 N90943903
GROMMET 		$4.21 1
TO
24 N90622902
RIVET 		$0.48 4
TO
25 WHT006547
FLOW DRILL SCREW
M5X20 		$1.21 14
TO
