Name: DIFFERENTIAL
Rating: 4.4 (1 reviews)

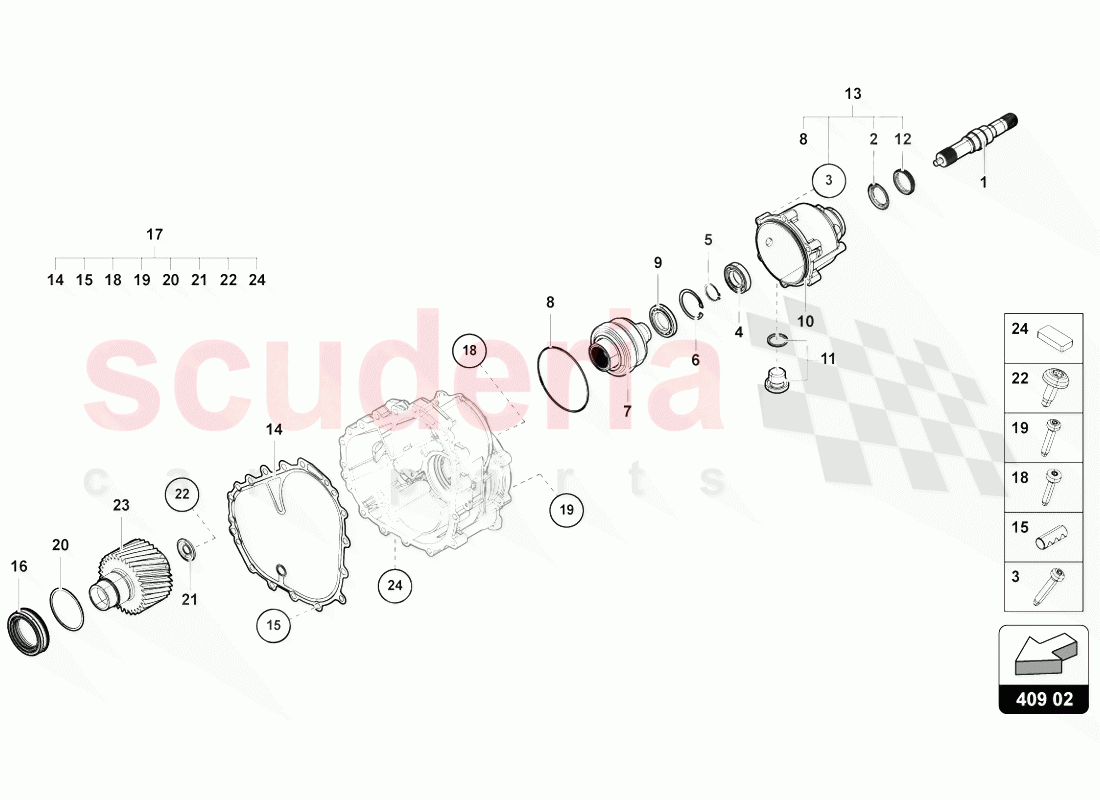

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	0BK409345	STUB SHAFT	$441.34	To Order

Photo	Part No	Description	Price (each)	Stock
		SHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		TORX SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	0B6409144	CYLINDER ROLLER BEARING	$205.57	To Order

Photo	Part No	Description	Price (each)	Stock
	01V409297	SECURING RING	$5.72	To Order

Photo	Part No	Description	Price (each)	Stock
		SECURING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	0BL409755E	CENTRE DIFFERENTIAL, SELF- LOCKING	$2,370.95	To Order

Photo	Part No	Description	Price (each)	Stock
		O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	0B6311235	BALL BEARING	$216.08	To Order

Photo	Part No	Description	Price (each)	Stock
		TRANSFER BOX HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SEAL BOLT WITH SEALING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SPLASH PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	0BK498111C	SET OF GASKETS FOR FINAL DRIVE	$135.96	To Order

Photo	Part No	Description	Price (each)	Stock
		SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		CENTRING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BALL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	0BK498111G	GASKET SET FOR TRANSFER GEARBOX	$136.62	To Order

Photo	Part No	Description	Price (each)	Stock
		SCREW WITH INT. SERRATIONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BELLEVILLE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		INPUT SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		MAGNETS	Enquire	To Order

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	0BK409345	STUB SHAFT	0BK409345 STUB SHAFT	$441.34	1	TO
			SHAFT OIL SEAL	-
2 SHAFT OIL SEAL - - PE Enquire 3 TORX SOCKET HEAD BOLT - - PE Enquire 6 SECURING RING - - PE Enquire 8 O-RING - - PE Enquire 10 TRANSFER BOX HOUSING - - PE Enquire 11 SEAL BOLT WITH SEALING RING - - PE Enquire 12 SPLASH PLATE - - PE Enquire 14 SEAL - - PE Enquire 15 CENTRING PIN - - PE Enquire 16 BALL BEARING - - PE Enquire 18 SCREW WITH INT. SERRATIONS - - PE Enquire 19 HEXAGON SOCKET HEAD BOLT - - PE Enquire 20 SHAFT OIL SEAL - - PE Enquire 21 BELLEVILLE SPRING - - PE Enquire 22 HEXAGON SOCKET HEAD BOLT - - PE Enquire 23 INPUT SHAFT - - PE Enquire 24 MAGNETS - - PE Enquire
	4	0B6409144	CYLINDER ROLLER BEARING	0B6409144 CYLINDER ROLLER BEARING	$205.57	1	TO
	5	01V409297	SECURING RING	01V409297 SECURING RING	$5.72	1	TO
	7	0BL409755E	CENTRE DIFFERENTIAL, SELF- LOCKING	0BL409755E CENTRE DIFFERENTIAL, SELF- LOCKING	$2,370.95	1	TO
	9	0B6311235	BALL BEARING	0B6311235 BALL BEARING	$216.08	1	TO
	13	0BK498111C	SET OF GASKETS FOR FINAL DRIVE	0BK498111C SET OF GASKETS FOR FINAL DRIVE	$135.96	1	TO
	17	0BK498111G	GASKET SET FOR TRANSFER GEARBOX	0BK498111G GASKET SET FOR TRANSFER GEARBOX	$136.62	1	TO

Differential

Lamborghini Urus (2018-2019)
