Mechatronic With Software

Lamborghini Urus (2018-2019)

Find Your Part

Lamborghini Urus (2018-2019) - MECHATRONIC WITH SOFTWARE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4ML927158 MECHATRONIC WITH SOFTWARE $5,235.27 To Order
Photo Part No Description Price (each) Stock
0D6398359 TRANSMISSION OIL SUMP $539.08 To Order
Photo Part No Description Price (each) Stock
SCREW WITH INT. SERRATIONS Enquire To Order
Photo Part No Description Price (each) Stock
0D5398048 1 SET OIL DRAIN PLUGS AND MONITOR SCREWS $68.69 To Order
Photo Part No Description Price (each) Stock
SEALING PLUG Enquire To Order
Photo Part No Description Price (each) Stock
SEALING PLUG Enquire To Order
Photo Part No Description Price (each) Stock
4ML323571 CONVERTER $3,550.67 To Order
Photo Part No Description Price (each) Stock
N91143203 12-POINT HEAD BOLT $4.35 To Order
Photo Part No Description Price (each) Stock
0BL325585 HYDRAULIC PULSE MEMORY $1,264.76 To Order
Photo Part No Description Price (each) Stock
GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
O-RING Enquire To Order
Photo Part No Description Price (each) Stock
HEXAGON SOCKET FLAT HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
GUIDE SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
HEXAGON SOCKET FLAT HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
HEXAGON SOCKET FLAT HEAD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
WHT000488 HEXAGON SOCKET HEAD BOLT $2.79 To Order
Photo Part No Description Price (each) Stock
018325061B SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) $7.41 To Order
Photo Part No Description Price (each) Stock
4H0301325A GUARD PLATE $39.06 IN STOCK
Photo Part No Description Price (each) Stock
N91203204 PAN HEAD BOLT W/ MULTI-POINT DRIVE, SELF-LOCKING $1.68 To Order
Photo Part No Description Price (each) Stock
0D5398047 SUNDRY PARTS SET $235.87 To Order
Photo Part No Description Price (each) Stock
PIPE Enquire To Order
Photo Part No Description Price (each) Stock
BREATHER LINE Enquire To Order
Photo Part No Description Price (each) Stock
O-RING Enquire To Order
Photo Part No Description Price (each) Stock
GASKET FOR OIL SUMP Enquire To Order

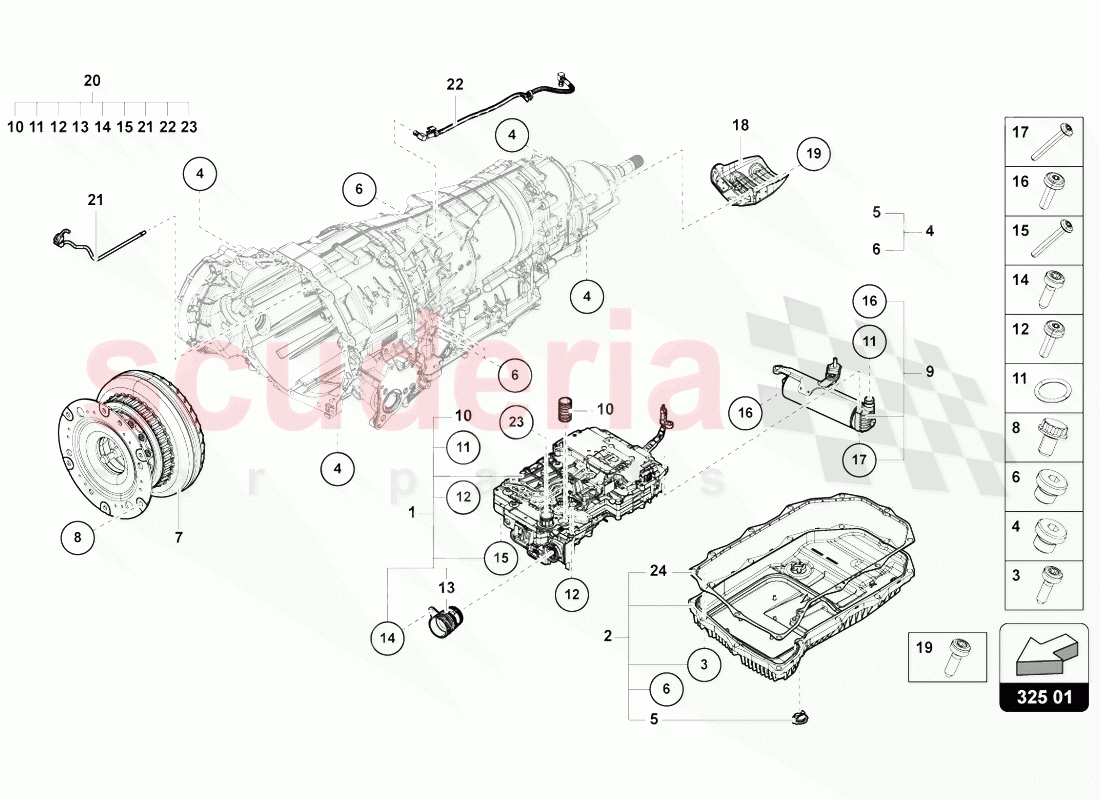

MECHATRONIC WITH SOFTWARE of Lamborghini Lamborghini Urus (2018-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4ML927158
MECHATRONIC WITH SOFTWARE 		$5,235.27 -
TO
2 0D6398359
TRANSMISSION OIL SUMP 		$539.08 1
TO

SCREW WITH INT. SERRATIONS

 -
4 0D5398048
1 SET OIL DRAIN PLUGS AND MONITOR SCREWS 		$68.69 1
TO
7 4ML323571
CONVERTER 		$3,550.67 -
TO
8 N91143203
12-POINT HEAD BOLT
M10X1X15,5 		$4.35 6
TO
9 0BL325585
HYDRAULIC PULSE MEMORY 		$1,264.76 1
TO
16 WHT000488
HEXAGON SOCKET HEAD BOLT
M6 		$2.79 2
TO
17 018325061B
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
M6X60 		$7.41 1
TO
18 4H0301325A
GUARD PLATE
IN STOCK 		$39.06 1
IN
19 N91203204
PAN HEAD BOLT W/ MULTI-POINT DRIVE, SELF-LOCKING
M8X22 		$1.68 4
TO
20 0D5398047
SUNDRY PARTS SET 		$235.87 1
TO
