Name: VOLTAGE WIRING SET FOR HIGH-VOLTAGE BATTERY AND POWER ELECTRONICS REAR
Rating: 5.0 (1 reviews)

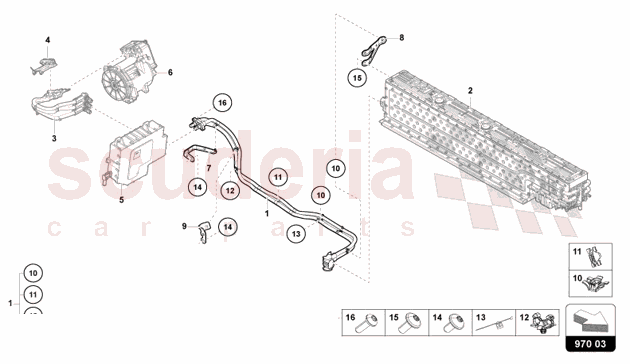

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B971106A	HIGH-VOLTAGE WIRING SET FOR HIGH-VOLTAGE BATTERY AND POWER ELECTRONICS	$2,384.07	To Order

Photo	Part No	Description	Price (each)	Stock
	47A907102C	BRACKET	$41.32	To Order

Photo	Part No	Description	Price (each)	Stock
	47A907102G	BRACKET	$40.52	To Order

Photo	Part No	Description	Price (each)	Stock
	47B971341	BRACKET	$33.90	To Order

Photo	Part No	Description	Price (each)	Stock
	4G0971838	CABLE HOLDER	$4.14	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0971838F	CABLE TIE WITH HOLDER FOR WELD PIN:	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	9J1971850	DOUBLE BINDER CABLE TIE WITH BRACKET FOR	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	N90937701	CABLE TIES	$1.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10741402	HEXAGON SOCKET FLAT HEAD BOLT	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	N90944604	OVAL HEXAGON SOCKET HEAD BOLT	$2.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	$1.31	IN STOCK

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	47B971106A	HIGH-VOLTAGE WIRING SET FOR HIGH-VOLTAGE BATTERY AND POWER ELECTRONICS	47B971106A HIGH-VOLTAGE WIRING SET FOR HIGH-VOLTAGE BATTERY AND POWER ELECTRONICS	$2,384.07	1	TO
7	47A907102C	BRACKET	47A907102C BRACKET	$41.32	1	TO
8	47A907102G	BRACKET	47A907102G BRACKET	$40.52	1	TO
9	47B971341	BRACKET	47B971341 BRACKET	$33.90	1	TO
10	4G0971838	CABLE HOLDER	4G0971838 CABLE HOLDER	$4.14	1	TO
11	3D0971838F	CABLE TIE WITH HOLDER FOR WELD PIN:	3D0971838F CABLE TIE WITH HOLDER FOR WELD PIN: 5	$2.77	1	TO
12	9J1971850	DOUBLE BINDER CABLE TIE WITH BRACKET FOR	9J1971850 DOUBLE BINDER CABLE TIE WITH BRACKET FOR BLACK 6,5/0,6-3,0	$1.97	1	TO
13	N90937701	CABLE TIES IN STOCK	N90937701 CABLE TIES 4.6X193 OUTER IN STOCK	$1.51 MSRP: ~~2.00~~ (24.5% off)	1	IN
14	N10741402	HEXAGON SOCKET FLAT HEAD BOLT	N10741402 HEXAGON SOCKET FLAT HEAD BOLT M6X14	$1.39	1	TO
15	N90944604	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90944604 OVAL HEXAGON SOCKET HEAD BOLT M5X12 IN STOCK	$2.37 MSRP: ~~7.16~~ (66.9% off)	1	IN
16	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE M6X18 IN STOCK	$1.31	1	IN

Voltage Wiring Set For High-Voltage Battery And Power Electr...

Lamborghini Revuelto Coupe
