12V

Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - 12V

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4P0915089 BATTERY $960.28 To Order
95C915105JY LITHIUM BATTERY $2,709.93 To Order
95C915105GY LITHIUM BATTERY $1,994.56 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
47A803123E SUPPORT $1,145.42 To Order
47C803123C SUPPORT $1,221.60 To Order
Photo Part No Description Price (each) Stock
4G0915531 CORRUGATED PIPE $5.72 To Order
47B915505 CORRUGATED PIPE $37.36 To Order
Photo Part No Description Price (each) Stock
9J1915137B TERMINAL CLAMP $16.89 To Order
Photo Part No Description Price (each) Stock
47A803123A BRACKET $59.97 To Order
Photo Part No Description Price (each) Stock
1EA915181C WIRING SET FOR BATTERY - $95.77 To Order
8S0915181D CONTROL UNIT FOR BATTERY MONITORING $270.60 To Order
9Y0971235 EARTH CABLE FOR BATTERY $87.48 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
9J1937587C COVER $7.16 To Order
Photo Part No Description Price (each) Stock
9J1937588 COVER $14.78 To Order
Photo Part No Description Price (each) Stock
N01508210 HEXAGON COLLAR NUT $1.92 IN STOCK
Photo Part No Description Price (each) Stock
N10748001 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING $1.02 IN STOCK
Photo Part No Description Price (each) Stock
4H0915143 GROMMET $1.22 To Order
Photo Part No Description Price (each) Stock
WHT003401 WELD STUDS WITH CAP NUTS $7.23 To Order
Photo Part No Description Price (each) Stock
9J1805769 SLAVE START SOCKET $3.09 To Order

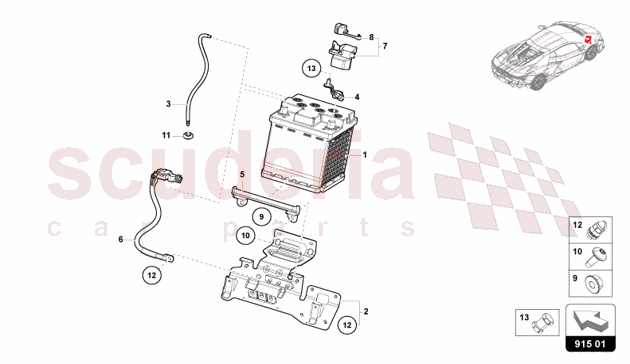

12V of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4P0915089
BATTERY
PB 		$960.28 1
TO
1 95C915105JY
LITHIUM BATTERY
H3-40AH 		$2,709.93 1
TO
1 95C915105GY
LITHIUM BATTERY
40 AH 		$1,994.56 1
TO
1 000915089BG
BATTERY, FILLED AND CHARGED
PB 		$1,521.68 1
TO
2 47A803123E
SUPPORT 		$1,145.42 1
TO
2 47C803123C
SUPPORT 		$1,221.60 1
TO
3 4G0915531
CORRUGATED PIPE 		$5.72 1
TO
3 47B915505
CORRUGATED PIPE 		$37.36 1
TO
4 9J1915137B
TERMINAL CLAMP 		$16.89 1
TO
5 47A803123A
BRACKET 		$59.97 1
TO
6 1EA915181C
WIRING SET FOR BATTERY - 		$95.77 1
TO
6 8S0915181D
CONTROL UNIT FOR BATTERY MONITORING 		$270.60 1
TO
6 9Y0971235
EARTH CABLE FOR BATTERY 		$87.48 1
TO
6 1EA911137A
POTENTIAL DISTRIBUTOR 		- 1
PE
 Enquire
7 9J1937587C
COVER 		$7.16 1
TO
8 9J1937588
COVER 		$14.78 1
TO
9 N01508210
HEXAGON COLLAR NUT
M6
IN STOCK 		$1.92 1
IN
10 N10748001
HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING
6X16
IN STOCK 		$1.02 (86% off) 1
IN
11 4H0915143
GROMMET
M8 		$1.22 1
TO
12 WHT003401
WELD STUDS WITH CAP NUTS
M8 		$7.23 1
TO
13 9J1805769
SLAVE START SOCKET 		$3.09 1
TO
