Lid

Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - LID

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B827047GRU SIDE PART $34,887.47 To Order
47B827048GRU SIDE PART $36,562.23 To Order
Photo Part No Description Price (each) Stock
47B827025AGRU REAR LID $24,957.17 To Order
47B827025BGRU REAR LID $24,957.17 To Order
47B827025CGRU REAR LID $24,957.17 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
47B827105 HEAT INSULATION (SELF-ADHESIVE) $55.44 To Order
47B827106 HEAT INSULATION (SELF-ADHESIVE) $55.44 To Order
Photo Part No Description Price (each) Stock
47B819127 INTAKE AIR DUCT $1,569.68 To Order
Photo Part No Description Price (each) Stock
47B827523 BRACKET $80.66 To Order
47B827604 BRACKET $79.89 To Order
Photo Part No Description Price (each) Stock
47B827729 BRACKET $56.82 To Order
Photo Part No Description Price (each) Stock
47B827393A BRACKET $71.32 To Order
Photo Part No Description Price (each) Stock
47B827594 SEALING STRIP (SELF-ADHESIVE) $121.24 To Order
Photo Part No Description Price (each) Stock
47B810427 BRACKET $28.50 To Order
47B810428 BRACKET $27.94 To Order
Photo Part No Description Price (each) Stock
47B807967 SIDE MEMBER EXTENSION $13.05 To Order
47B807968 SIDE MEMBER EXTENSION $13.05 To Order
Photo Part No Description Price (each) Stock
N10738101 HEX SOCKET HEAD BOLT (COMBI) $0.91 IN STOCK
Photo Part No Description Price (each) Stock
N10483102 HEX SOCKET HEAD BOLT (COMBI) $1.39 IN STOCK
Photo Part No Description Price (each) Stock
N90910102 OVAL SOCKET HEAD BOLT WITH HEX DRIVE $1.09 IN STOCK
Photo Part No Description Price (each) Stock
470907449 PIN $32.97 To Order
Photo Part No Description Price (each) Stock
N10017307 HEXAGON COLLAR NUT $1.77 IN STOCK
Photo Part No Description Price (each) Stock
N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6 X 16 $1.57 IN STOCK
Photo Part No Description Price (each) Stock
N90684704 HEXAGON SOCKET HEAD BOLT (COMBI) $1.10 IN STOCK
Photo Part No Description Price (each) Stock
N10757101 HEXAGON HEAD BOLT (COMBI) $0.68 To Order
Photo Part No Description Price (each) Stock
N90526602 SPEED NUT $1.13 IN STOCK
Photo Part No Description Price (each) Stock
N91121101 HEXALOBULAR FLANGE SCREW $2.29 IN STOCK
Photo Part No Description Price (each) Stock
4B0823481 STOP BUFFER $3.76 IN STOCK
Photo Part No Description Price (each) Stock
N90917105 HEX SOCKET OVAL HEAD COLLARED $0.94 To Order
Photo Part No Description Price (each) Stock
N10595002 ROUND HD. SCREW $1.44 IN STOCK
Photo Part No Description Price (each) Stock
N91109201 WASHER $1.51 IN STOCK
Photo Part No Description Price (each) Stock
N90531001 WASHER $1.09 To Order
Photo Part No Description Price (each) Stock
WHT009087 WASHER $1.44 To Order
Photo Part No Description Price (each) Stock
47B827909 BRACKET $7.10 To Order
47B827910 BRACKET $7.10 To Order
Photo Part No Description Price (each) Stock
WHT011163 RIVETTED CAP NUT $10.72 To Order

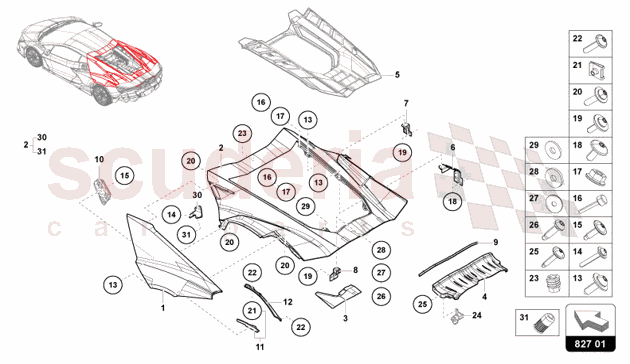

LID of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B827047GRU
SIDE PART
PRIMED-PRIMED 		$34,887.47 1
TO
1 47B827048GRU
SIDE PART
PRIMED-PRIMED 		$36,562.23 1
TO
2 47B827025AGRU
REAR LID
PRIMED BC + SHINY BLACK-PRIMED 		$24,957.17 1
TO
2 47B827025BGRU
REAR LID
PRIMED BC + CARBON MATT + MATT BLACK-PRIMED 		$24,957.17 1
TO
2 47B827025CGRU
REAR LID
PRIMED BC + CARBON SHINY + SHINY BLACK-PRIMED 		$24,957.17 1
TO
2 47B827025GRU
REAR LID
COMPLETELY PRIMED-PRIMED 		$24,957.17 1
TO
2 47B827025J
REAR LID
CARBON LOOK MATT + AIR INLET BLACK MATT + NACA CARBON LOOK MATT 		$21,016.55 1
TO
2 47B827025K
REAR LID
CARBON LOOK SHINY + AIR INLET SHINY BLACK + NACA CARBON LOOK SHINY 		$22,330.10 1
TO
3 47B827105
HEAT INSULATION (SELF-ADHESIVE)
LEFT 		$55.44 1
TO
3 47B827106
HEAT INSULATION (SELF-ADHESIVE)
RIGHT 		$55.44 1
TO
4 47B819127
INTAKE AIR DUCT 		$1,569.68 1
TO
6 47B827523
BRACKET
LEFT 		$80.66 1
TO
6 47B827604
BRACKET
RIGHT 		$79.89 1
TO
7 47B827729
BRACKET 		$56.82 1
TO
8 47B827393A
BRACKET 		$71.32 1
TO
9 47B827594
SEALING STRIP (SELF-ADHESIVE) 		$121.24 1
TO
11 47B810427
BRACKET 		$28.50 1
TO
11 47B810428
BRACKET 		$27.94 1
TO
12 47B807967
SIDE MEMBER EXTENSION
LEFT 		$13.05 1
TO
12 47B807968
SIDE MEMBER EXTENSION
RIGHT 		$13.05 1
TO
13 N10738101
HEX SOCKET HEAD BOLT (COMBI)
M5X16
IN STOCK 		$0.91 1
IN
14 N10483102
HEX SOCKET HEAD BOLT (COMBI)
M6X50
IN STOCK 		$1.39 (80.5% off) 1
IN
15 N90910102
OVAL SOCKET HEAD BOLT WITH HEX DRIVE
M5X18
IN STOCK 		$1.09 (85.1% off) 1
IN
16 470907449
PIN 		$32.97 1
TO
17 N10017307
HEXAGON COLLAR NUT
M5
IN STOCK 		$1.77 (75.9% off) 1
IN
18 N91042302
OVAL HEXAGON SOCKET HEAD BOLT M6 X 16
M6X16
IN STOCK 		$1.57 1
IN
19 N90684704
HEXAGON SOCKET HEAD BOLT (COMBI)
M6X20
IN STOCK 		$1.10 1
IN
20 N10757101
HEXAGON HEAD BOLT (COMBI) 		$0.68 1
TO
21 N90526602
SPEED NUT
M4X13,6X15
IN STOCK 		$1.13 (84.5% off) 1
IN
22 N91121101
HEXALOBULAR FLANGE SCREW
IN STOCK 		$2.29 1
IN
23 4B0823481
STOP BUFFER
IN STOCK 		$3.76 (47.3% off) 1
IN
25 N90917105
HEX SOCKET OVAL HEAD COLLARED
M5X25W 		$0.94 (87% off) 1
TO
26 N10595002
ROUND HD. SCREW
M5X18
IN STOCK 		$1.44 1
IN
27 N91109201
WASHER
5,3X20X1
IN STOCK 		$1.51 (74.2% off) 1
IN
28 N90531001
WASHER
5,5X16X2 		$1.09 (85% off) 1
TO
29 WHT009087
WASHER
5.3X15X1 		$1.44 1
TO
30 47B827909
BRACKET
LEFT 		$7.10 1
TO
30 47B827910
BRACKET
RIGHT 		$7.10 1
TO
31 WHT011163
RIVETTED CAP NUT 		$10.72 1
TO
