Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - SHIELD

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B825709 HEAT SHIELD FOR REAR SILENCER $1,320.10 To Order
Photo Part No Description Price (each) Stock
47B825611 HEAT SHIELD $1,157.24 To Order
Photo Part No Description Price (each) Stock
47B825613 HEAT SHIELD $621.31 To Order
Photo Part No Description Price (each) Stock
47B825729 HEAT SHIELD $190.47 To Order
Photo Part No Description Price (each) Stock
47B825731 HEAT SHIELD FOR FUEL TANK $349.42 To Order
47B825732 HEAT SHIELD FOR FUEL TANK $349.42 To Order
Photo Part No Description Price (each) Stock
47B825730 HEAT SHIELD $242.33 To Order
Photo Part No Description Price (each) Stock
N90342502 SPEED NUT $4.73 To Order
Photo Part No Description Price (each) Stock
N90737107 OVAL HEXAGON SOCKET HEAD BOLT $1.09 IN STOCK
Photo Part No Description Price (each) Stock
N91042301 OVAL HEXAGON SOCKET HEAD BOLT $1.21 IN STOCK
Photo Part No Description Price (each) Stock
N10741402 HEXAGON SOCKET FLAT HEAD BOLT $1.39 To Order
Photo Part No Description Price (each) Stock
N90434905 HEX. NUT WITH WASHER $0.57 To Order
Photo Part No Description Price (each) Stock
N10748001 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING $1.02 IN STOCK
Photo Part No Description Price (each) Stock
N10335206 HEXAGON SOCKET FLAT HEAD BOLT $1.39 IN STOCK

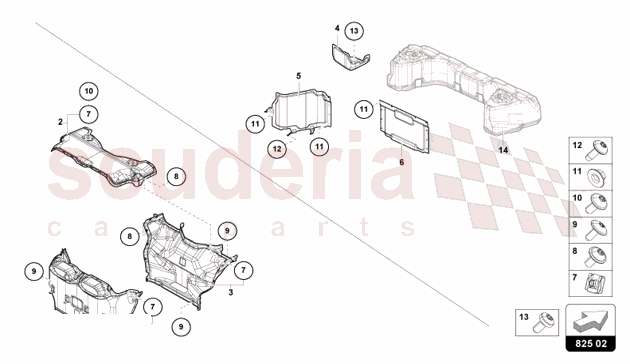

SHIELD of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B825709
HEAT SHIELD FOR REAR SILENCER 		$1,320.10 1
TO
2 47B825611
HEAT SHIELD 		$1,157.24 1
TO
3 47B825613
HEAT SHIELD 		$621.31 1
TO
4 47B825729
HEAT SHIELD 		$190.47 1
TO
5 47B825731
HEAT SHIELD FOR FUEL TANK
LEFT 		$349.42 1
TO
5 47B825732
HEAT SHIELD FOR FUEL TANK
RIGHT 		$349.42 1
TO
6 47B825730
HEAT SHIELD 		$242.33 1
TO
7 N90342502
SPEED NUT
M6X19,5X18 		$4.73 (32.8% off) 1
TO
8 N90737107
OVAL HEXAGON SOCKET HEAD BOLT
M6X12
IN STOCK 		$1.09 (85% off) 1
IN
9 N91042301
OVAL HEXAGON SOCKET HEAD BOLT
M6X16
IN STOCK 		$1.21 (83.4% off) 1
IN
10 N10741402
HEXAGON SOCKET FLAT HEAD BOLT
M6X14 		$1.39 1
TO
11 N90434905
HEX. NUT WITH WASHER
M5 		$0.57 1
TO
12 N10748001
HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING
6X16
IN STOCK 		$1.02 (86% off) 1
IN
13 N10335206
HEXAGON SOCKET FLAT HEAD BOLT
M6X12
IN STOCK 		$1.39 1
IN
