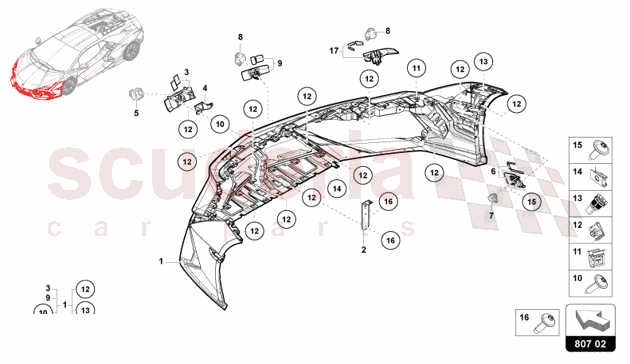

FRONT of Lamborghini Lamborghini Revuelto Coupe

Lamborghini Revuelto Coupe - FRONT

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B807429BGRU	BUMPER, PRIMED	$5,438.06	To Order
	47B807429QGRU	BUMPER, PRIMED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B807677A	BRACKET	$53.74	To Order

Photo	Part No	Description	Price (each)	Stock
	47B807317	REINFORCEMENT	$135.32	To Order

Photo	Part No	Description	Price (each)	Stock
	47B807692	BRACKET	$31.13	To Order

Photo	Part No	Description	Price (each)	Stock
	47B919261B98	SENSOR BRACKET	$229.22	To Order
	47B919261Y9B	SENSOR BRACKET	$229.22	To Order
	47B919262B98	SENSOR BRACKET	$229.22	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N90698605	HEXAGON SOCKET HEAD PANEL BOLT	$1.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8T0853107	CLIP	$0.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90475903	SPEED NUT	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	47B807897	ADJUSTMENT PART	$7.70	To Order

Photo	Part No	Description	Price (each)	Stock
	N90688703	SPEED NUT CLAMP M6 X 23 8 X 16	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90986802	HEXAGON SOCKET HEAD PANEL BOLT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	N10725401	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	$1.44	To Order

Photo	Part No	Description	Price (each)	Stock
	47B919291	BRACKET FOR DISTANCE MEASURING SENSOR	$329.70	To Order
	47B919292	BRACKET FOR DISTANCE MEASURING SENSOR	$329.70	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
1	47B807429BGRU	BUMPER, PRIMED	47B807429BGRU BUMPER, PRIMED PRIMED	$5,438.06	1	TO
1	47B807429QGRU	BUMPER, PRIMED	47B807429QGRU BUMPER, PRIMED PRIMED	-	1	PE	Enquire
2	47B807677A	BRACKET	47B807677A BRACKET	$53.74	1	TO
3	47B807317	REINFORCEMENT	47B807317 REINFORCEMENT	$135.32	1	TO
4	47B807692	BRACKET	47B807692 BRACKET	$31.13	1	TO
6	47B919261B98	SENSOR BRACKET	47B919261B98 SENSOR BRACKET MATT-SATIN BLACK	$229.22	1	TO
6	47B919261Y9B	SENSOR BRACKET	47B919261Y9B SENSOR BRACKET SHINY-BRILLIANT BLACK	$229.22	1	TO
6	47B919262B98	SENSOR BRACKET	47B919262B98 SENSOR BRACKET MATT-SATIN BLACK	$229.22	1	TO
6	47B919262Y9B	SENSOR BRACKET	47B919262Y9B SENSOR BRACKET MATT-BRILLIANT BLACK	$229.22	1	TO
10	N90698605	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90698605 HEXAGON SOCKET HEAD PANEL BOLT ST4,2X16 IN STOCK	$1.50 MSRP: ~~7.35~~ (79.6% off)	1	IN
11	8T0853107	CLIP IN STOCK	8T0853107 CLIP IN STOCK	$0.73 MSRP: ~~7.29~~ (90% off)	1	IN
12	N90475903	SPEED NUT IN STOCK	N90475903 SPEED NUT M5X13,6X11,5 IN STOCK	$1.16 MSRP: ~~7.19~~ (83.9% off)	1	IN
13	47B807897	ADJUSTMENT PART	47B807897 ADJUSTMENT PART	$7.70	1	TO
14	N90688703	SPEED NUT CLAMP M6 X 23 8 X 16 IN STOCK	N90688703 SPEED NUT CLAMP M6 X 23 8 X 16 M6X24X16 IN STOCK	$1.19	1	IN
15	N90986802	HEXAGON SOCKET HEAD PANEL BOLT	N90986802 HEXAGON SOCKET HEAD PANEL BOLT 4,2X13	$0.32	1	TO
16	N10725401	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	N10725401 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING M6X20	$1.44	1	TO
17	47B919291	BRACKET FOR DISTANCE MEASURING SENSOR	47B919291 BRACKET FOR DISTANCE MEASURING SENSOR VERTICAL FIN PLASTIC-LEFT	$329.70	1	TO
17	47B919292	BRACKET FOR DISTANCE MEASURING SENSOR	47B919292 BRACKET FOR DISTANCE MEASURING SENSOR VERTICAL FIN PLASTIC-RIGHT	$329.70	1	TO
