Rear

Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - REAR

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B813031B REAR END $36,798.67 To Order
Photo Part No Description Price (each) Stock
N10673002 12-POINT SOCKET HEAD BOLT (COMBI) $6.50 To Order
Photo Part No Description Price (each) Stock
N91303101 12-POINT SOCKET HEAD BOLT (COMBI) $9.66 To Order
Photo Part No Description Price (each) Stock
N10609209 HEXAGON FLANGE NUT, SELF-LOCKING $4.21 To Order
Photo Part No Description Price (each) Stock
WHT003401 WELD STUDS WITH CAP NUTS $7.23 To Order

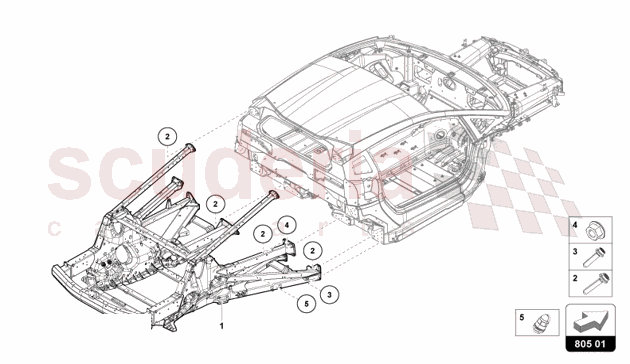

REAR of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B813031B
REAR END 		$36,798.67 1
TO
2 N10673002
12-POINT SOCKET HEAD BOLT (COMBI) 		$6.50 1
TO
3 N91303101
12-POINT SOCKET HEAD BOLT (COMBI) 		$9.66 1
TO
4 N10609209
HEXAGON FLANGE NUT, SELF-LOCKING 		$4.21 1
TO
5 WHT003401
WELD STUDS WITH CAP NUTS
M8 		$7.23 1
TO
