Cooling System - High Voltage Cooling

Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - COOLING SYSTEM - HIGH VOLTAGE COOLING

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B121083A COOLANT PIPE $290.95 To Order
Photo Part No Description Price (each) Stock
47B121101A COOLANT HOSE $40.19 To Order
Photo Part No Description Price (each) Stock
47B121075A COOLANT PIPE $484.70 To Order
Photo Part No Description Price (each) Stock
47B121739A DOUBLE GROMMET $54.64 To Order
Photo Part No Description Price (each) Stock
47B121585A GROMMET $56.23 To Order
Photo Part No Description Price (each) Stock
47B121217B BRACKET $42.50 To Order
Photo Part No Description Price (each) Stock
47B121365B BEARING SLEEVE $33.03 To Order
Photo Part No Description Price (each) Stock
47B121399B COOLANT PIPE $503.08 To Order
Photo Part No Description Price (each) Stock
N90687001 SPRING BAND CLAMP $7.39 IN STOCK
Photo Part No Description Price (each) Stock
N91115401 SPRING BAND CLAMP $5.39 To Order
Photo Part No Description Price (each) Stock
N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE $1.31 IN STOCK
Photo Part No Description Price (each) Stock
8K0129734C BUSH $7.83 To Order
Photo Part No Description Price (each) Stock
4S0129669A GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
N10442204 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) $1.99 IN STOCK

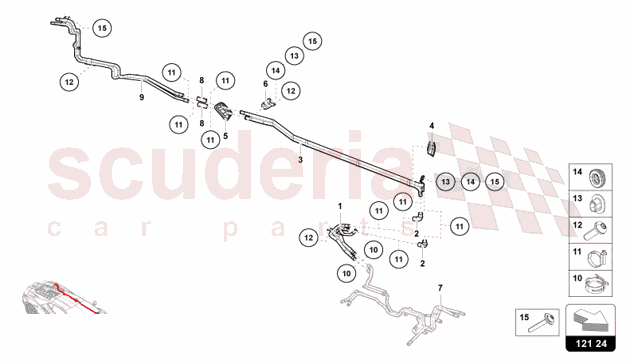

COOLING SYSTEM - HIGH VOLTAGE COOLING of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B121083A
COOLANT PIPE 		$290.95 1
TO
2 47B121101A
COOLANT HOSE 		$40.19 1
TO
3 47B121075A
COOLANT PIPE 		$484.70 1
TO
4 47B121739A
DOUBLE GROMMET 		$54.64 1
TO
5 47B121585A
GROMMET 		$56.23 1
TO
6 47B121217B
BRACKET 		$42.50 1
TO
8 47B121365B
BEARING SLEEVE 		$33.03 1
TO
9 47B121399B
COOLANT PIPE 		$503.08 1
TO
10 N90687001
SPRING BAND CLAMP
27X12
IN STOCK 		$7.39 1
IN
11 N91115401
SPRING BAND CLAMP
A20-32X9 		$5.39 1
TO
12 N10196103
OVAL SOCKET HEAD BOLT WITH HEX DRIVE
M6X18
IN STOCK 		$1.31 1
IN
13 8K0129734C
BUSH 		$7.83 1
TO
14 4S0129669A
GROMMET 		- 1
PE
 Enquire
15 N10442204
HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
M6X40
IN STOCK 		$1.99 (72.1% off) 1
IN
