COOLING SYSTEM WATER SYSTEM of Lamborghini Lamborghini Revuelto Coupe

Lamborghini Revuelto Coupe - COOLING SYSTEM WATER SYSTEM

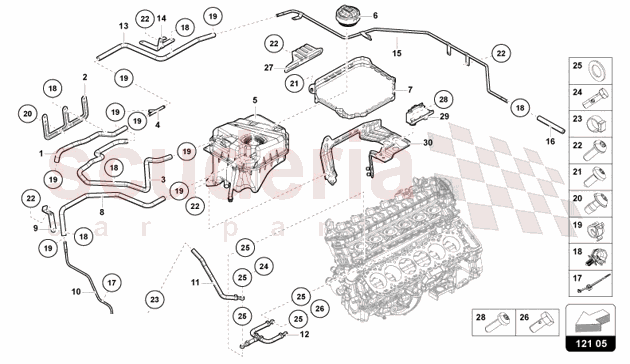

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B121580A	BREATHER LINE	$65.69	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121384A	BRACKET	$27.20	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121378A	BREATHER LINE	$79.74	To Order

Photo	Part No	Description	Price (each)	Stock
	470133794A	T-PIECE	$102.34	To Order

Photo	Part No	Description	Price (each)	Stock
	420121403	RESERVOIR	$457.24	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	420121321	END CAP	$134.73	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	47B121263A	BRACKET	$166.18	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121575A	BREATHER LINE	$63.84	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121703A	BRACKET	$24.58	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121566A	BREATHER LINE	$106.79	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121476A	BREATHER LINE	$191.12	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121439A	BREATHER LINE	$768.41	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121531A	BREATHER LINE	$64.29	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121627A	BRACKET	$29.30	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121465A	BREATHER LINE	$340.21	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121455A	BREATHER LINE	$47.70	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0971838	CABLE TIES	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	3B0971848B	CLIP	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986501	SPRING BAND CLAMP	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	N10683901	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10198301	EAR CRIMP HOSE CLAMP	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT010404	BANJO BOLT	$76.72	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138304	SEAL RING	$3.22	To Order

Photo	Part No	Description	Price (each)	Stock
	N91043801	BANJO BOLT	$76.45	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121660B	BRACKET	$38.36	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	$1.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7L0121093A	BRACKET	$15.19	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121527A	BRACKET	$82.88	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	47B121580A	BREATHER LINE	47B121580A BREATHER LINE	$65.69	1	TO
2	47B121384A	BRACKET	47B121384A BRACKET	$27.20	1	TO
3	47B121378A	BREATHER LINE	47B121378A BREATHER LINE	$79.74	1	TO
4	470133794A	T-PIECE	470133794A T-PIECE	$102.34	1	TO
5	420121403	RESERVOIR ARRIVING SOON	420121403 RESERVOIR ARRIVING SOON	$457.24	1	AS
6	420121321	END CAP ARRIVING SOON	420121321 END CAP ARRIVING SOON	$134.73	1	AS
7	47B121263A	BRACKET	47B121263A BRACKET	$166.18	1	TO
8	47B121575A	BREATHER LINE	47B121575A BREATHER LINE	$63.84	1	TO
9	47B121703A	BRACKET	47B121703A BRACKET	$24.58	1	TO
10	47B121566A	BREATHER LINE	47B121566A BREATHER LINE	$106.79	1	TO
11	47B121476A	BREATHER LINE	47B121476A BREATHER LINE	$191.12	1	TO
12	47B121439A	BREATHER LINE	47B121439A BREATHER LINE	$768.41	1	TO
13	47B121531A	BREATHER LINE	47B121531A BREATHER LINE	$64.29	1	TO
14	47B121627A	BRACKET	47B121627A BRACKET	$29.30	1	TO
15	47B121465A	BREATHER LINE	47B121465A BREATHER LINE	$340.21	1	TO
16	47B121455A	BREATHER LINE	47B121455A BREATHER LINE	$47.70	1	TO
17	3W0971838	CABLE TIES	3W0971838 CABLE TIES 4,6X193MM 6,5/0,3-3,0MM	$1.19 MSRP: ~~7.23~~ (83.5% off)	1	TO
18	3B0971848B	CLIP	3B0971848B CLIP	$0.35 MSRP: ~~7.09~~ (95.1% off)	1	TO
19	N90986501	SPRING BAND CLAMP	N90986501 SPRING BAND CLAMP 14,5X12	$2.29 MSRP: ~~7.10~~ (67.7% off)	1	TO
20	N10683901	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10683901 OVAL SOCKET HEAD BOLT WITH HEX DRIVE 6X12	$0.54 MSRP: ~~7.33~~ (92.6% off)	1	TO
21	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT M6X16 IN STOCK	$1.60	1	IN
22	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE M6X18 IN STOCK	$1.31	1	IN
23	N10198301	EAR CRIMP HOSE CLAMP	N10198301 EAR CRIMP HOSE CLAMP 13.3X7X0.6	$2.77	1	TO
24	WHT010404	BANJO BOLT	WHT010404 BANJO BOLT	$76.72	1	TO
25	N0138304	SEAL RING	N0138304 SEAL RING	$3.22	1	TO
26	N91043801	BANJO BOLT	N91043801 BANJO BOLT	$76.45	1	TO
27	47B121660B	BRACKET	47B121660B BRACKET	$38.36	1	TO
28	N10124308	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124308 OVAL HEXAGON SOCKET HEAD BOLT M6X20 IN STOCK	$1.92 MSRP: ~~7.26~~ (73.6% off)	1	IN
29	7L0121093A	BRACKET	7L0121093A BRACKET EXPANSIONE TANK	$15.19	1	TO
30	47B121527A	BRACKET	47B121527A BRACKET	$82.88	1	TO
