Name: COOLING SYSTEM WATER SYSTEM
Rating: 4.1 (1 reviews)

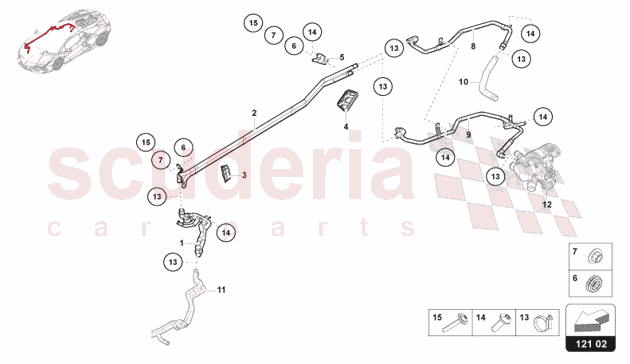

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B121086A	COOLANT HOSE	$526.72	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121082A	COOLANT HOSE	$501.77	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121078A	RETAINING PIECE	$34.50	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121077A	RETAINING PIECE	$35.40	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121094B	HOSE BRACKET	$41.69	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0129669A	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0129734C	BUSH	$7.83	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121070A	COOLANT PIPE	$298.84	To Order

Photo	Part No	Description	Price (each)	Stock
	47B121507B	COOLANT PIPE	$380.91	To Order

Photo	Part No	Description	Price (each)	Stock
	N91115401	SPRING BAND CLAMP	$5.39	To Order

Photo	Part No	Description	Price (each)	Stock
	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10442204	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	$1.99	IN STOCK

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
1	47B121086A	COOLANT HOSE	47B121086A COOLANT HOSE	$526.72	1	TO
2	47B121082A	COOLANT HOSE	47B121082A COOLANT HOSE	$501.77	1	TO
3	47B121078A	RETAINING PIECE	47B121078A RETAINING PIECE	$34.50	1	TO
4	47B121077A	RETAINING PIECE	47B121077A RETAINING PIECE	$35.40	1	TO
5	47B121094B	HOSE BRACKET	47B121094B HOSE BRACKET	$41.69	1	TO
6	4S0129669A	GROMMET	4S0129669A GROMMET	-	1	PE	Enquire
7	8K0129734C	BUSH	8K0129734C BUSH	$7.83	1	TO
8	47B121070A	COOLANT PIPE	47B121070A COOLANT PIPE	$298.84	1	TO
9	47B121507B	COOLANT PIPE	47B121507B COOLANT PIPE	$380.91	1	TO
13	N91115401	SPRING BAND CLAMP	N91115401 SPRING BAND CLAMP A20-32X9	$5.39	1	TO
14	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE M6X18 IN STOCK	$1.31	1	IN
15	N10442204	HEXAGON SOCKET OVAL HEAD BOLT (COMBI) IN STOCK	N10442204 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) M6X40 IN STOCK	$1.99 MSRP: ~~7.14~~ (72.1% off)	1	IN

Cooling System Water System

Lamborghini Revuelto Coupe
