Cooling System Water System

Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - COOLING SYSTEM WATER SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B121252A COOLER FOR COOLANT $1,004.85 To Order
Photo Part No Description Price (each) Stock
4S0121203C RADIATOR FAN WITH FAN RING $940.25 IN STOCK
Photo Part No Description Price (each) Stock
47B121473A BREATHER LINE $29.74 To Order
Photo Part No Description Price (each) Stock
47B121421B VALVE $39.80 To Order
Photo Part No Description Price (each) Stock
47B121437 SEALING RING $4.21 To Order
Photo Part No Description Price (each) Stock
47B121179A SPACER $13.29 To Order
Photo Part No Description Price (each) Stock
47B121180C RETURN PIPE $241.70 To Order
Photo Part No Description Price (each) Stock
47B971851 CLAMP $14.13 To Order
Photo Part No Description Price (each) Stock
5Q0906457C CONTROL VALVE $197.69 To Order
Photo Part No Description Price (each) Stock
47B121445C COOLANT HOSE $27.14 To Order
Photo Part No Description Price (each) Stock
47B121448A COOLANT HOSE $20.05 To Order
Photo Part No Description Price (each) Stock
47B121057T COOLANT HOSE $25.69 To Order
Photo Part No Description Price (each) Stock
47B121088B COOLANT HOSE $609.49 To Order
Photo Part No Description Price (each) Stock
47B121151B COOLANT PIPE $313.95 To Order
Photo Part No Description Price (each) Stock
47B121383C BRACKET $38.96 To Order
Photo Part No Description Price (each) Stock
N10017304 HEXAGON COLLAR NUT $1.77 IN STOCK
Photo Part No Description Price (each) Stock
N10714801 OVAL HEXAGON SOCKET HEAD BOLT $0.83 To Order
Photo Part No Description Price (each) Stock
N10786201 HEX SOCKET OVAL HEAD COLLARED $0.93 To Order
Photo Part No Description Price (each) Stock
N90986501 SPRING BAND CLAMP $2.29 To Order
Photo Part No Description Price (each) Stock
N91115401 SPRING BAND CLAMP $5.39 To Order
Photo Part No Description Price (each) Stock
N90687001 SPRING BAND CLAMP $7.39 IN STOCK
Photo Part No Description Price (each) Stock
N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE $1.31 IN STOCK
Photo Part No Description Price (each) Stock
N91054101 OVAL HEXAGON SOCKET HEAD BOLT $1.00 To Order

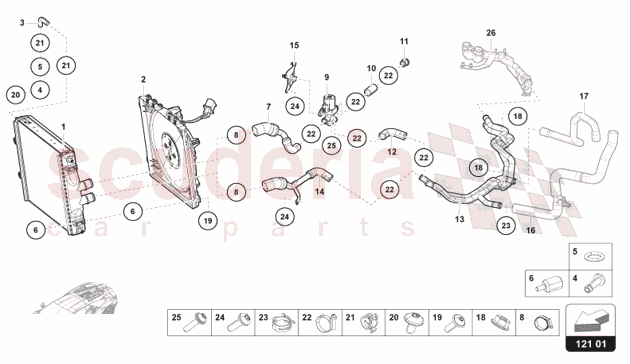

COOLING SYSTEM WATER SYSTEM of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B121252A
COOLER FOR COOLANT 		$1,004.85 1
TO
2 4S0121203C
RADIATOR FAN WITH FAN RING
400W
IN STOCK 		$940.25 1
IN
3 47B121473A
BREATHER LINE 		$29.74 1
TO
4 47B121421B
VALVE 		$39.80 1
TO
5 47B121437
SEALING RING 		$4.21 1
TO
6 47B121179A
SPACER 		$13.29 1
TO
7 47B121180C
RETURN PIPE 		$241.70 1
TO
8 47B971851
CLAMP 		$14.13 1
TO
9 5Q0906457C
CONTROL VALVE 		$197.69 1
TO
10 47B121445C
COOLANT HOSE 		$27.14 1
TO
11 47B121448A
COOLANT HOSE 		$20.05 1
TO
12 47B121057T
COOLANT HOSE 		$25.69 1
TO
13 47B121088B
COOLANT HOSE 		$609.49 1
TO
14 47B121151B
COOLANT PIPE 		$313.95 1
TO
15 47B121383C
BRACKET 		$38.96 1
TO
18 N10017304
HEXAGON COLLAR NUT
M5
IN STOCK 		$1.77 1
IN
19 N10714801
OVAL HEXAGON SOCKET HEAD BOLT
M6X18 		$0.83 1
TO
20 N10786201
HEX SOCKET OVAL HEAD COLLARED
M6X12 		$0.93 1
TO
21 N90986501
SPRING BAND CLAMP
14,5X12 		$2.29 (67.7% off) 1
TO
22 N91115401
SPRING BAND CLAMP
A20-32X9 		$5.39 1
TO
23 N90687001
SPRING BAND CLAMP
27X12
IN STOCK 		$7.39 1
IN
24 N10196103
OVAL SOCKET HEAD BOLT WITH HEX DRIVE
M6X18
IN STOCK 		$1.31 1
IN
25 N91054101
OVAL HEXAGON SOCKET HEAD BOLT
M6X25 		$1.00 (86.2% off) 1
TO
