Name: HEAD RIGHT SIDE
Rating: 5.0 (1 reviews)

Diagram
INFO

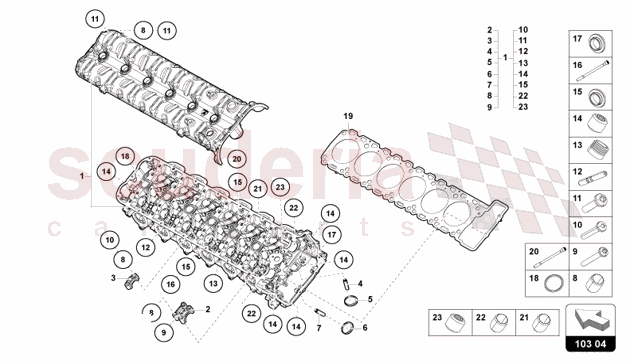

HEAD RIGHT SIDE of Lamborghini Lamborghini Revuelto Coupe

Lamborghini Revuelto Coupe - HEAD RIGHT SIDE

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	07M103064G	COMPLETE CYLINDER HEAD	$20,169.32	To Order

Photo	Part No	Description	Price (each)	Stock
	07M103953	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	07M103953A	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91020803	DOWEL SLEEVE	$2.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10405702	HEXAGON SOCKET HEAD BOLT	$0.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10709301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$0.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91071702	HEXAGON SOCKET FLAT HEAD BOLT	$0.83	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT011173	THREADED PIN	$68.97	To Order

Photo	Part No	Description	Price (each)	Stock
	07M103132A	DOWEL SLEEVE	$44.29	To Order

Photo	Part No	Description	Price (each)	Stock
	N10887401	SEALING PLUG	$4.86	To Order

Photo	Part No	Description	Price (each)	Stock
	07M103532	WASHER	$18.28	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT010100	BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING	$6.56	To Order

Photo	Part No	Description	Price (each)	Stock
	07M103532B	WASHER	$49.53	To Order

Photo	Part No	Description	Price (each)	Stock
	N90713202	SEAL RING	$4.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07M103149G	CYLINDER HEAD GASKET	$2,127.92	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT010099	BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING	$45.91	To Order

Photo	Part No	Description	Price (each)	Stock
	N91020803	DOWEL SLEEVE	$2.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT010105	WASHER	$39.01	To Order

Photo	Part No	Description	Price (each)	Stock
	N10822401	SEALING PLUG	$10.79	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	1	07M103064G	COMPLETE CYLINDER HEAD	07M103064G COMPLETE CYLINDER HEAD RIGHT	$20,169.32	1	TO
	2	07M103953	CAP	07M103953 CAP INCLUDED IN REF. 1	-	1	PE	Enquire
	3	07M103953A	CAP	07M103953A CAP INCLUDED IN REF. 1	-	1	PE	Enquire
	N91020803		DOWEL SLEEVE	from $2.44 MSRP: ~~7.07~~ (65.5% off)
8 DOWEL SLEEVE IN STOCK $2.44 MSRP: ~~7.07~~ (65.5% off) 1 IN 21 DOWEL SLEEVE IN STOCK $2.44 MSRP: ~~7.07~~ (65.5% off) 1 IN
	9	N10405702	HEXAGON SOCKET HEAD BOLT IN STOCK	N10405702 HEXAGON SOCKET HEAD BOLT INCLUDED IN REF. 1-M6X45 IN STOCK	$0.90	1	IN
	10	N10709301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10709301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD INCLUDED IN REF. 1-M6X38 IN STOCK	$0.80	1	IN
	11	N91071702	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91071702 HEXAGON SOCKET FLAT HEAD BOLT INCLUDED IN REF. 1-M6X25 IN STOCK	$0.83 MSRP: ~~7.21~~ (88.5% off)	1	IN
	12	WHT011173	THREADED PIN	WHT011173 THREADED PIN INCLUDED IN REF. 1-M8X28	$68.97	1	TO
	13	07M103132A	DOWEL SLEEVE	07M103132A DOWEL SLEEVE INCLUDED IN REF. 1	$44.29	1	TO
	14	N10887401	SEALING PLUG	N10887401 SEALING PLUG INCLUDED IN REF. 1-M12	$4.86	1	TO
	15	07M103532	WASHER	07M103532 WASHER INCLUDED IN REF. 1	$18.28	1	TO
	16	WHT010100	BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING	WHT010100 BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING M8X22-MK	$6.56	1	TO
	17	07M103532B	WASHER	07M103532B WASHER	$49.53	1	TO
	18	N90713202	SEAL RING IN STOCK	N90713202 SEAL RING 31X3 IN STOCK	$4.79	1	IN
	19	07M103149G	CYLINDER HEAD GASKET	07M103149G CYLINDER HEAD GASKET RIGHT	$2,127.92	1	TO
	20	WHT010099	BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING	WHT010099 BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING M8X22-MK	$45.91	1	TO
	22	WHT010105	WASHER	WHT010105 WASHER	$39.01	1	TO
	23	N10822401	SEALING PLUG	N10822401 SEALING PLUG M14X1,5	$10.79	1	TO

Head Right Side

Lamborghini Revuelto Coupe

Lamborghini Revuelto Coupe - HEAD RIGHT SIDE
