Electrical System 1

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Electrical System 1

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

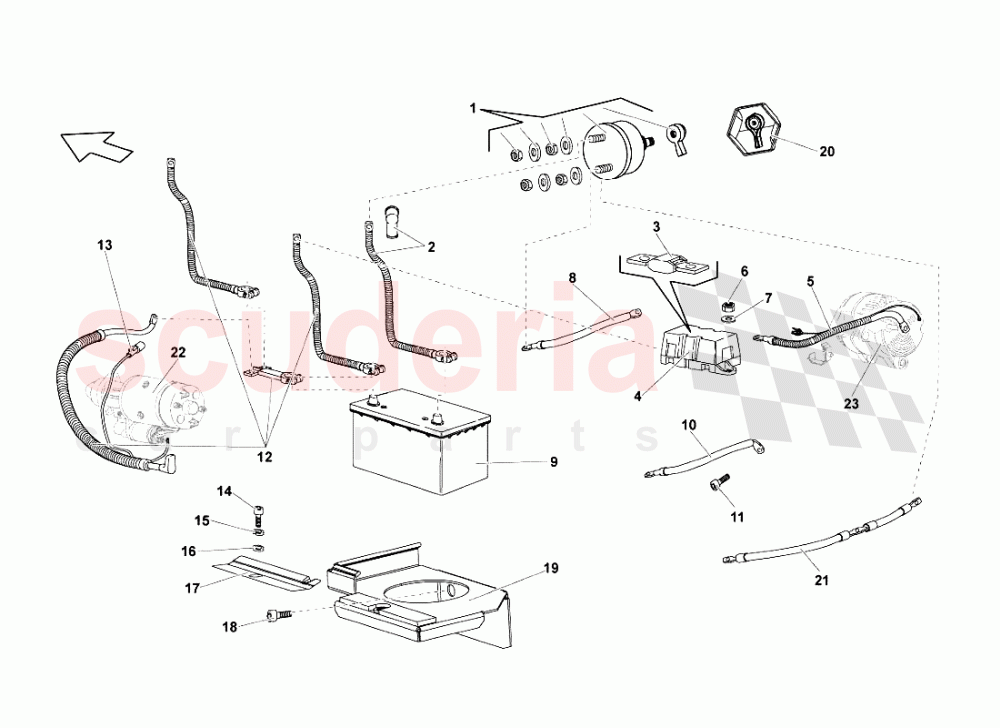

Electrical System 1 of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 0R1470113
MEGA FUSE HOLDER BOX / 250A MEGA FUSE KIT (ORDERABLE FOR CAMPAING NR L825-A.02.07) 		$20.52 (16.8% off) 1
TO
001 410915519
BATTERY ISOLATOR 		$296.22 1
TO
002 410971235D
CABLE (-) FROM BATTERY TO MAIN BATTERY SWITCH 		$96.43 1
TO
003 400937629
250A FUSE 		$16.36 1
TO
004 4B3937505
MEGA FUSE HOLDER BOX 		$22.55 1
TO
005 410971134F
CABLE FROM ALTERNATOR TO FUSE CONNECTION 		$183.89 1
TO
006 N0211963
NUT
IN STOCK 		$0.74 5
IN
007 WHT001187
WASHER
IN STOCK 		$0.80 (89% off) 1
IN
009 7P0915105
BATTERY 		$508.05 1
TO
011 N10049308
HEXAGON HEAD BOLT (COMBI)
IN STOCK 		$1.70 1
IN
012 410971097A
CABLE 		$254.18 1
TO
013 410971347A
CABLE (+50) STARTER MOTOR EXCITATION 		$1,209.46 1
TO
014 N10285602
SCREW 		$1.39 (80.7% off) 1
TO
015 WHT002962
WASHER 14X8.4X1.5
IN STOCK 		$0.32 (95.6% off) 1
IN
016 WHT001397
WASHER
IN STOCK 		$0.19 (97.4% off) 1
IN
017 7L6915138A
BRACKET 		$7.62 1
TO
018 N10005207
SCREW M8X18 		$7.36 1
TO
019 410915517A
BRACKET 		$466.30 1
TO
021 410971237A
CABLE (-) BATTERY ISOLATOR - ENGINE - CHASSIS 		$71.06 1
TO
