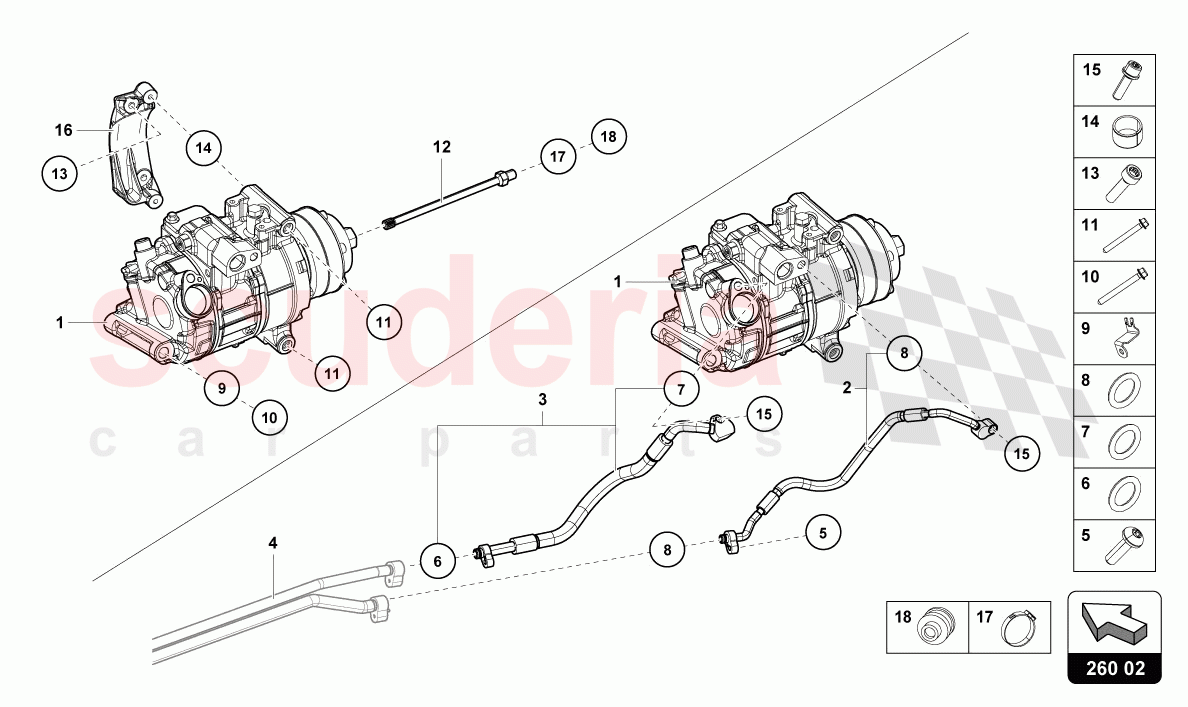

A/C COMPRESSOR of Lamborghini Lamborghini Huracan STO

Lamborghini Huracan STO - A/C COMPRESSOR

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4S0816803B	A/C COMPRESSOR	$1,615.65	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0816721E	REFRIGERANT LINE	$253.53	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0816743B	REFRIGERANT LINE	$305.39	To Order

Photo	Part No	Description	Price (each)	Stock
	N10347404	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)	$1.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	SEAL RING	$6.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8E0260749C	SEAL RING	$5.53	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0260749A	SEAL RING	$6.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	420260759C	BRACKET FOR CONNECTOR HOUSING	$10.25	To Order

Photo	Part No	Description	Price (each)	Stock
	N10636601	BOLT,HEX.HD.WITH SHOUL.(COMBI)	$35.81	To Order

Photo	Part No	Description	Price (each)	Stock
	N10636501	BOLT,HEX.HD.WITH SHOUL.(COMBI)	$4.01	To Order

Photo	Part No	Description	Price (each)	Stock
	07L260095C	INPUT SHAFT	$79.89	To Order

Photo	Part No	Description	Price (each)	Stock
	N91128701	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	03L260817	CENTRE SLEEVE	$2.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$3.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07L260885G	BRACKET FOR A/C COMPRESSOR	$16.48	To Order

Photo	Part No	Description	Price (each)	Stock
	N10207701	CLAMP	$38.23	To Order

Photo	Part No	Description	Price (each)	Stock
	079260753B	GROMMET	$13.74	IN STOCK

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	4S0816803B	A/C COMPRESSOR	4S0816803B A/C COMPRESSOR	$1,615.65	1	TO
2	4S0816721E	REFRIGERANT LINE	4S0816721E REFRIGERANT LINE	$253.53	1	TO
3	4S0816743B	REFRIGERANT LINE	4S0816743B REFRIGERANT LINE	$305.39	1	TO
5	N10347404	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION) IN STOCK	N10347404 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION) M6X35 IN STOCK	$1.06 MSRP: ~~7.25~~ (85.4% off)	4	IN
6	4E0260749B	SEAL RING IN STOCK	4E0260749B SEAL RING 13 -7X2,5 IN STOCK	$6.30 MSRP: ~~7.06~~ (10.8% off)	4	IN
7	8E0260749C	SEAL RING	8E0260749C SEAL RING 23 -8X2,4	$5.53 MSRP: ~~7.09~~ (22% off)	1	TO
8	4E0260749A	SEAL RING IN STOCK	4E0260749A SEAL RING 11X2 -5 IN STOCK	$6.52 MSRP: ~~7.06~~ (7.6% off)	2	IN
9	420260759C	BRACKET FOR CONNECTOR HOUSING	420260759C BRACKET FOR CONNECTOR HOUSING	$10.25	1	TO
10	N10636601	BOLT,HEX.HD.WITH SHOUL.(COMBI)	N10636601 BOLT,HEX.HD.WITH SHOUL.(COMBI) M8X110X80	$35.81	1	TO
11	N10636501	BOLT,HEX.HD.WITH SHOUL.(COMBI)	N10636501 BOLT,HEX.HD.WITH SHOUL.(COMBI) M8X90	$4.01	2	TO
12	07L260095C	INPUT SHAFT	07L260095C INPUT SHAFT	$79.89	1	TO
13	N91128701	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91128701 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X32	$3.03 MSRP: ~~7.14~~ (57.6% off)	2	TO
14	03L260817	CENTRE SLEEVE IN STOCK	03L260817 CENTRE SLEEVE 11 -15X6,5 IN STOCK	$2.18 MSRP: ~~7.10~~ (69.3% off)	2	IN
15	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M8X28 IN STOCK	$3.03 MSRP: ~~7.07~~ (57.1% off)	2	IN
16	07L260885G	BRACKET FOR A/C COMPRESSOR	07L260885G BRACKET FOR A/C COMPRESSOR	$16.48	2	TO
17	N10207701	CLAMP	N10207701 CLAMP 34.6X7X0.6	$38.23	1	TO
18	079260753B	GROMMET IN STOCK	079260753B GROMMET IN STOCK	$13.74	1	IN
