Timing Chain

Lamborghini Huracan Evo Coupe

Find Your Part

Lamborghini Huracan Evo Coupe - TIMING CHAIN

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
06E109465BH TIMING CHAIN $185.87 To Order
Photo Part No Description Price (each) Stock
06E109465BJ TIMING CHAIN $191.98 IN STOCK
06E109465BK TIMING CHAIN $185.87 To Order
Photo Part No Description Price (each) Stock
079109217AB CHAIN TENSIONER $206.92 IN STOCK
Photo Part No Description Price (each) Stock
079109139J SEAL $19.49 IN STOCK
Photo Part No Description Price (each) Stock
079109470 COVERING $5.66 IN STOCK
Photo Part No Description Price (each) Stock
079109180A AXIAL BEARING $21.55 To Order
Photo Part No Description Price (each) Stock
N91129001 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD $5.07 To Order
Photo Part No Description Price (each) Stock
N90888502 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $2.29 To Order
Photo Part No Description Price (each) Stock
N90962301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $7.62 To Order
Photo Part No Description Price (each) Stock
N90954903 HEX SOCKET COUNTERSUNK BOLT $0.80 To Order
Photo Part No Description Price (each) Stock
06E109077N CHAIN SPROCKET $233.81 To Order
Photo Part No Description Price (each) Stock
079109224E BEARING PIN $92.48 To Order
Photo Part No Description Price (each) Stock
079109224F BEARING PIN $101.80 To Order
Photo Part No Description Price (each) Stock
079109180D AXIAL BEARING $10.96 To Order
Photo Part No Description Price (each) Stock
079109469AL GUIDE RAIL $30.87 IN STOCK
Photo Part No Description Price (each) Stock
079109469AM GUIDE RAIL $30.80 IN STOCK
Photo Part No Description Price (each) Stock
079109507AP CHAIN TENSIONER $141.10 IN STOCK
Photo Part No Description Price (each) Stock
079109139L SEAL $15.48 IN STOCK
Photo Part No Description Price (each) Stock
N10124304 OVAL HEXAGON SOCKET HEAD BOLT $1.51 IN STOCK
Photo Part No Description Price (each) Stock
079109247P BEARING BUSH $13.74 To Order
Photo Part No Description Price (each) Stock
079109218AB CHAIN TENSIONER $175.70 IN STOCK
Photo Part No Description Price (each) Stock
079109139K SEAL $19.49 IN STOCK

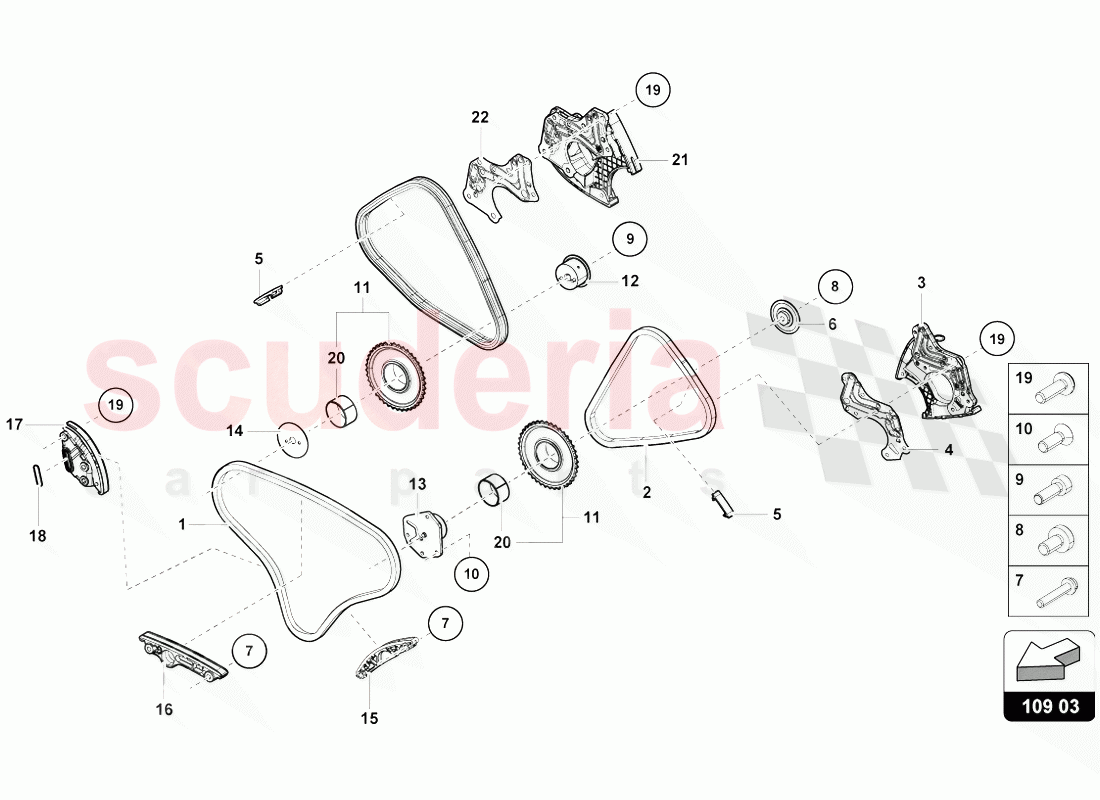

TIMING CHAIN of Lamborghini Lamborghini Huracan Evo Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 06E109465BH
TIMING CHAIN
UPPER CENTRE 		$185.87 1
TO
2 06E109465BJ
TIMING CHAIN
LEFT
IN STOCK 		$191.98 1
IN
2 06E109465BK
TIMING CHAIN
RIGHT 		$185.87 1
TO
3 079109217AB
CHAIN TENSIONER
LEFT
IN STOCK 		$206.92 -
IN
4 079109139J
SEAL
LEFT
IN STOCK 		$19.49 1
IN
5 079109470
COVERING
IN STOCK 		$5.66 -
IN
6 079109180A
AXIAL BEARING 		$21.55 1
TO
7 N91129001
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
M7X36 		$5.07 (28% off) 4
TO
8 N90888502
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X16 		$2.29 (67.9% off) 1
TO
9 N90962301
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M10X30 		$7.62 1
TO
10 N90954903
HEX SOCKET COUNTERSUNK BOLT
M6X18 		$0.80 (89% off) 1
TO
11 06E109077N
CHAIN SPROCKET
Z=24 		$233.81 2
TO
12 079109224E
BEARING PIN
RIGHT 		$92.48 1
TO
13 079109224F
BEARING PIN
LEFT 		$101.80 1
TO
14 079109180D
AXIAL BEARING 		$10.96 1
TO
15 079109469AL
GUIDE RAIL
IN STOCK 		$30.87 1
IN
16 079109469AM
GUIDE RAIL
IN STOCK 		$30.80 1
IN
17 079109507AP
CHAIN TENSIONER
IN STOCK 		$141.10 -
IN
18 079109139L
SEAL
IN STOCK 		$15.48 1
IN
19 N10124304
OVAL HEXAGON SOCKET HEAD BOLT
M6X20
IN STOCK 		$1.51 21
IN
20 079109247P
BEARING BUSH 		$13.74 1
TO
21 079109218AB
CHAIN TENSIONER
IN STOCK 		$175.70 -
IN
22 079109139K
SEAL
RIGHT
IN STOCK 		$19.49 1
IN
