Front Driveshaft - Suspension Arms

Lamborghini Huracan LP610 Coupe

Find Your Part

Lamborghini Huracan LP610 Coupe - FRONT DRIVESHAFT - SUSPENSION ARMS

Look at the exploded parts diagram to find the part you need:
  • Reposition the diagram by dragging it across.
  • Zoom in & out of the diagram by scrolling or using the and buttons
  • Click on a hotspot in the parts diagram to locate the part you need.
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
We recommend that you view the diagram page in 'landscape' view.
Part Key
IN
In Stock
AS
Arriving Soon
TD
To Order
PE
Please Enquire

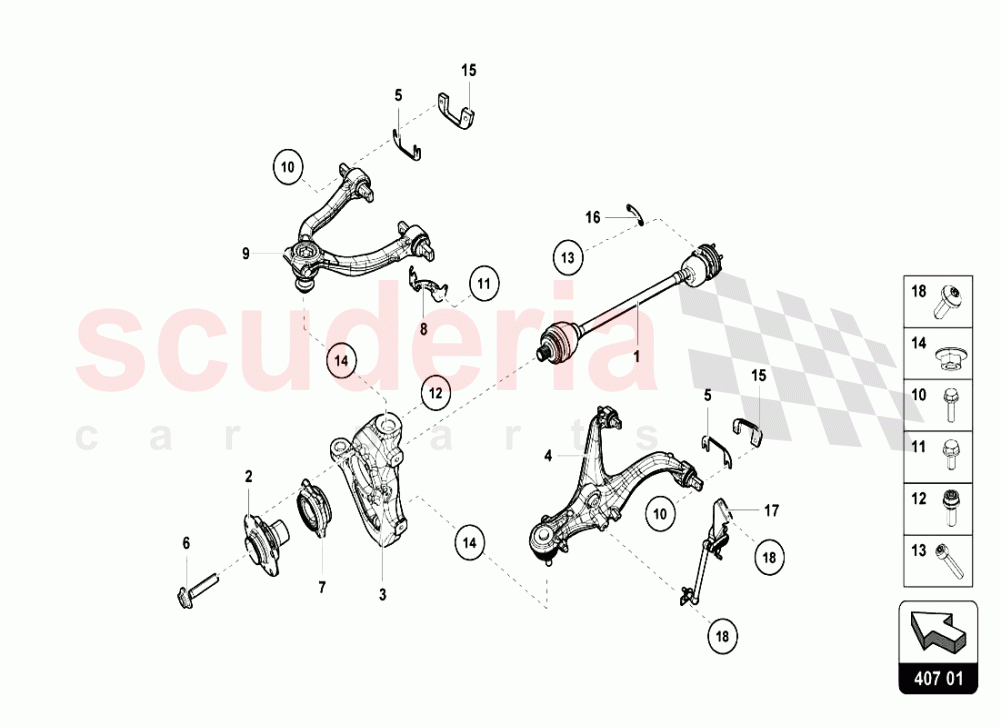

FRONT DRIVESHAFT - SUSPENSION ARMS of Lamborghini Lamborghini Huracan LP610 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4T0407271B
FRONT OMOKINETIC DRIVE SHAFT
IN STOCK 		$706.68 2
IN
002 4D0407613E
WHEEL HUB
IN STOCK 		$292.95 2
IN
003 4T0407246B
FRONT RIGHT HUB CARRIER (CONTACT YOUR AREA MANAGER) 		$571.39 1
IN
003 4T0407245B
FRONT LEFT HUB CARRIER (CONTACT YOUR AREA MANAGER) 		$571.39 1
IN
004 4T0407152E
TRACK CONTROL ARM LB724 		$1,001.79 1
IN
004 4T0407151E
TRACK CONTROL ARM LB724 		$1,001.79 1
IN
005 4S0407203D
BALANCING PLATE 		$9.54 4
IN
005 4S0407203C
BALANCING PLATE 		$9.11 4
IN
005 4S0407203G
BALANCING PLATE 		$9.54 4
IN
005 4S0407203E
BALANCING PLATE 		$9.54 4
IN
006 4B0407643A
HEXAGON HEAD BOLT (M16X72)
IN STOCK 		$18.77 2
IN
007 4E0407625E
DOUBLE (ANGLED) BALL BEARING WITH FLANGE
IN STOCK 		$230.08 2
IN
008 4S0611841G
LH BRACKET 		$10.97 1
IN
008 4S0611842G
RH BRACKET 		$10.97 1
IN
009 4T0407506A
RH UPPER ARM (CONTACT YOUR AREA MANAGER) 		$804.21 1
IN
009 4T0407505A
LH UPPER ARM 		$764.50 1
IN
010 N10706902
HEXAGON FLANGE SCREW 		$8.00 8
IN
011 WHT007142
SCREW (M10X40) 		$10.13 8
IN
012 WHT000237
BALL SCREW 		$7.66 8
IN
013 N91108201
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		$4.14 8
IN
014 WHT004898
HEXAGON COLLAR NUT SELF-LOCKING
IN STOCK 		$7.40 4
IN
015 4T0806569
BALANCING PLATE 		$58.72 4
IN
016 420407357
SPACER 		$2.59 (63.4% off) 4
IN
017 4T0941274A
RH HEADLAMP SENSOR 		$127.96 1
IN
017 4T0941273A
LH HEADLAMP SENSOR 		$127.96 1
IN
018 N10405604
Oval Hexagon Socket Head Bolt (m6x14) 		$2.01 6
IN
