Air Conditioning System 2

Lamborghini Gallardo (2006-2007)

Find Your Part

Lamborghini Gallardo (2006-2007) - Air Conditioning System 2

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
400260741 PIPE $179.97 To Order
Photo Part No Description Price (each) Stock
400820194 DEHYDRATOR FILTER (INCLUDES REF. 14 ) $199.46 IN STOCK
Photo Part No Description Price (each) Stock
N0903411 SCREW (M6X62.00) $3.09 To Order
Photo Part No Description Price (each) Stock
400260740A PIPE $221.35 To Order
Photo Part No Description Price (each) Stock
400260740 PIPE $342.85 To Order
Photo Part No Description Price (each) Stock
400819270 LH PIPE $58.33 To Order
Photo Part No Description Price (each) Stock
400819269 RH PIPE $56.61 To Order
Photo Part No Description Price (each) Stock
N0245107 CLAMP $4.86 To Order
Photo Part No Description Price (each) Stock
400819372 SLEEVE $13.74 To Order
Photo Part No Description Price (each) Stock
400820665 PIPE $92.48 To Order
Photo Part No Description Price (each) Stock
8A0260749AJ O-RING $5.27 To Order
Photo Part No Description Price (each) Stock
8E0260749C SEAL RING $5.53 To Order
Photo Part No Description Price (each) Stock
4E0260749A SEAL RING $6.52 IN STOCK
Photo Part No Description Price (each) Stock
8E0260749C SEAL RING $5.53 To Order
Photo Part No Description Price (each) Stock
8A0260749AH O-RING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
8A0260749AK O-RING $1.97 IN STOCK
Photo Part No Description Price (each) Stock
3R0959126 PRESSURE SENSOR $120.60 To Order
Photo Part No Description Price (each) Stock
8Z0820535 EXTERNAL TEMPERATURE SENSOR $38.83 To Order
Photo Part No Description Price (each) Stock
400820853A PLUG $9.39 To Order
Photo Part No Description Price (each) Stock
400820855 VALVE $23.45 To Order
Photo Part No Description Price (each) Stock
400820853 PLUG $9.39 To Order
Photo Part No Description Price (each) Stock
400819268A PIPE $40.19 To Order
Photo Part No Description Price (each) Stock
N0245203 CLAMP $6.62 To Order
Photo Part No Description Price (each) Stock
400121079A BRACKET $22.14 To Order
Photo Part No Description Price (each) Stock
N90367502 NUT $0.74 To Order
Photo Part No Description Price (each) Stock
N90533002 SCREW $1.70 To Order
Photo Part No Description Price (each) Stock
400121068 BRACKET $21.01 To Order
Photo Part No Description Price (each) Stock
400819377 PIPE $147.10 To Order
Photo Part No Description Price (each) Stock
400260759F BRACKET $442.68 To Order
Photo Part No Description Price (each) Stock
400820955A COVER $75.26 To Order
Photo Part No Description Price (each) Stock
WHT001190 ROUND HD. SCREW $0.57 IN STOCK
Photo Part No Description Price (each) Stock
400820099A GASKET $35.09 To Order
Photo Part No Description Price (each) Stock
400819028A GASKET $33.96 To Order
Photo Part No Description Price (each) Stock
8E0260759AP BRACKET FOR REFRIGERANT HOSE $4.79 To Order
Photo Part No Description Price (each) Stock
N10470703 ROUND HD. SCREW $2.03 IN STOCK
Photo Part No Description Price (each) Stock
400820536A BRACKET $11.76 To Order
Photo Part No Description Price (each) Stock
N0454281 CLIP $0.90 IN STOCK
Photo Part No Description Price (each) Stock
N10405502 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
N0903782 SCREW $1.51 To Order

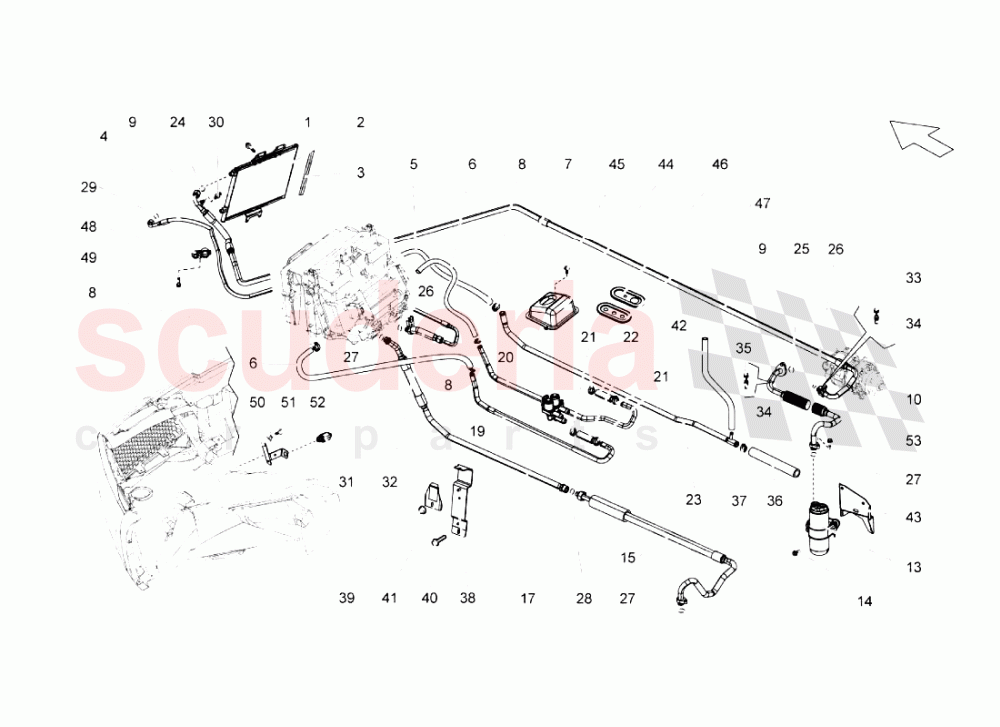

Air Conditioning System 2 of Lamborghini Lamborghini Gallardo (2006-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 N10082911
SCREW M6X16
IN STOCK 		$0.67 6
IN
02 400260401B
A/C CONDENSER
IN STOCK 		$658.00 1
IN
03 400820261
GASKET 		$148.44 2
TO
04 400260709
PIPE 		$1,027.18 1
TO
05 400819371
SLEEVE 		$139.91 1
TO
06 400819370
SLEEVE 		$16.36 2
TO
07 N10166201
CLAMP 		$1.16 2
TO
08 N10255601
CLAMP
IN STOCK 		$1.92 (73% off) 4
IN
09 400260701B
PIPE 		$781.55 1
TO
10 400260741
PIPE 		$179.97 1
TO
13 400820194
DEHYDRATOR FILTER (INCLUDES REF. 14 )
IN STOCK 		$199.46 1
IN
14 N0903411
SCREW (M6X62.00) 		$3.09 3
TO
15 400260740A
PIPE 		$221.35 1
TO
17 400260740
PIPE 		$342.85 1
TO
19 400819270
LH PIPE 		$58.33 1
TO
20 400819269
RH PIPE 		$56.61 1
TO
21 N0245107
CLAMP 		$4.86 4
TO
22 400819372
SLEEVE 		$13.74 2
TO
23 400820665
PIPE 		$92.48 1
TO
24 8A0260749AJ
O-RING 		$5.27 1
TO

8E0260749C

SEAL RING

from $5.53 (22% off)

26 4E0260749A
SEAL RING
IN STOCK 		$6.52 (7.6% off) 2
IN
28 8A0260749AH
O-RING
IN STOCK 		$0.41 (94.4% off) 1
IN
29 8A0260749AK
O-RING
IN STOCK 		$1.97 1
IN
30 3R0959126
PRESSURE SENSOR 		$120.60 1
TO
31 8Z0820535
EXTERNAL TEMPERATURE SENSOR 		$38.83 1
TO
33 400820853A
PLUG 		$9.39 1
TO
34 400820855
VALVE 		$23.45 2
TO
35 400820853
PLUG 		$9.39 1
TO
36 400819268A
PIPE 		$40.19 1
TO
37 N0245203
CLAMP 		$6.62 2
TO
38 400121079A
BRACKET 		$22.14 2
TO
39 N90367502
NUT 		$0.74 4
TO
40 N90533002
SCREW 		$1.70 (76.1% off) 4
TO
41 400121068
BRACKET 		$21.01 2
TO
42 400819377
PIPE 		$147.10 1
TO
43 400260759F
BRACKET 		$442.68 1
TO
44 400820955A
COVER 		$75.26 1
TO
45 WHT001190
ROUND HD. SCREW
IN STOCK 		$0.57 2
IN
46 400820099A
GASKET 		$35.09 1
TO
47 400819028A
GASKET 		$33.96 1
TO
48 8E0260759AP
BRACKET FOR REFRIGERANT HOSE 		$4.79 1
TO
49 N10470703
ROUND HD. SCREW
IN STOCK 		$2.03 (71.5% off) 1
IN
50 400820536A
BRACKET 		$11.76 1
TO
51 N0454281
CLIP
IN STOCK 		$0.90 (87.6% off) 2
IN
52 N10405502
SCREW 		$0.61 2
TO
53 N0903782
SCREW 		$1.51 4
TO
