Name: Vacuum System 2
Rating: 4.0 (1 reviews)

Find Your Part

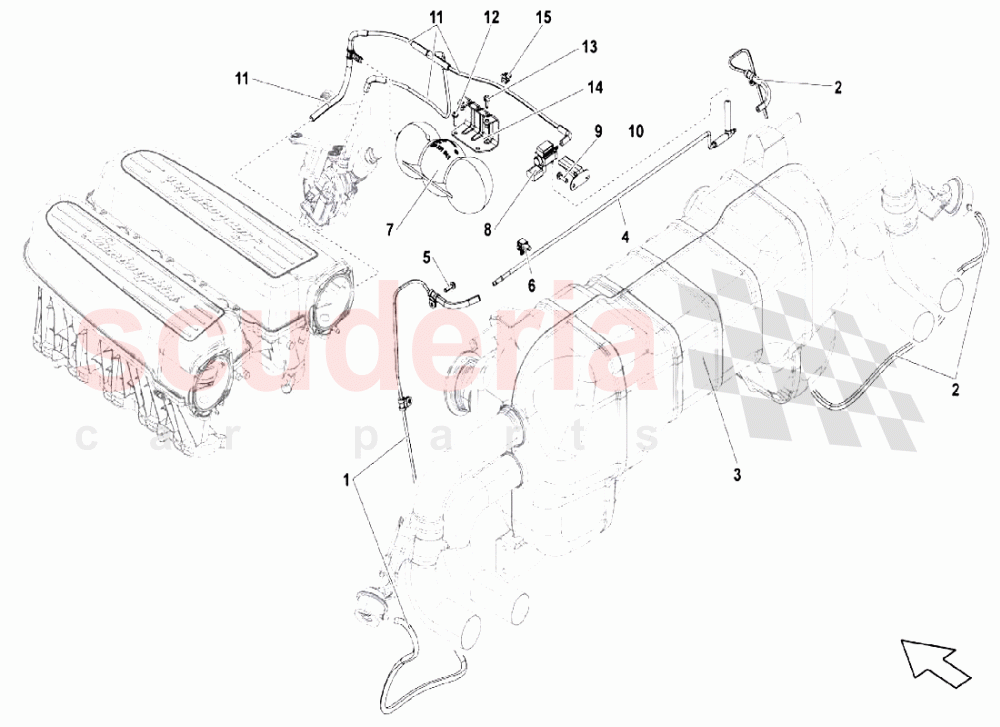

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	001	400131055	LH PIPE	400131055 LH PIPE	$68.59	1	TO
	002	400131056	RH PIPE	400131056 RH PIPE	$68.59	1	TO
	005	4E0831701	Screw M6X13 IN STOCK	4E0831701 Screw M6X13 IN STOCK	$0.96	4	IN
	006	8D0611797D	BRACKET	8D0611797D BRACKET	$5.66	3	TO
	007	420131541	VACUUM RESERVOIR	420131541 VACUUM RESERVOIR	$58.65	1	TO
	008	037906283C	SOLENOID VALVE	037906283C SOLENOID VALVE	$119.66	1	TO
	N90939303		HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING	from $2.03 MSRP: ~~7.30~~ (72.2% off)
009 HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING $2.03 MSRP: ~~7.30~~ (72.2% off) 2 TO 013 HEXAGON SOCKET OVAL HEAD BOLT (COMBI), SELF-LOCKING $2.03 MSRP: ~~7.30~~ (72.2% off) 2 TO
	010	400864107A	BRACKET	400864107A BRACKET	$30.81	1	TO
	011	400131386	HOSE	400131386 HOSE	$44.08	1	TO
	012	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.51	2	IN
	014	420809163	BRACKET	420809163 BRACKET	$69.88	1	TO
	015	N90666101	CABLE TIES	N90666101 CABLE TIES	$1.00 MSRP: ~~7.32~~ (86.3% off)	3	TO
