Camshaft.valves 1

Lamborghini Gallardo LP550 Coupe

Find Your Part

Lamborghini Gallardo LP550 Coupe - Camshaft.valves 1

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

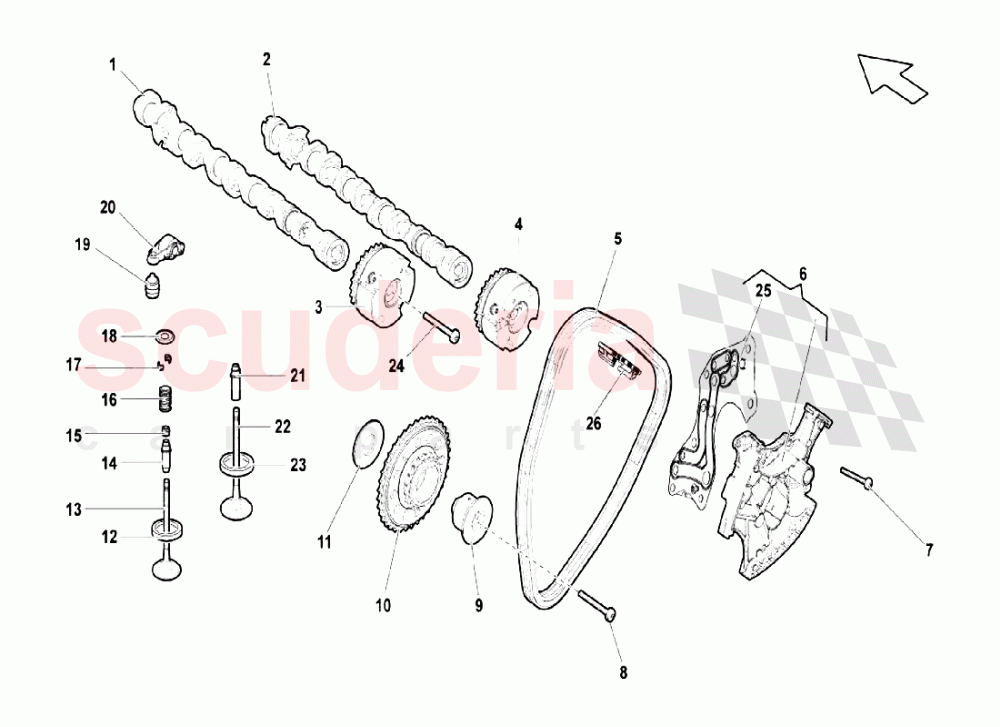

Camshaft.valves 1 of Lamborghini Lamborghini Gallardo LP550 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 07L109101BH
INTAKE CAMSHAFT - 		$1,171.68 1
TO
002 07L109102AL
EXHAUST CAMSHAFT - 		$1,171.68 1
TO
003 07L109083H
CAMSHAFT ADJUSTER UNIT 		$554.33 1
TO
004 07L109084B
Camshaft Adjuster Unit (outlet) 		$1,056.09 1
TO
004 07L109084G
CAMSHAFT ADJUSTER UNIT
IN STOCK 		$572.57 1
IN
005 06E109465BK
TIMING CHAIN 		$185.87 1
TO
006 079109218S
CHAIN TIGHTENER - 		$500.47 1
TO
007 N10124304
OVAL HEXAGON SOCKET HEAD BOLT
IN STOCK 		$1.51 6
IN
008 N10660901
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$6.71 1
IN
009 06E109220A
BEARING PIN
IN STOCK 		$89.70 1
IN
010 06E109077E
RIGHT SUPPORT - 		$1,222.89 1
TO
011 079109180B
THRUST BEARING - 		$6.30 1
TO
012 06D103431M
EXHAUST VALVE SEAT - 		$18.82 1
TO
013 079109601B
INTAKE VALVE - 		$53.08 10
TO
015 057109675
VALVE STEM SEAL
IN STOCK 		$29.45 20
IN
016 06E109623
SPRING 		$46.75 20
TO
017 036109651
COTTER, SPLIT 		$2.72 40
TO
018 06E109641A
SPRING DISC 		$18.15 20
TO
019 022109423C
HYDRAULIC ELEMENT -
IN STOCK 		$21.55 20
IN
020 079109409B
ROLLER ROCKER ARM 		$87.21 20
TO
022 06D109611H
EXHAUST VALVE 		$996.98 10
TO
023 079103441D
INTAKE VALVE SEAT - 		$18.82 10
TO
024 N91042802
FLAT HEAD MULTI-POINT SOCKET BOLT
IN STOCK 		$6.17 2
IN
025 079109139K
SEAL
IN STOCK 		$19.49 1
IN
026 079109470
COVERING
IN STOCK 		$5.66 1
IN
